FPV Drone Kit Price List

7" · 10" · 13" · 15" complete build kits — components, specs & pricing

Xzabc Group
Web: www.xzabc.com
WhatsApp / WeChat / Tel: +86 135 30020015
Email: [email protected] · Contact: Ethan
7-INCH

Manta X7 Kit

Racing / freestyle 7-inch build on 6S

Complete kit price
$300 USD
Manta X7 7-inch frame
Frame

Manta X7 7-inch frame

$49.29
  • 7-inch carbon frame
  • Manta X7 airframe

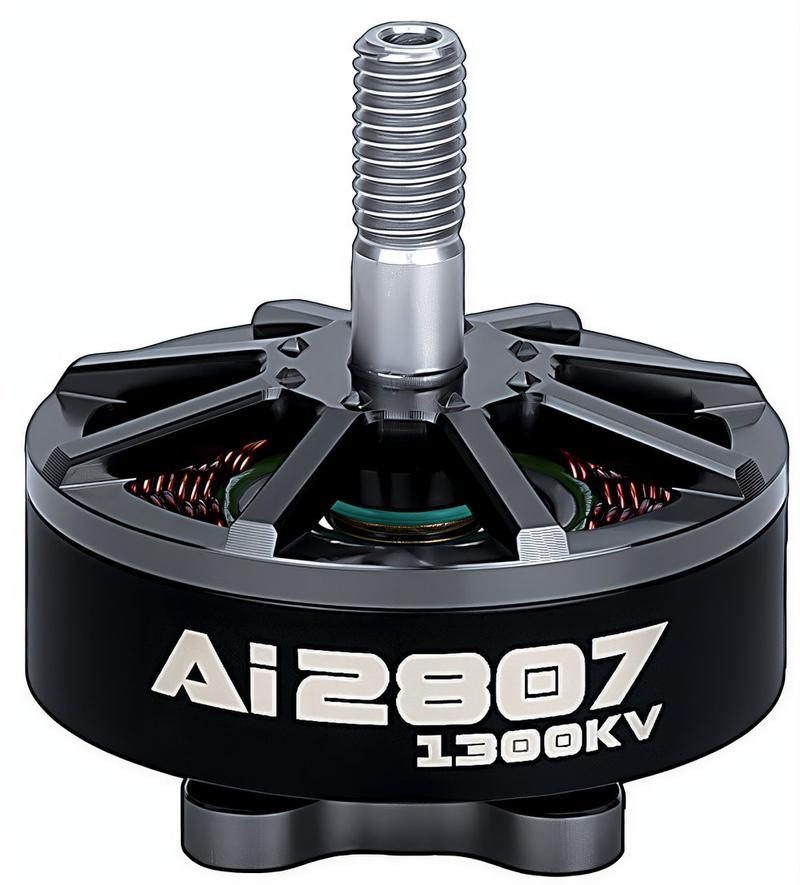

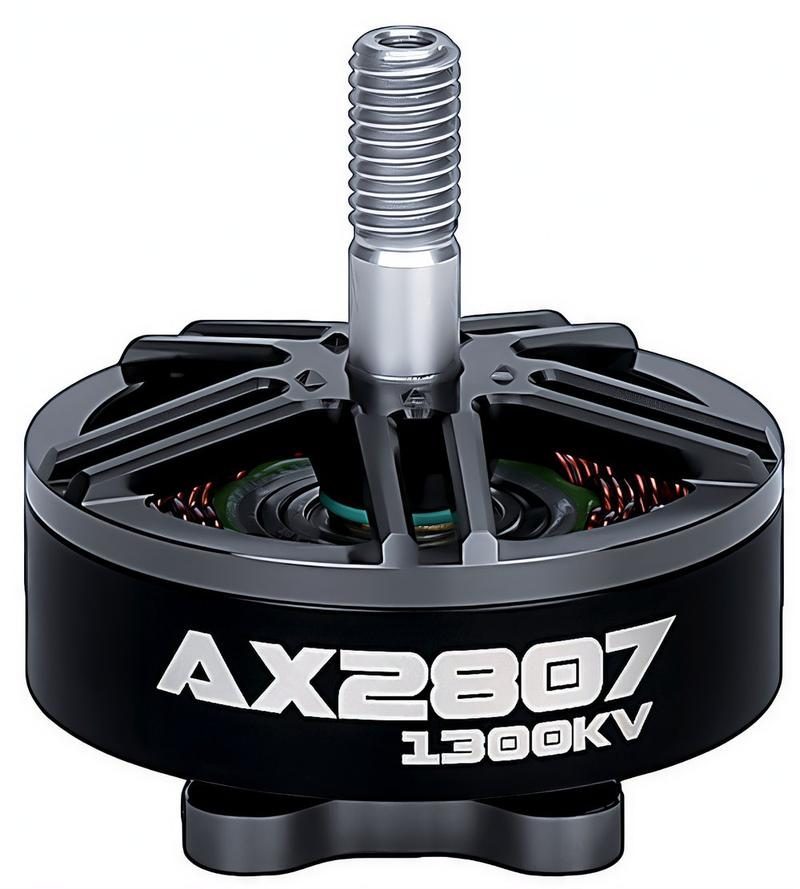

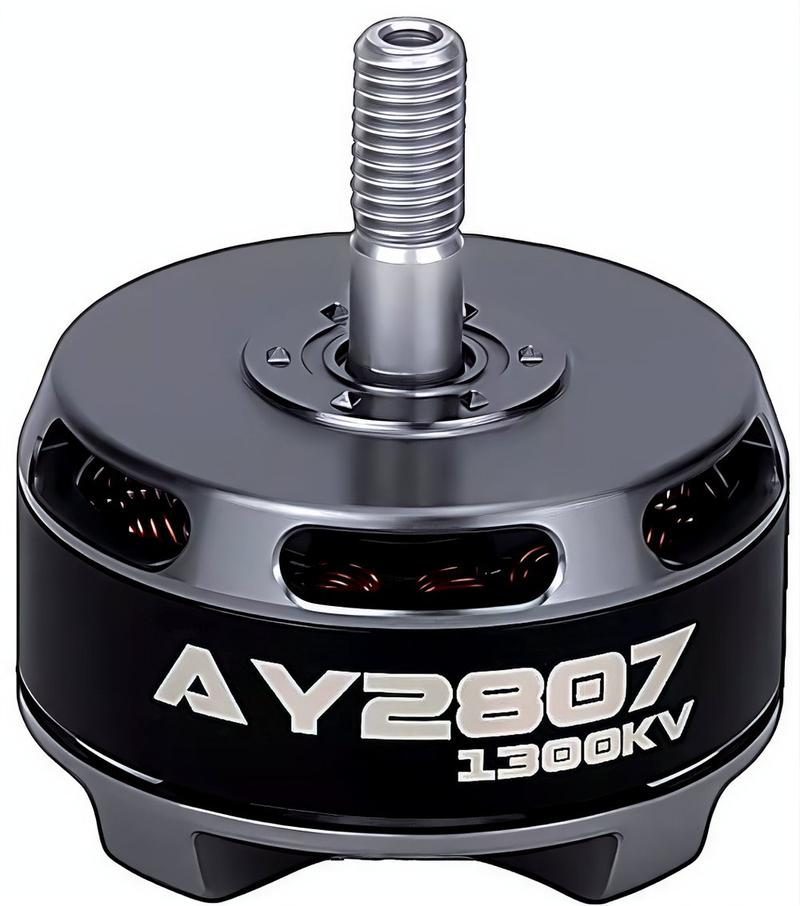

2807 · 1300KV
Motor

2807 · 1300KV

$81.43
  • KV: 1300 · Rated 6S
  • No-load 1.06A/10V · 77mOhm
  • Max current 45.4A · 1059W
  • Max thrust 2.4 kg
  • Weight: 47g
  • Props: 7040 / 7042
ECO F405
Flight Controller

ECO F405

$75.00
  • FW: Bluejay_QH30 (default)
  • Current ratio: 200
  • Input: 4-6S
  • Size: 44.8 x 43 x 6 mm
  • Continuous: 60A / Burst: 70A
  • Mount: 30.5 x 30.5 mm
  • Weight: 13.5 g

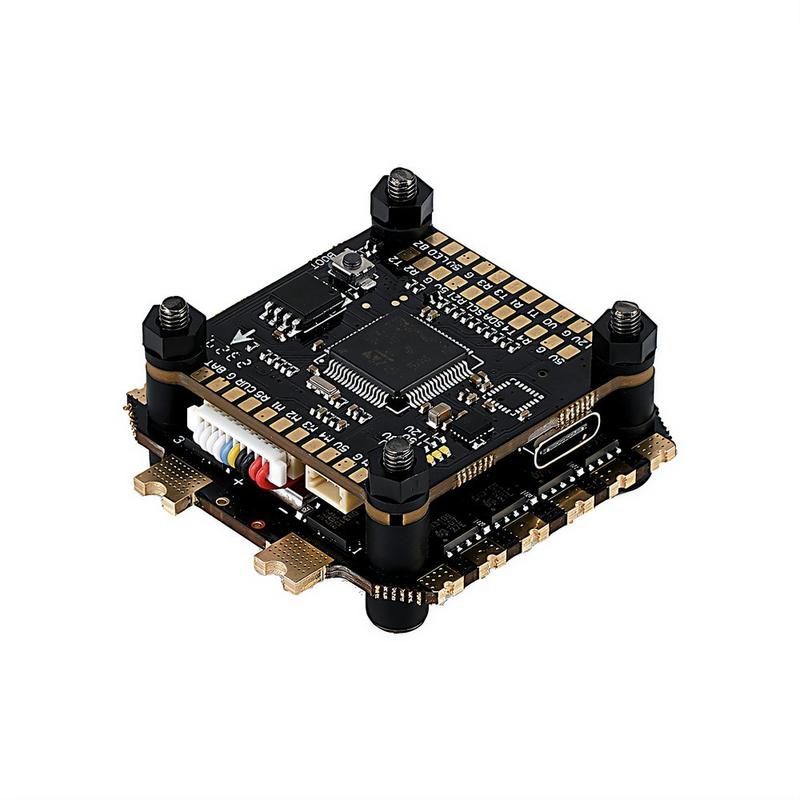

Argus ECO 60A
ESC

Argus ECO 60A

Included
  • MCU: STM32F405RGT6
  • Gyro: ICM42688P
  • Barometer: Yes
  • Input: 4-8S
  • BEC: 5V/3A · 12V/2A
  • Size: 36 x 36 x 6 mm
  • OSD · BlackBox 16M · 5x UART
  • Mount: 30.5 x 30.5 mm · 7 g
C2 FPV Camera
Camera

C2 FPV Camera

$12.64
  • Sensor: 1/3" CMOS
  • Resolution: 1200TVL
  • Lens: 2.1 mm
  • PAL / NTSC
  • Voltage: DC 5-30 V
  • Weight: 6 g

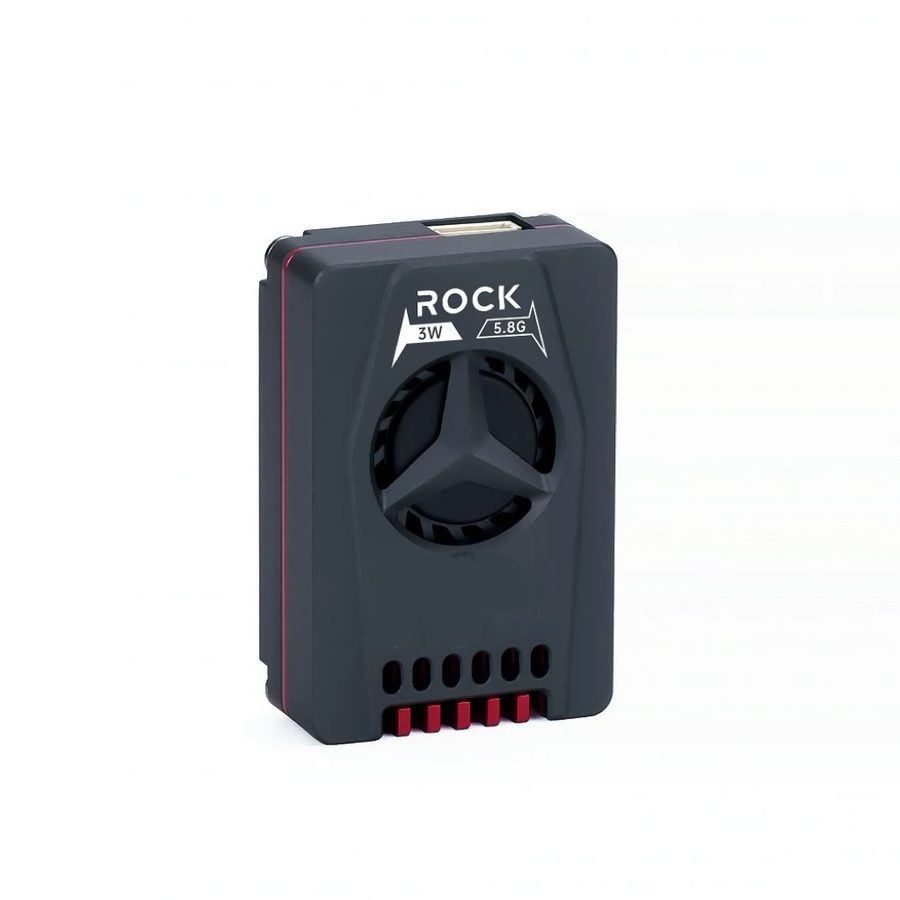

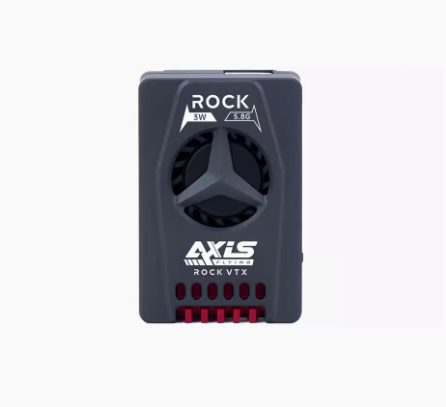

5.8G 3W · Dual-core w/ fan
Video Transmitter

5.8G 3W · Dual-core w/ fan

$61.07
  • Output: 0/400/800/1500/2500/Max 3000 mW
  • 40CH (A-B-E-F-R) · MMCX
  • Dual button / OSD
  • Current <=450mA@12V (800mW)
  • Mount: 20 x 20 mm
  • NTSC/PAL auto
  • Weight: 23 g (no antenna)
ELRS 915MHz · Single antenna
Receiver

ELRS 915MHz · Single antenna

$11.79
  • Chip: ESP32
  • Supply: 5V · CSRF
  • Freq: 915 / 868 MHz
  • Size: 12 x 12 x 3 mm
  • Weight: 0.6 g
  • IPEX1 · Telemetry <17dBm
  • WIFI firmware update
Lollipop 4+ Long 150mm
Antenna

Lollipop 4+ Long 150mm

$6.43
  • Freq: 5500-6000 MHz
  • Polarization: RHCP
  • Gain: 3.5 dBi
  • Impedance: 50 Ohm
  • VSWR <= 1.5 @5800MHz
  • Max power: 50 W
  • Length: 150 mm
7 x 4 x 3 (7040)
Propeller

7 x 4 x 3 (7040)

$2.36
  • Model: 7040 · 3 blades
  • Material: fiberglass nylon
  • Pitch: 5 inch
  • Center hole: 5 mm
  • Weight: 16.8 g
10-INCH

Manta X10 Kit

Long-range 10-inch build on 6S

Complete kit price
$315 USD

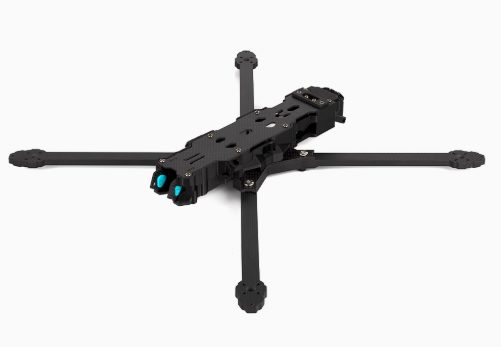

Manta X10 10-inch frame
Frame

Manta X10 10-inch frame

$49.29
  • 10-inch carbon frame
  • Manta X10 airframe

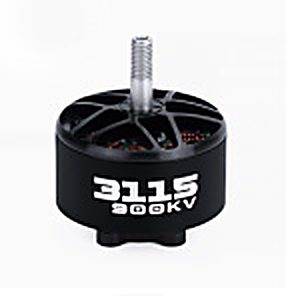

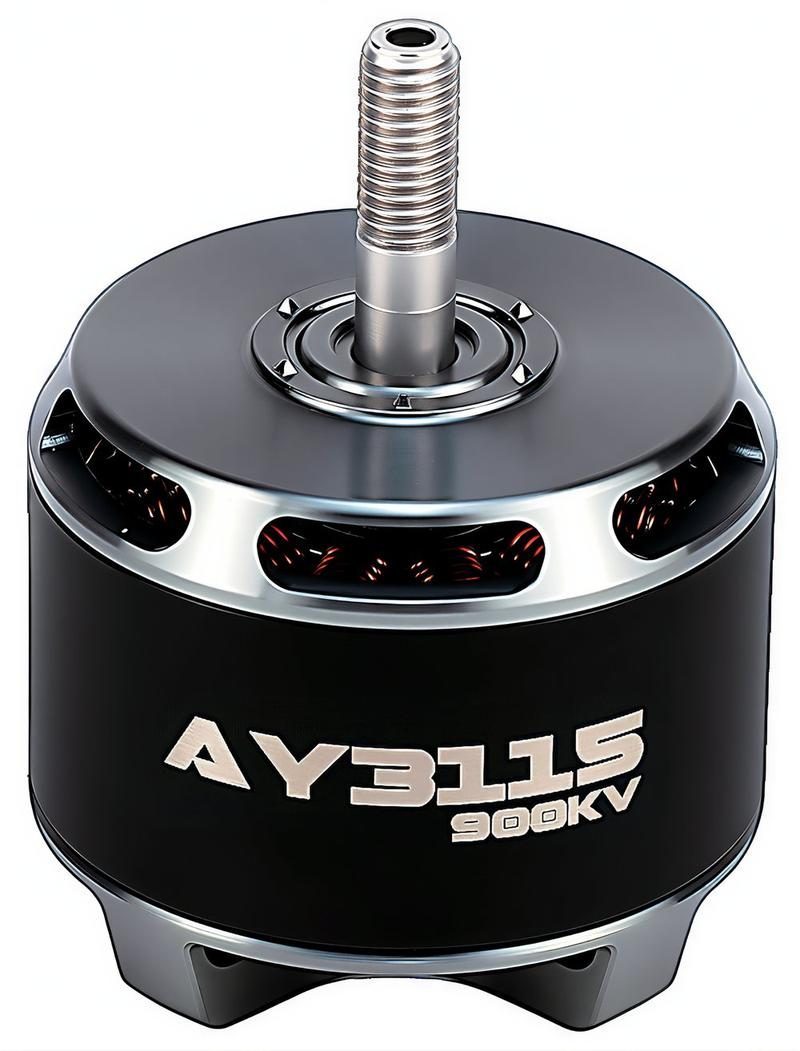

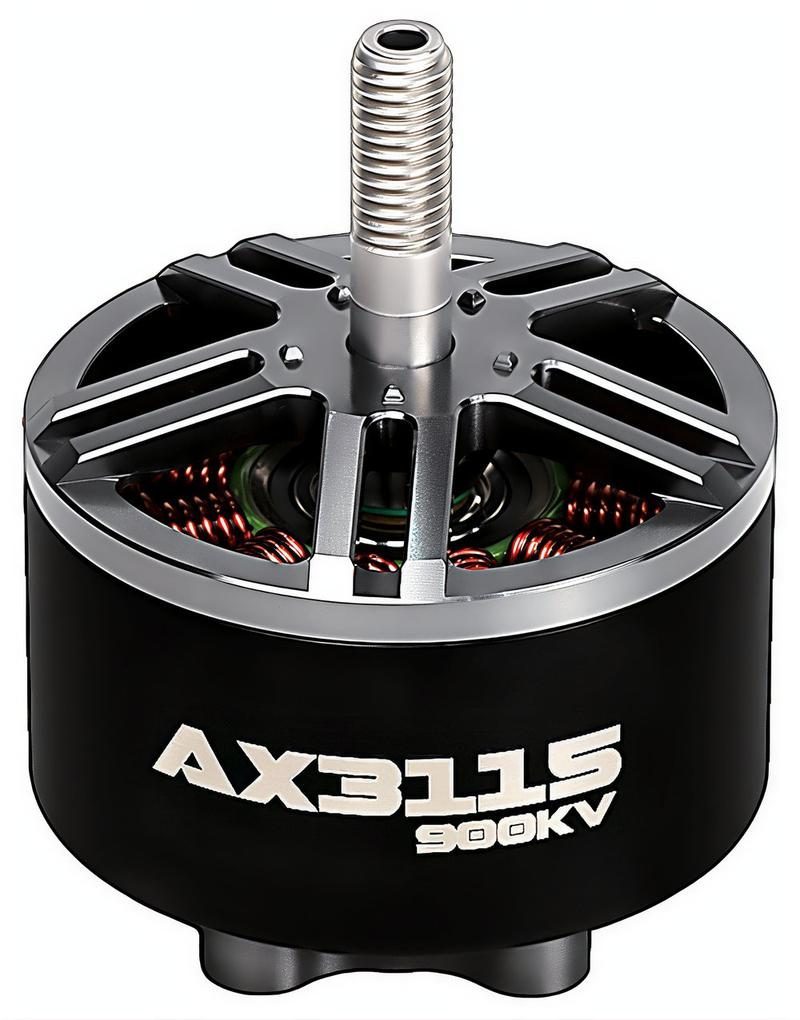

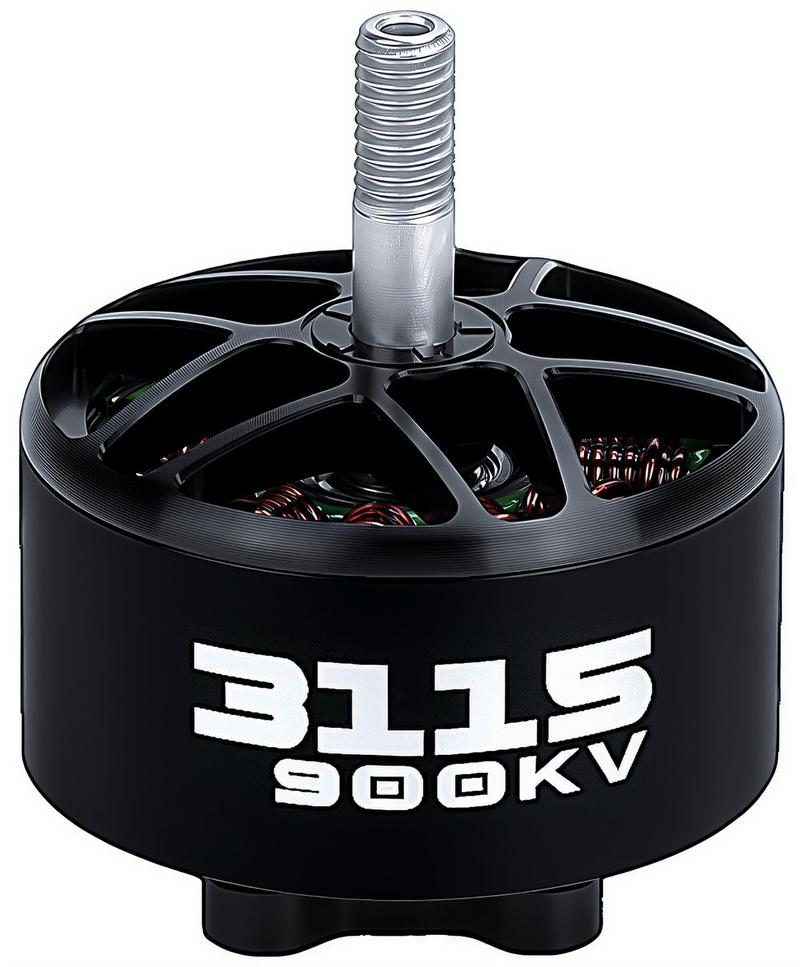

3115 · 900KV
Motor

3115 · 900KV

$90.00
  • KV: 900 · Rated 3-6S
  • No-load 1.28A/12V · 38mOhm
  • Max current 64.7A · 1617W
  • Max thrust: 4185 g
  • Shaft: 5 mm · Weight 112.3g
  • Size: D37.1 x 32.1 mm
ECO F405
Flight Controller

ECO F405

$75.00
  • FW: Bluejay_QH30 (default)
  • Current ratio: 200
  • Input: 4-6S
  • Size: 44.8 x 43 x 6 mm
  • Continuous: 60A / Burst: 70A
  • Mount: 30.5 x 30.5 mm
  • Weight: 13.5 g
Argus ECO 60A
ESC

Argus ECO 60A

Included
  • MCU: STM32F405RGT6
  • Gyro: ICM42688P
  • Barometer: Yes
  • Input: 4-8S
  • BEC: 5V/3A · 12V/2A
  • Size: 36 x 36 x 6 mm
  • OSD · BlackBox 16M · 5x UART
  • Mount: 30.5 x 30.5 mm · 7 g

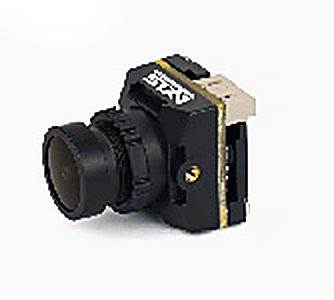

C2 1500TVL Camera
Camera

C2 1500TVL Camera

$12.64
  • Sensor: 1/3" CMOS
  • Resolution: 1200TVL
  • Lens: 2.1 mm
  • PAL / NTSC
  • Voltage: DC 5-30 V
  • Weight: 6 g
5.8G 3W · Dual-core w/ fan
Video Transmitter

5.8G 3W · Dual-core w/ fan

$61.07
  • Output: 0/400/800/1500/2500/Max 3000 mW
  • 40CH (A-B-E-F-R) · MMCX
  • Dual button / OSD
  • Current <=450mA@12V (800mW)
  • Mount: 20 x 20 mm
  • NTSC/PAL auto
  • Weight: 23 g (no antenna)
ELRS 915MHz · Single antenna
Receiver

ELRS 915MHz · Single antenna

$11.79
  • Chip: ESP32
  • Supply: 5V · CSRF
  • Freq: 915 / 868 MHz
  • Size: 12 x 12 x 3 mm
  • Weight: 0.6 g
  • IPEX1 · Telemetry <17dBm
  • WIFI firmware update
Lollipop 4+ Long 150mm
Antenna

Lollipop 4+ Long 150mm

$6.43
  • Freq: 5500-6000 MHz
  • Polarization: RHCP
  • Gain: 3.5 dBi
  • Impedance: 50 Ohm
  • VSWR <= 1.5 @5800MHz
  • Max power: 50 W
  • Length: 150 mm

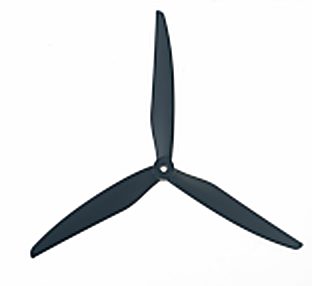

10-inch props (1050)
Propeller

10-inch props (1050)

$8.57
  • Model: 1050 · 3 blades
  • Material: fiberglass nylon
  • Pitch: 5 in
  • Center hole: 5 mm
  • Weight: 16.8 g
13-INCH

13-inch Heavy-lift Kit

Long-endurance heavy lifter on 8S

Payload 6 kgFlight time 12-36 minBattery 8S 12000mAhRange 20 kmMax speed 140 km/h
Complete kit price
$505 USD

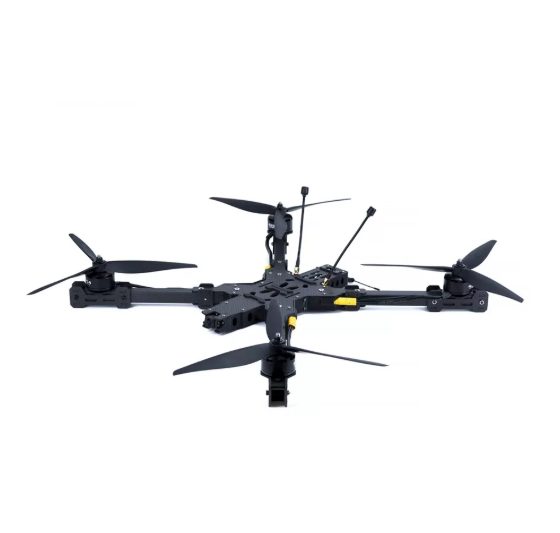

13-inch carbon frame
Frame

13-inch carbon frame

$60.00
  • 13-inch heavy-lift frame
  • Built 13-inch FPV airframe (shown)

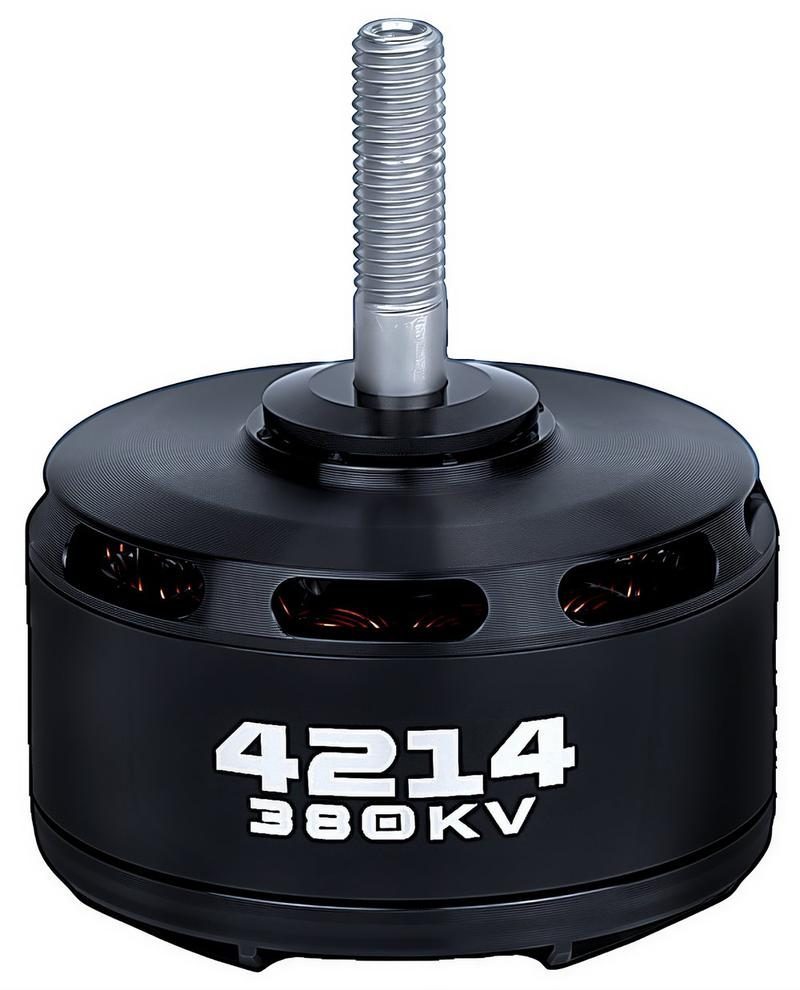

4214 · 380KV
Motor

4214 · 380KV

$180.00
  • KV: 380 · 6-8S
  • Resistance: 48mOhm · Shaft 8mm
  • Max power 1760W · 60A
  • Max thrust: 4850 g
  • 12N14P · Size D49x32.5mm
  • Silicone 14# 600mm · 246g
  • No-load: 2.8A

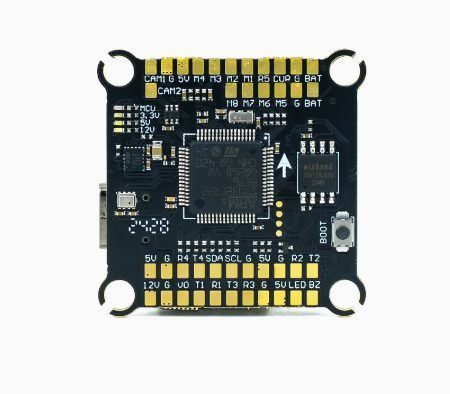

8S F722 Flight Controller
Flight Controller

8S F722 Flight Controller

$148.93
  • FW: SPEDIXF722
  • MCU: STM32F722 · Gyro ICM42688P
  • BEC: 5V/3A · 12V/2A
  • Input: 4-8S
  • OSD · BlackBox 16M · Barometer
  • Size: 36x36x6mm · 7g

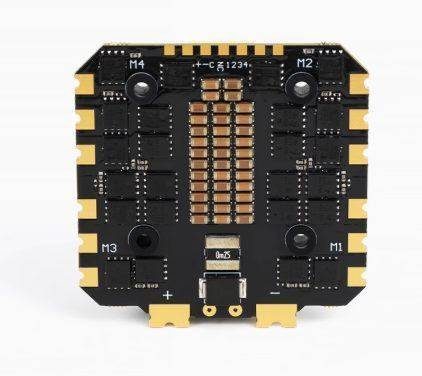

8S 80A ESC
ESC

8S 80A ESC

Included
  • FW: QH40_24_V0.19.2
  • Current ratio: 200
  • Input: 4-8S
  • Continuous 80A / Burst 90A
  • No BEC / no ESC telemetry
  • Size: 57x56x6mm · 28g
  • Mount: 30.5x30.5mm
C2 1500TVL Camera
Camera

C2 1500TVL Camera

$12.64
  • Sensor: 1/3" CMOS
  • Resolution: 1200TVL
  • Lens: 2.1 mm
  • PAL / NTSC
  • Voltage: DC 5-30 V
  • Weight: 6 g
5.8G 3W · Dual-core w/ fan
Video Transmitter

5.8G 3W · Dual-core w/ fan

$61.07
  • Output: 0/400/800/1500/2500/Max 3000 mW
  • 40CH (A-B-E-F-R) · MMCX
  • Dual button / OSD
  • Current <=450mA@12V (800mW)
  • Mount: 20 x 20 mm
  • NTSC/PAL auto
  • Weight: 23 g (no antenna)
ELRS 915MHz · Single antenna
Receiver

ELRS 915MHz · Single antenna

$11.79
  • Chip: ESP32
  • Supply: 5V · CSRF
  • Freq: 915 / 868 MHz
  • Size: 12 x 12 x 3 mm
  • Weight: 0.6 g
  • IPEX1 · Telemetry <17dBm
  • WIFI firmware update
Lollipop 4+ Long 150mm
Antenna

Lollipop 4+ Long 150mm

$6.43
  • Freq: 5500-6000 MHz
  • Polarization: RHCP
  • Gain: 3.5 dBi
  • Impedance: 50 Ohm
  • VSWR <= 1.5 @5800MHz
  • Max power: 50 W
  • Length: 150 mm
HQ 13-inch props
Propeller

HQ 13-inch props

$25.00
  • Diameter: 13 inch · 3 blades
  • Material: fiberglass-reinforced nylon
  • Weight: 40.6 g
15-INCH

15-inch Fiber-optic FPV Kit

Heavy-lift long-endurance FPV on 8S with optical-fiber video downlink

Payload 7 kgFlight time 7-20 minBattery 8S 12000-16000mAhRange 5-20 kmMax speed 140 km/h
Complete system price
$700 USD
$492 drone-only kit

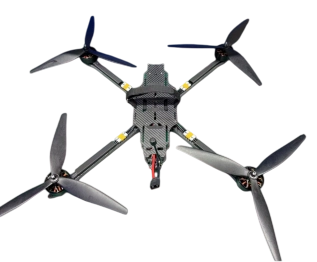

15-inch carbon frame
Frame

15-inch Carbon Frame Kit

Included
  • Wheelbase: 647 mm
  • Size: 517 x 517 x 8 mm
  • Arm thickness: 10 mm
  • Upper board 2 mm / Mid 4 mm / Lower 4 mm

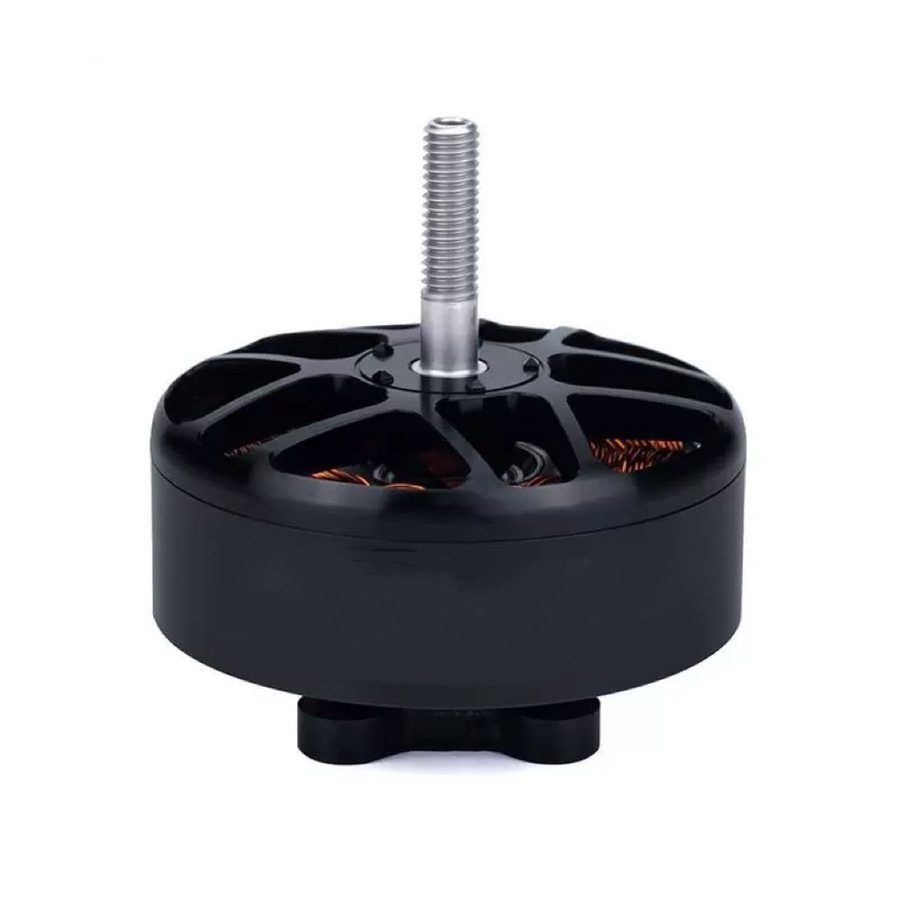

4214 380KV motor
Motor

4214 · 380KV

Included
  • KV: 380 · Working 6-8S
  • Resistance: 48mOhm · Shaft 8 mm
  • Max power 1760W · 60A
  • Max thrust: 4850 g
  • 12N14P · D49 x 32.5 mm
  • Silicone wire 14# 600 mm · 246 g
  • No-load current: 2.8A

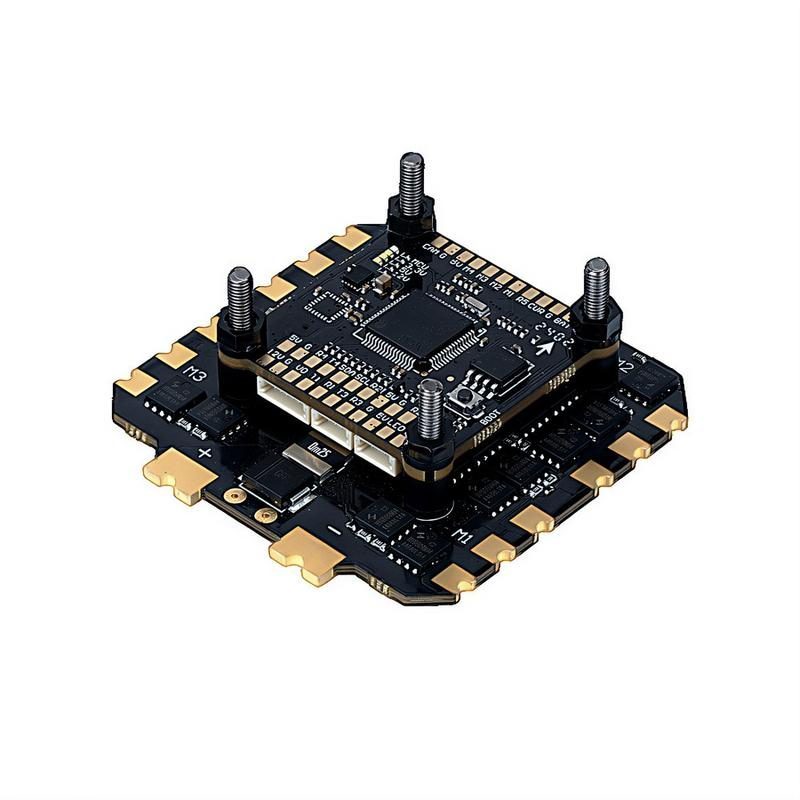

ECO F405 flight controller
Flight Controller

ECO F405

Included
  • FW: SPEDIXF405
  • MCU: STM32F405 · Gyro ICM42688P
  • BEC: 5V/3A · 12V/2A
  • Input: 4-8S
  • 5x UART · OSD · BlackBox 16M · Barometer
  • Size: 36 x 36 x 6 mm
  • Mount: 30.5 x 30.5 mm · 7 g
Argus ECO 80A ESC
ESC

Argus ECO 80A

Included
  • FW: QH40_24_V0.19.2
  • Current ratio: 200
  • Input: 4-8S
  • Continuous 80A / Burst 90A
  • No BEC / no ESC telemetry
  • Size: 57 x 56 x 6 mm
  • Mount: 30.5 x 30.5 mm · 28 g

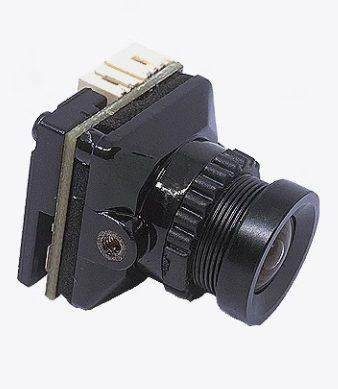

1500TVL FPV camera
Camera

1500TVL FPV Camera

Included
  • Sensor: 1/3" CMOS
  • Resolution: 1500TVL
  • Lens: 2.1 mm
  • PAL / NTSC
  • Voltage: DC 5-30 V
  • Weight: 6 g
5.8G 3W VTX with fan
Video Transmitter

5.8G 3W · Dual-core w/ fan

Included
  • Output: 0/400/800/1500/2500/Max 3000 mW
  • 40CH (A-B-E-F-R) · MMCX
  • Dual button / OSD
  • Current <=450mA@12V (800mW)
  • Mount: 20 x 20 mm
  • NTSC/PAL auto
  • Weight: 23 g (no antenna)

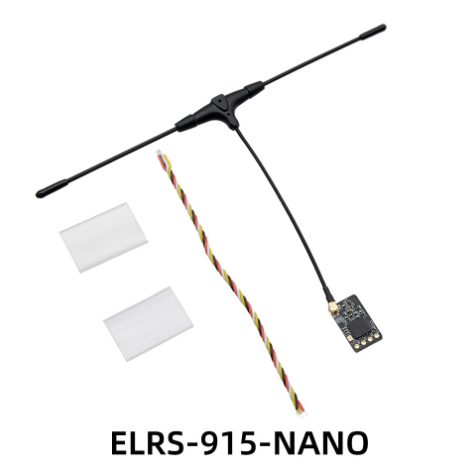

ELRS 915MHz nano receiver
Receiver

ELRS 915MHz Nano

Included
  • Chip: ESP8285
  • Supply: 5V · CSRF
  • Freq: 915 / 868 MHz
  • Size: 12 x 12 x 3 mm
  • Weight: 0.6 g
  • IPEX1 · Telemetry <17dBm
  • WIFI firmware update
Lollipop 4+ long antenna
Antenna

Lollipop 4+ Long 150mm

Included
  • Imported PC+ABS · impact resistant
  • Double-sheathed semi-rigid cable
  • Root reinforcement · 360 deg protection
HQ 15-inch 3-blade prop
Propeller

HQ 15-inch Props

Included
  • Diameter: 15 inch · 3 blades
  • Material: fiberglass-reinforced nylon
  • Weight: 40.6 g

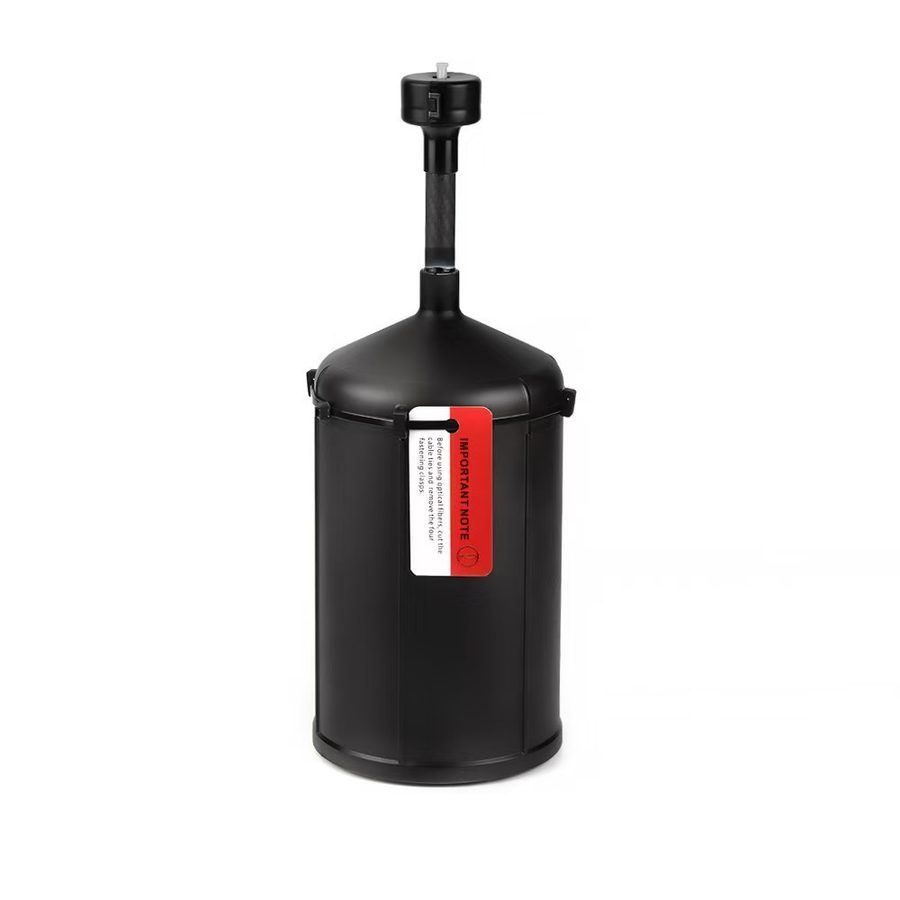

Optical fiber downlink spool
Fiber Link

Optical Fiber Downlink

Included
  • Fiber diameter: 0.25-0.26 mm
  • Single set weight: 3 kg
  • Wired transmission range: 10-25 km

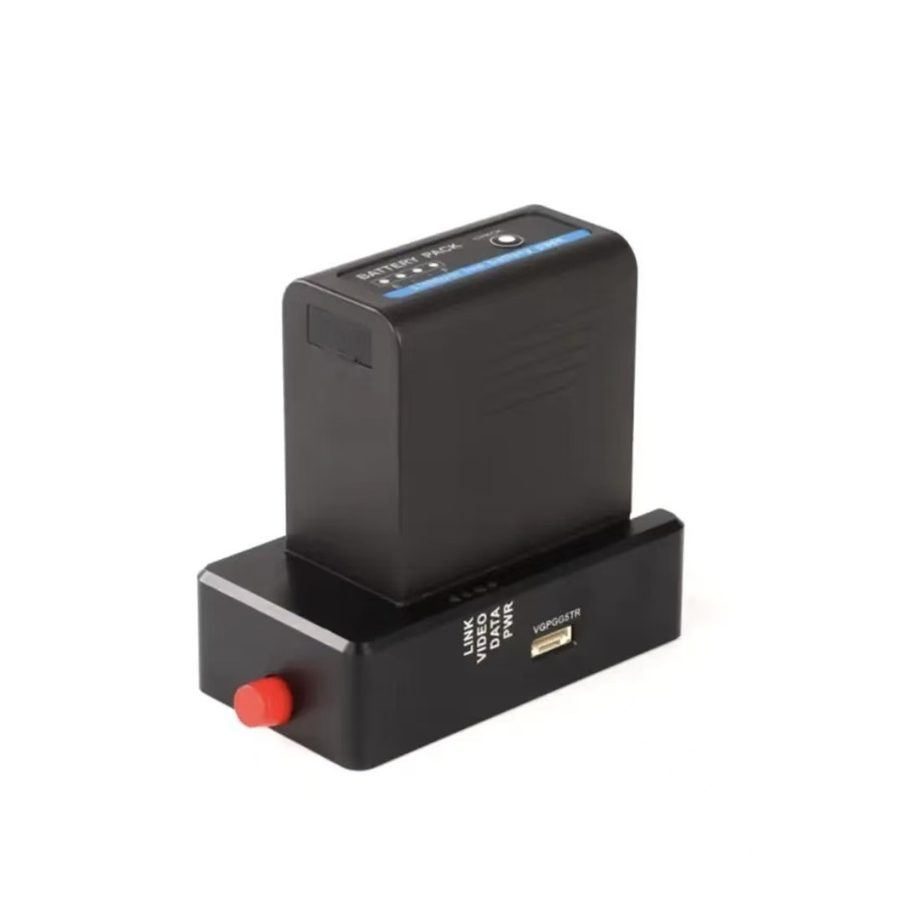

Ground module and battery pack
Ground Station

Ground Module + Battery

Included
  • Ground receive module
  • Battery pack included
  • Total weight: 220 g
18-INCH

18-inch FPV Drone Kit

Complete long-range heavy-lift FPV platform on 12S

Payload 13-20 kgRange 20-30 kmSpeed 100-150 km/hBattery 12S 36000mAh
Complete kit price
$1,483 USD
14 line items · core $412 + accessories $1,071

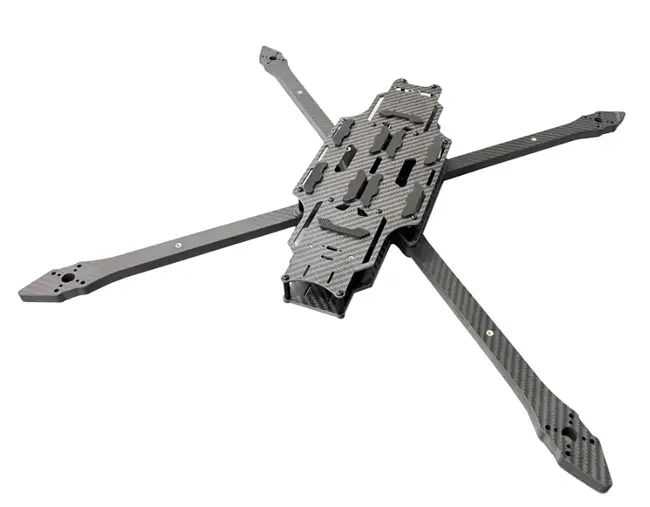

18-inch carbon fiber frame
Core · Frame

18-inch Carbon Frame

$60
  • 18-inch carbon fiber airframe
  • Qty 1 pcs

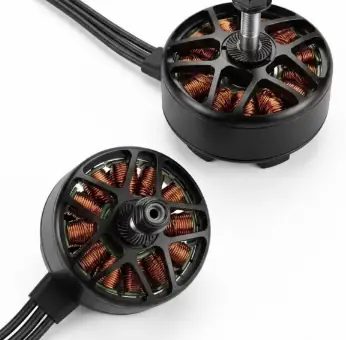

5315 200KV motor
Core · Motor

5315 Motor · 200KV

$99
  • 5315 200KV · 12S
  • Qty 4 pcs · $25 ea
F4 F405 flight controller
Core · Flight Controller

F4 F405 Flight Controller

$34
  • F4 F405
  • Qty 1 pcs

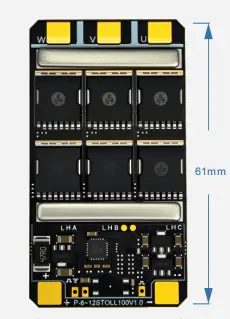

100A 12S ESC
Core · ESC

100A ESC · 12S

$103
  • 100A · 12S
  • Qty 4 pcs · $26 ea
Power distribution board
Core · PDB

Power Distribution Board

$28
  • Power distribution board
  • Qty 1 pcs
1800TVL FPV camera
Core · Camera

1800TVL FPV Camera

$11
  • 1800TVL · 5-40V
  • Qty 1 pcs

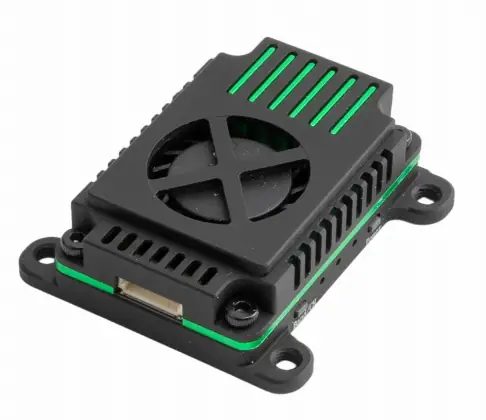

5.8G 48CH 3W VTX
Core · VTX

5.8G 48CH VTX · 3W

$43
  • 5.8G 48CH · 3W
  • Qty 1 pcs

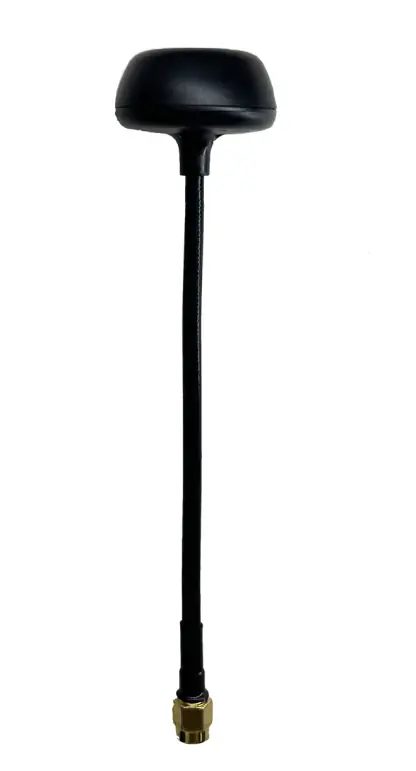

5.8G RHCP 150mm antenna
Core · Antenna

5.8G RHCP Antenna · 150mm

$3
  • 5.8G RHCP · 150mm
  • Qty 1 pcs

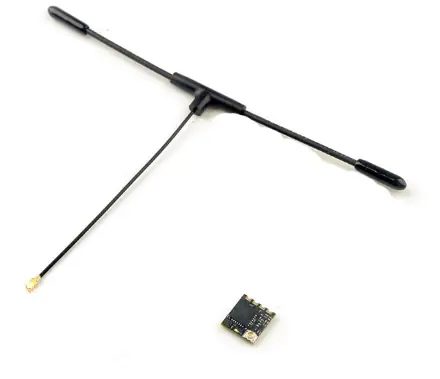

ELRS 915MHz receiver
Core · Receiver

ELRS 915MHz Receiver

$8
  • ELRS 915MHz
  • Qty 1 pcs
1810 3-blade propellers
Core · Propellers

1810 Propellers · 3-blade

$24
  • 1810 · 3-blade
  • Qty 1 set
12S 36000mAh Li-ion battery pack
Accessory · Battery

12S 36000mAh Li-ion Pack

$429
  • 12S 36000mAh Li-ion battery pack
  • Qty 1 pcs

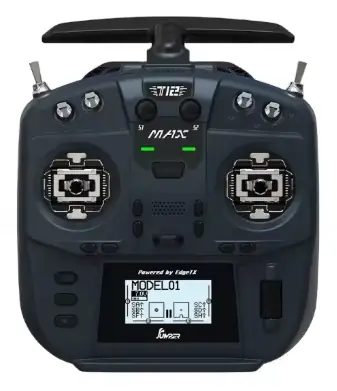

Jumper T12 MAX radio transmitter
Accessory · Radio

Jumper T12 MAX Radio

$84
  • Jumper T12 MAX
  • Qty 1 pcs

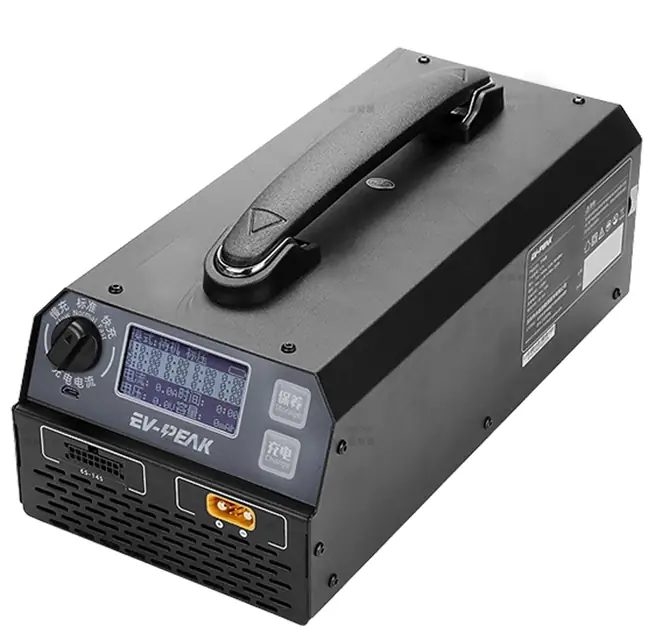

U4-HP 2400W charger
Accessory · Charger

U4-HP 2400W Charger

$279
  • 2400W · 6-14S · 2CH
  • Qty 1 pcs

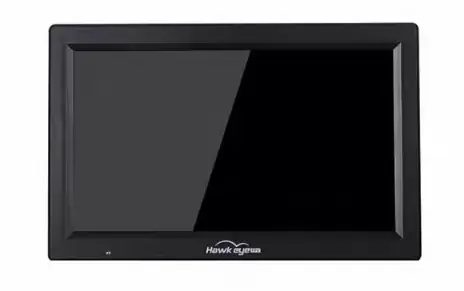

10.2-inch Hawkeye FPV monitor
Accessory · Monitor

10.2-inch Hawkeye Monitor

$278
  • 10.2-inch Hawkeye display
  • Qty 1 pcs
MAIN PRODUCTS

FPV Product Catalog

All FPV drones, motors & electronics — full product catalog
50Products
14Drones
29Motors
7Electronics

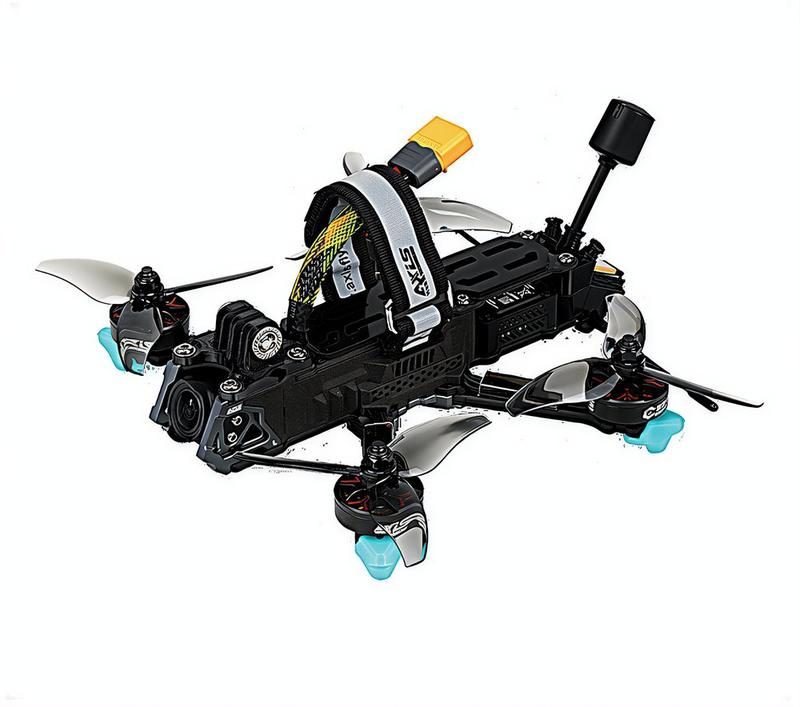

MANTA 3.6

MANTA 3.6

FPV Drones
Weight305g
Flight Time8 min+

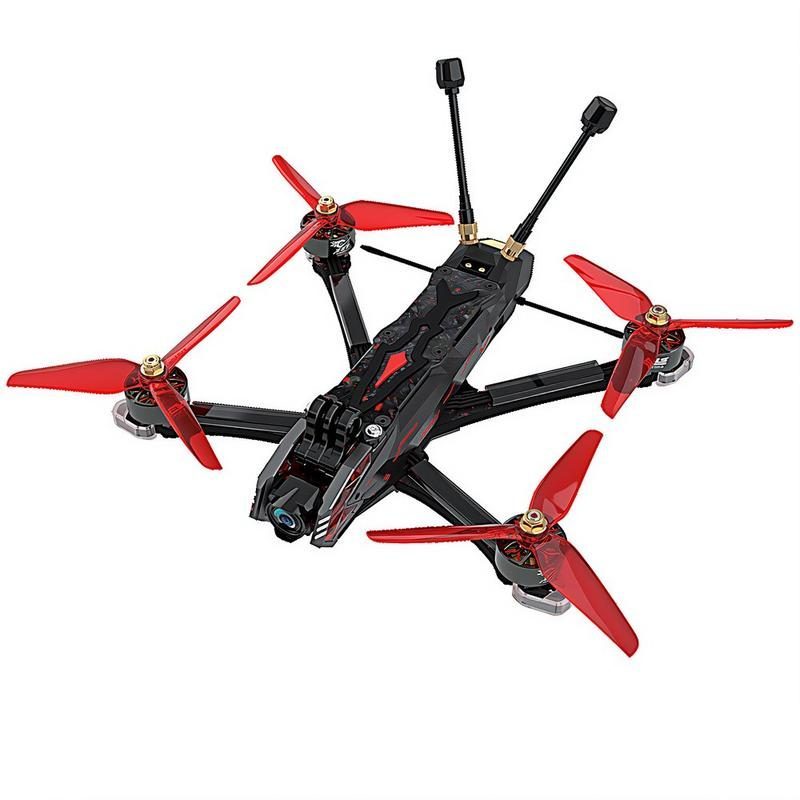

MANTA 5 PRO

MANTA 5 PRO

FPV Drones

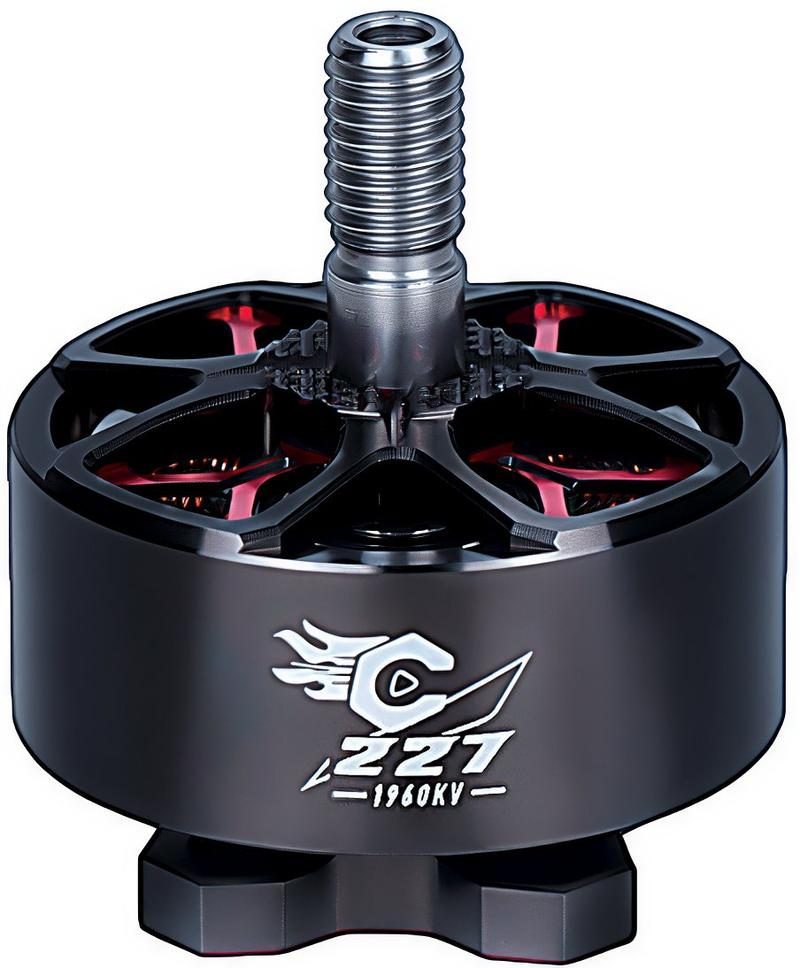

MotorC227-1960KV
VTXDJI O3 Air Unit / Analog Video Transmitt
Weight485g

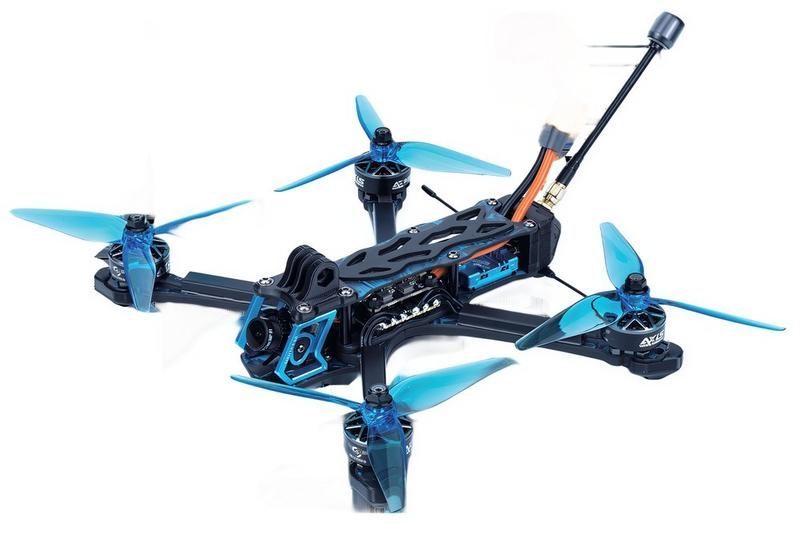

MANTA 5 SE

MANTA 5 SE

FPV Drones

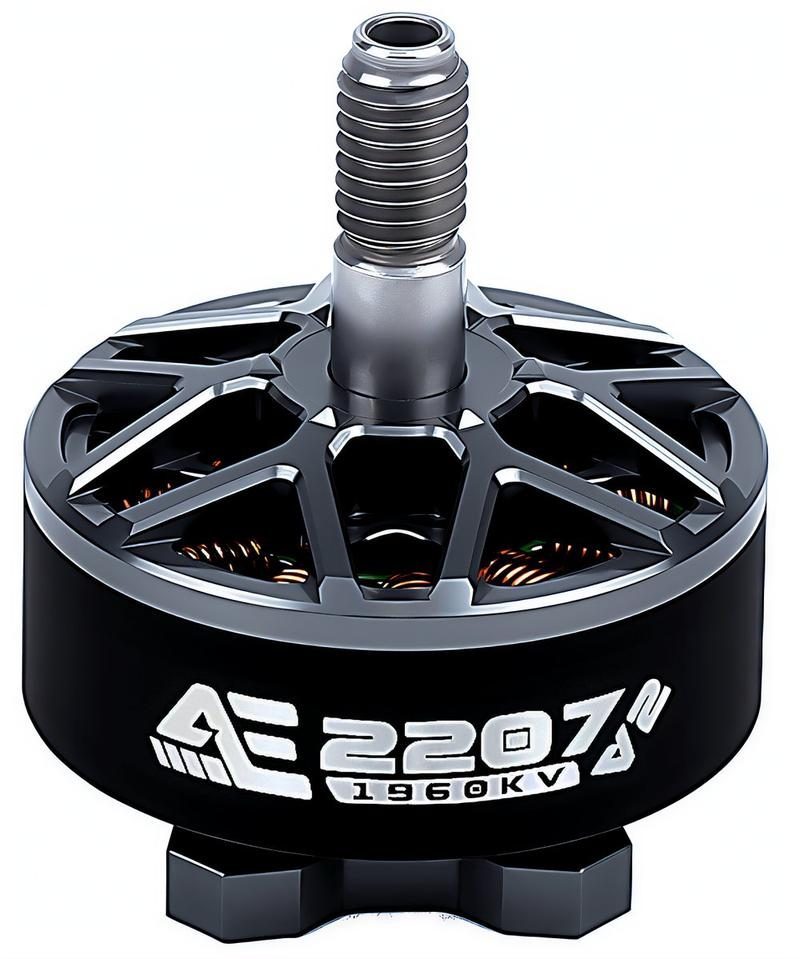

MotorAE2207 V2-1960KV
VTXDJI O3 Air Unit / Smurfs VTX-
Weight362g
MANTA 5 DC

MANTA 5 DC

FPV Drones
MotorC246 1850KV / 2050KV 6S
VTXDJI O3 Air Unit / CADDX AIR UNIT / LINK
Weight482g
MANTA 5 True X / Squashed X

MANTA 5 True X / Squashed X

FPV Drones
MotorC246 1850KV 457.8g
VTXDJI O3 Air Unit / CADDX AIR UNIT / LINK
Weight457.8g

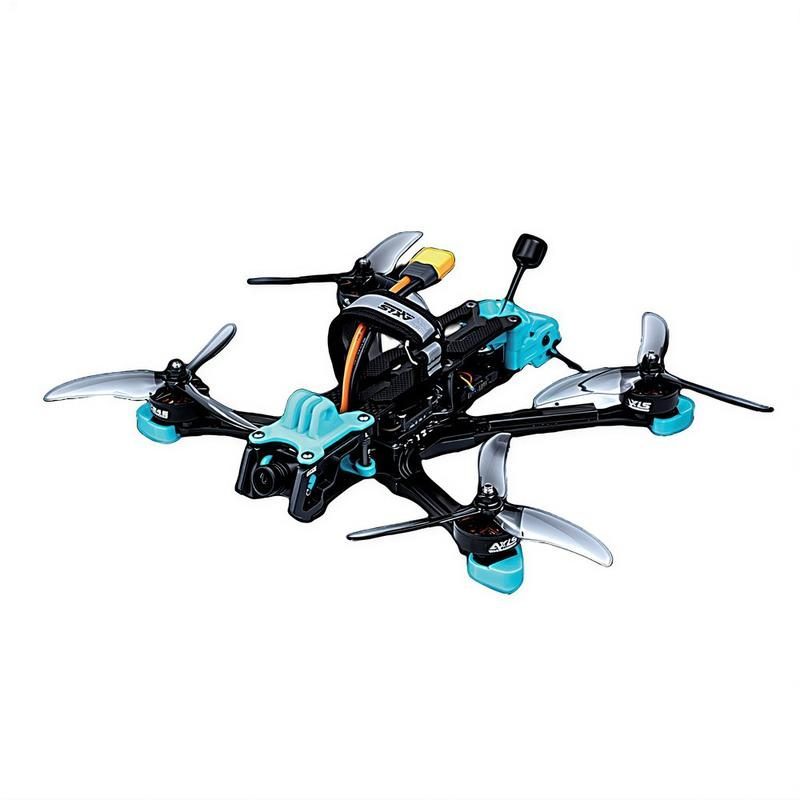

MANTA 6 DC

MANTA 6 DC

FPV Drones
MotorC246 1650KV 6S 509g
VTXDJI O3 Air Unit / CADDX AIR UNIT / LINK
Weight509g

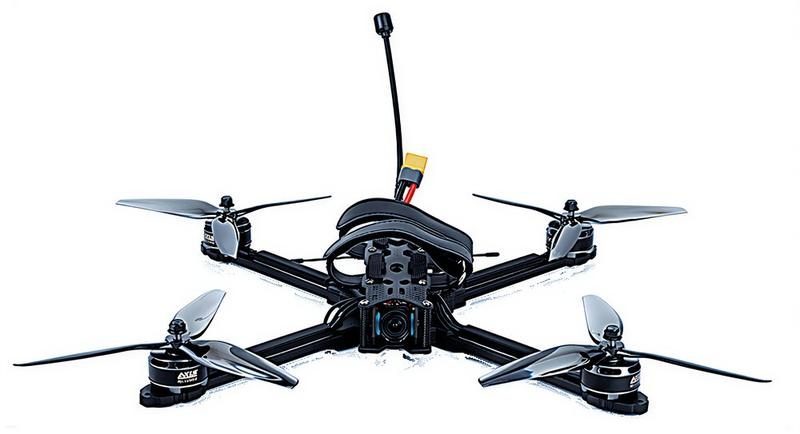

MANTA 7 X Lite

MANTA 7 X Lite

FPV Drones
MotorAX2807 1350KV
Flight Time30 min

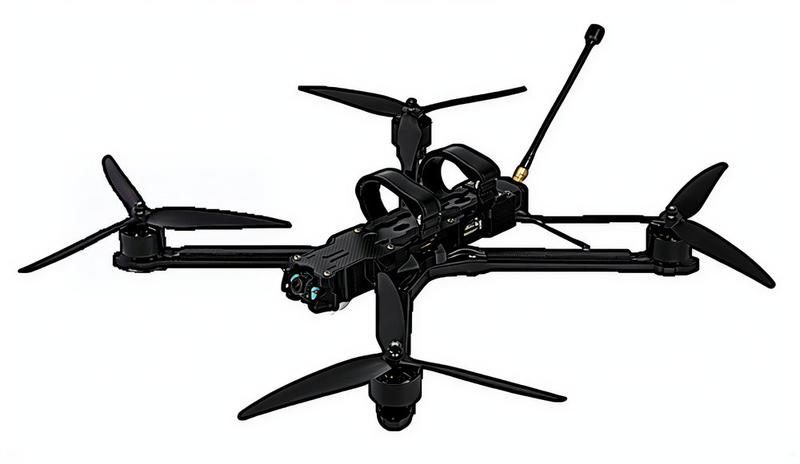

MANTA 10 X Lite

MANTA 10 X Lite

FPV Drones
Motor3115 900KV
VTXDJI O3 Air Unit / 5.8G 3W
Flight Time30 min

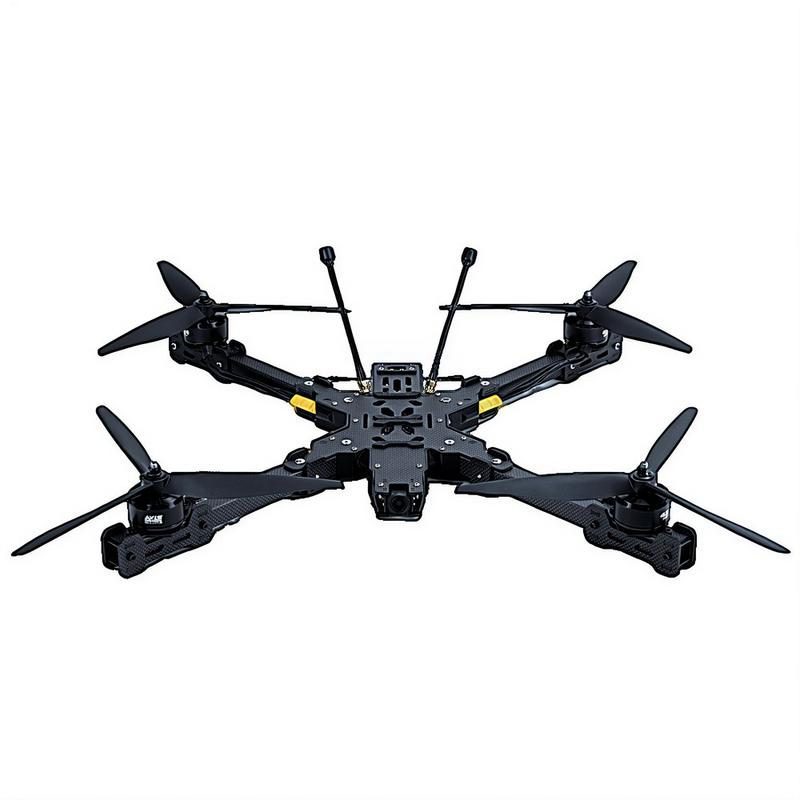

MANTA 13 X Lite

MANTA 13 X Lite

FPV Drones
Motor4214 380KV
VTXDJI O3 Air Unit / 5.8G
Flight Time30 min

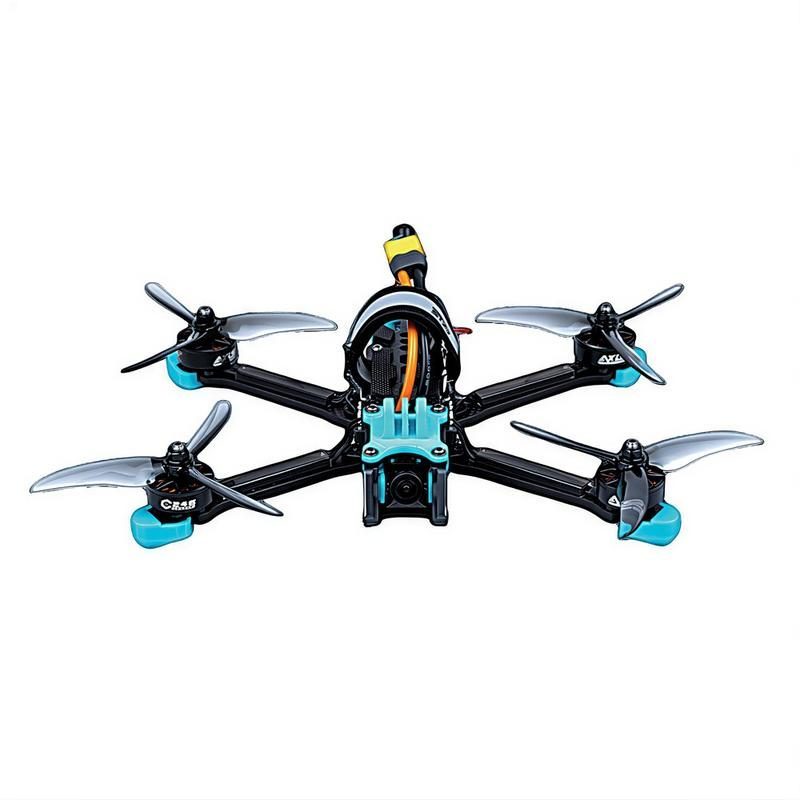

C20 (DJI O3)

C20 (DJI O3)

FPV Drones
MotorC135 5500KV
VTXDJI O3 Air Unit
Weight143.6g
Flight Time6 min+

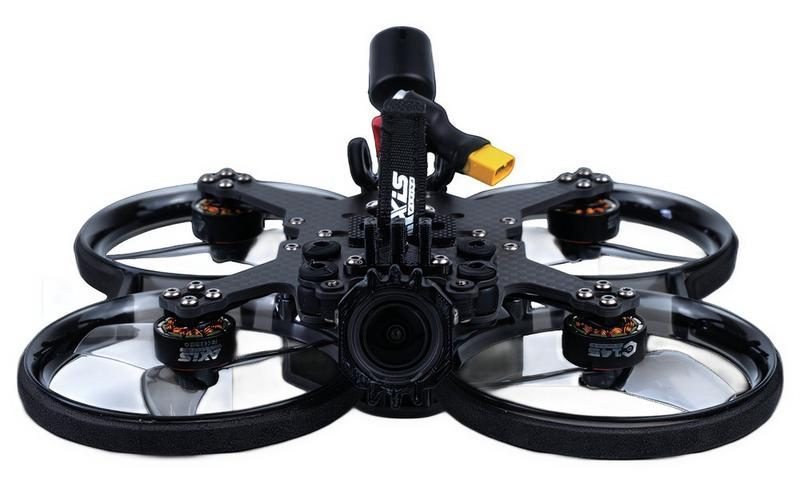

C25

C25

FPV Drones
MotorC145 4500KV
VTXDJI O3 Air Unit
Weight178g
Flight Time7 min+

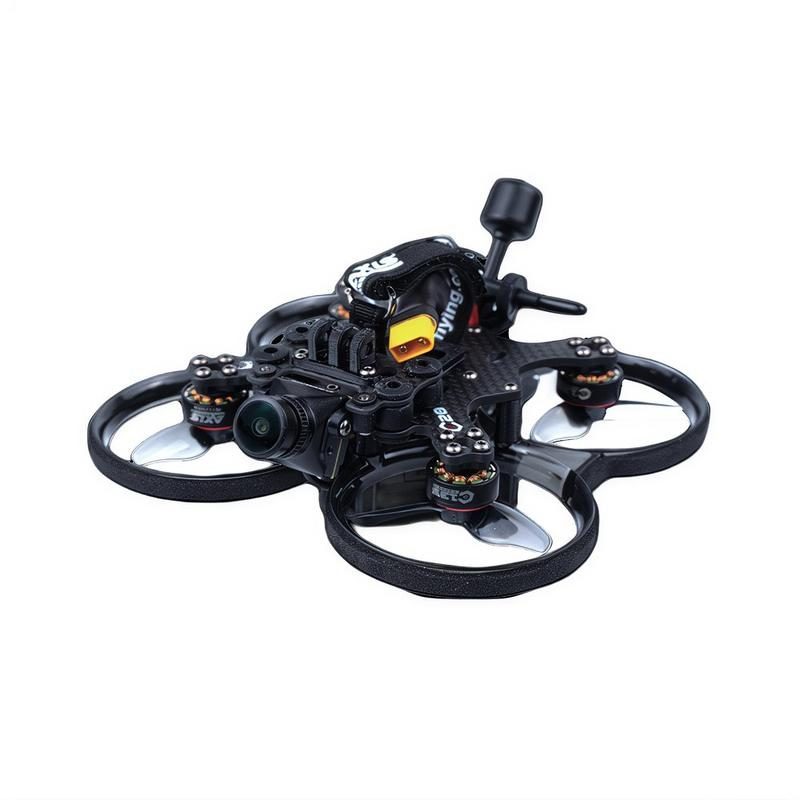

C30

C30

FPV Drones
MotorC204 2650 / 3500KV
VTXDJI O3 Air Unit Receiver: TBS Nano /
Weight273g
Flight Time8 min+

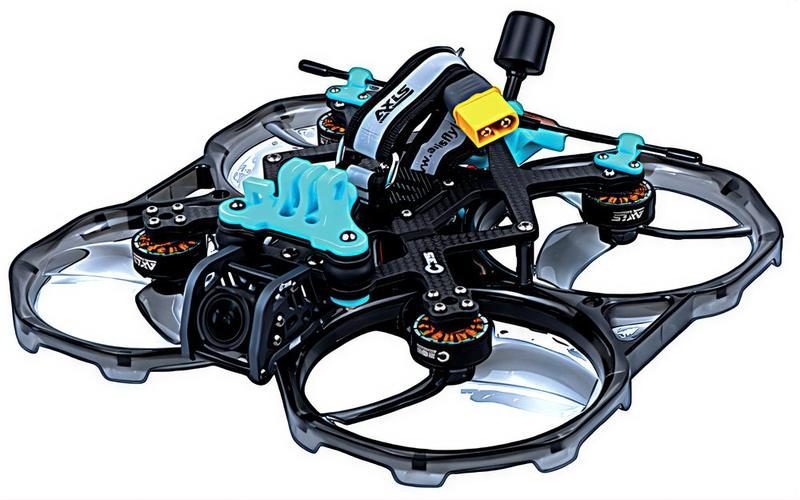

C35

C35

FPV Drones
MotorC206 2500KV / C224 3500KV
VTXDJI O3 Air Unit Receiver: TBS Nano /
Weight333.9g
Flight Time10 min+

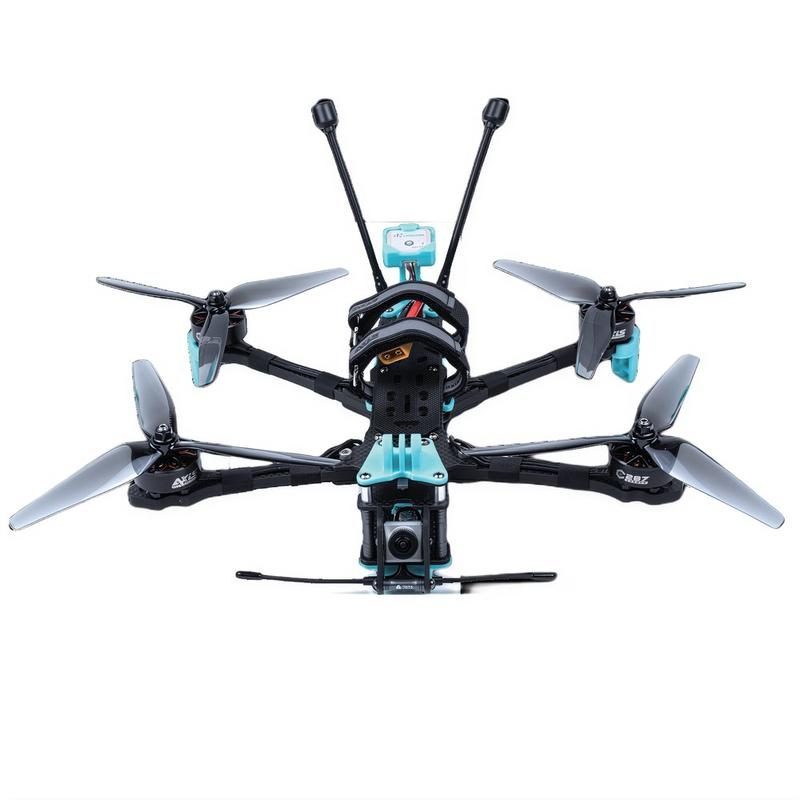

KOLAS 7

KOLAS 7

FPV Drones
VTXDJI O3 Air Unit / AVATAR HD PRO / Analog
Weight626.2g
Flight Time20 min+

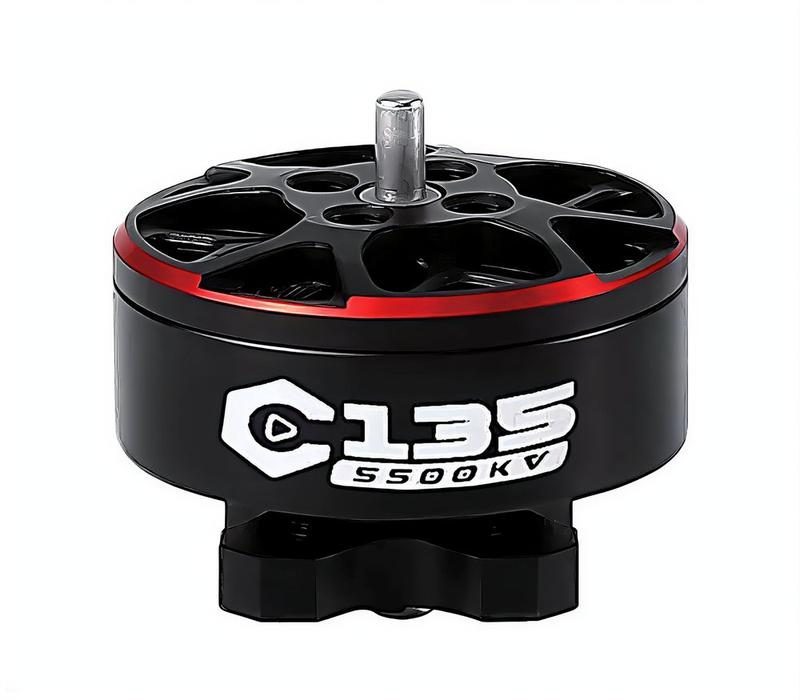

C135

C135

FPV Motors
KV5500
Voltage4S
Config9N12P Rated Voltage: 4S
Max Power162.8W

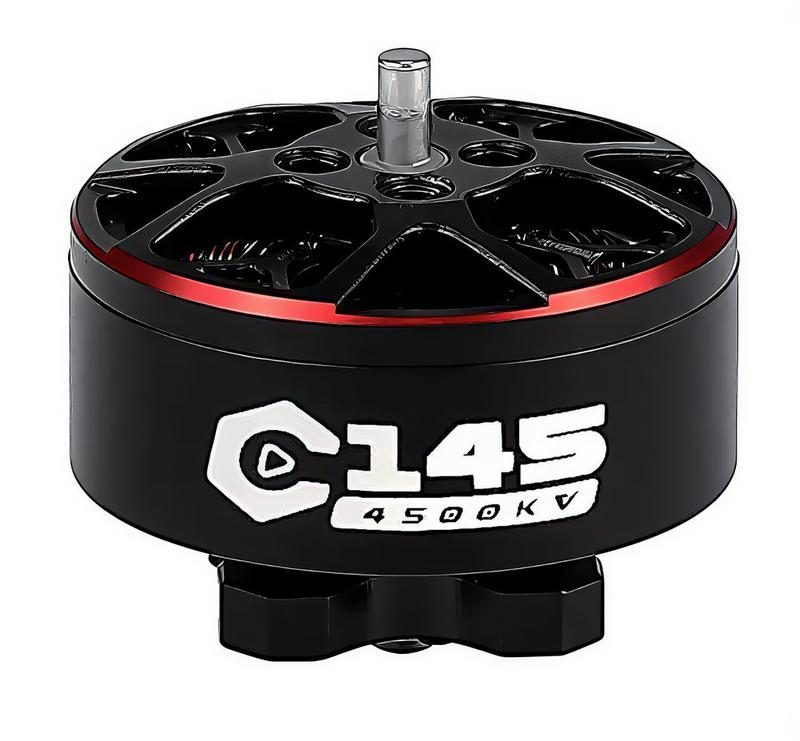

C145

C145

FPV Motors
KV4500
Voltage4S
Config9N12P Rated Voltage: 4S 50% 16.00 5.04 186.80 27879 80.64 2.32
Weight8.7g C145 GF D63-5 60% 4500KV 70% 15.95 9.66 283.80 34180 154.08 1.84

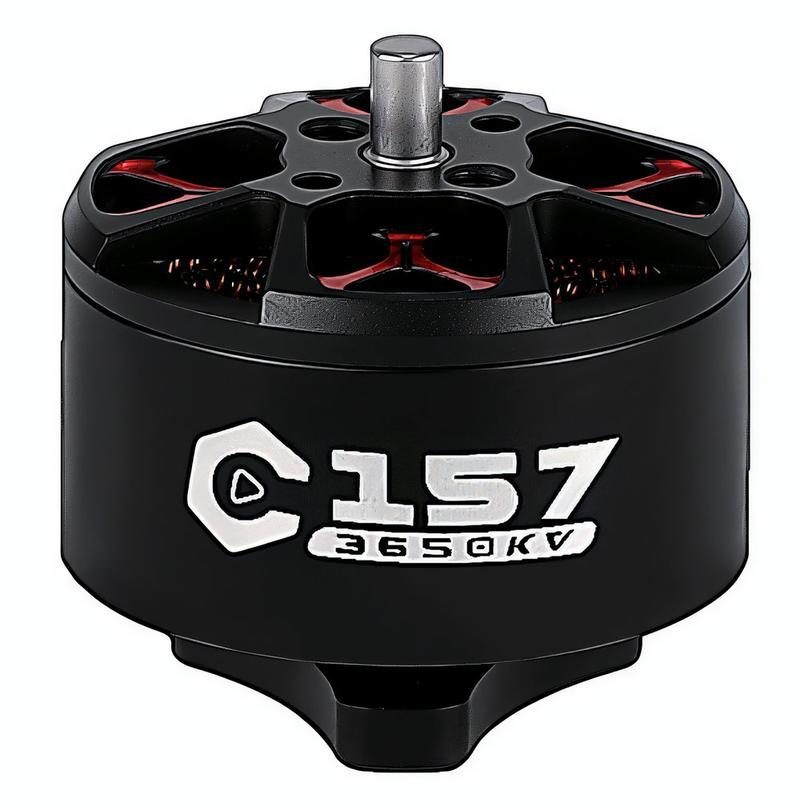

C157

C157

FPV Motors
KV3650
Voltage4S
Config12N14P Rated Voltage: 4S
Weight14.5g

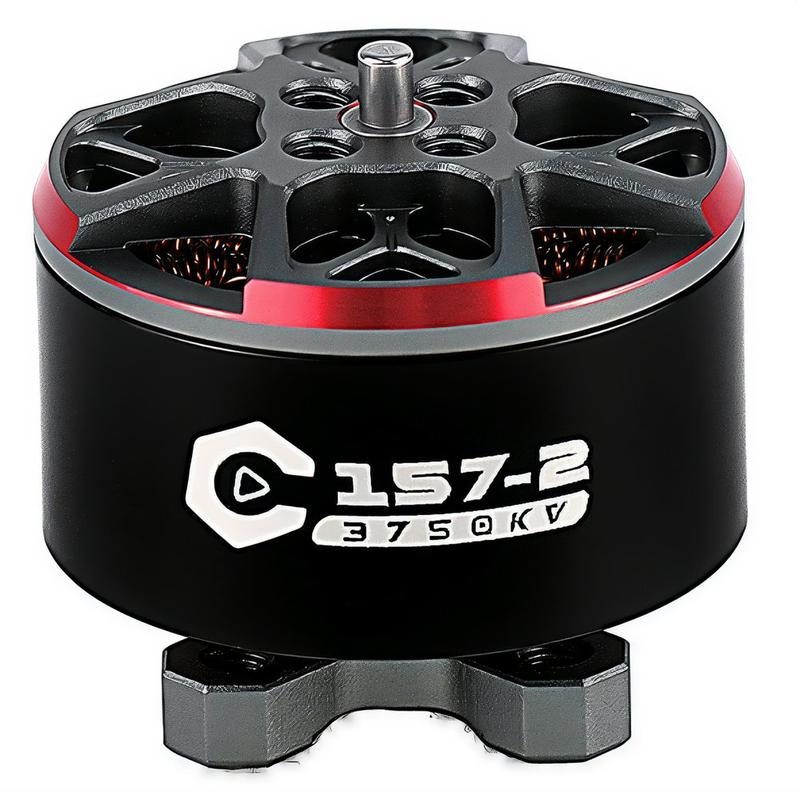

C157-2

C157-2

FPV Motors
KV3750
Voltage4S
Config12N14P Rated Voltage: 4S
Weight13.58g
C204

C204

FPV Motors
KV2650
Voltage6S
Config12N14P Rated Voltage: 6S
Weight18.36gC 204
C206

C206

FPV Motors
KV1960
Voltage6S
Config12N14P Rated Voltage: 6S
Weight22.06g
C224

C224

FPV Motors
KV2750
Voltage4S / 6S
Config12N14P Rated Voltage: 4S / 6S
Weight21g
C227

C227

FPV Motors
KV1960
Voltage4-6S
Config12N14P Rated Voltage: 4-6S
Max Thrust1582g
C246

C246

FPV Motors
KV2050
Voltage4-6S
Config12N14P Rated Voltage: 4-6S
Weight31gC 246

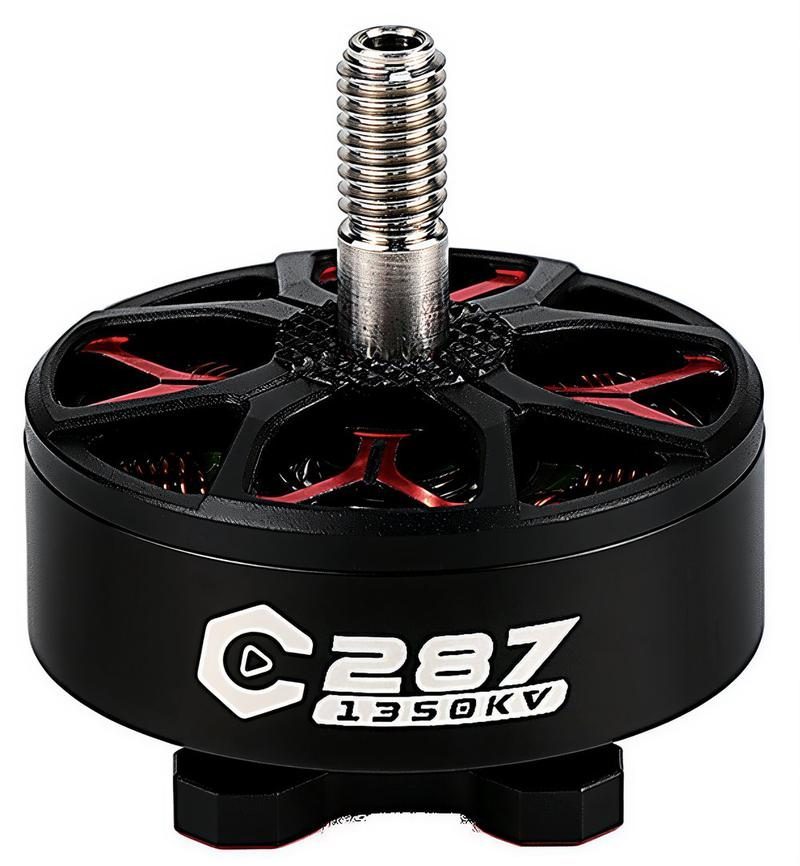

C287

C287

FPV Motors
KV1350
Voltage4-6S
Config12N14P Rated Voltage: 4-6S
Weight47g
AE 2207 V2

AE 2207 V2

FPV Motors
KV1960
Voltage6S
Config12N14P Rated Voltage: 6S
Max Thrust1703g

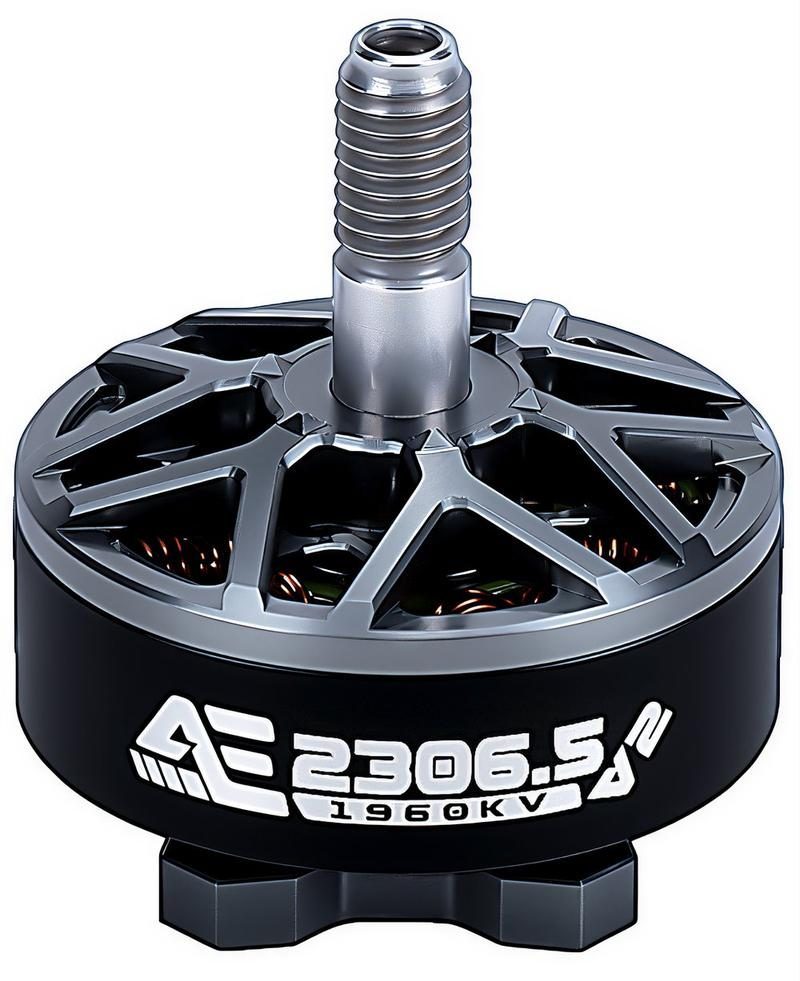

AE 2306.5 V2

AE 2306.5 V2

FPV Motors
KV1960
Voltage6S
Config12N14P Rated Voltage: 6S
Max Thrust1760g

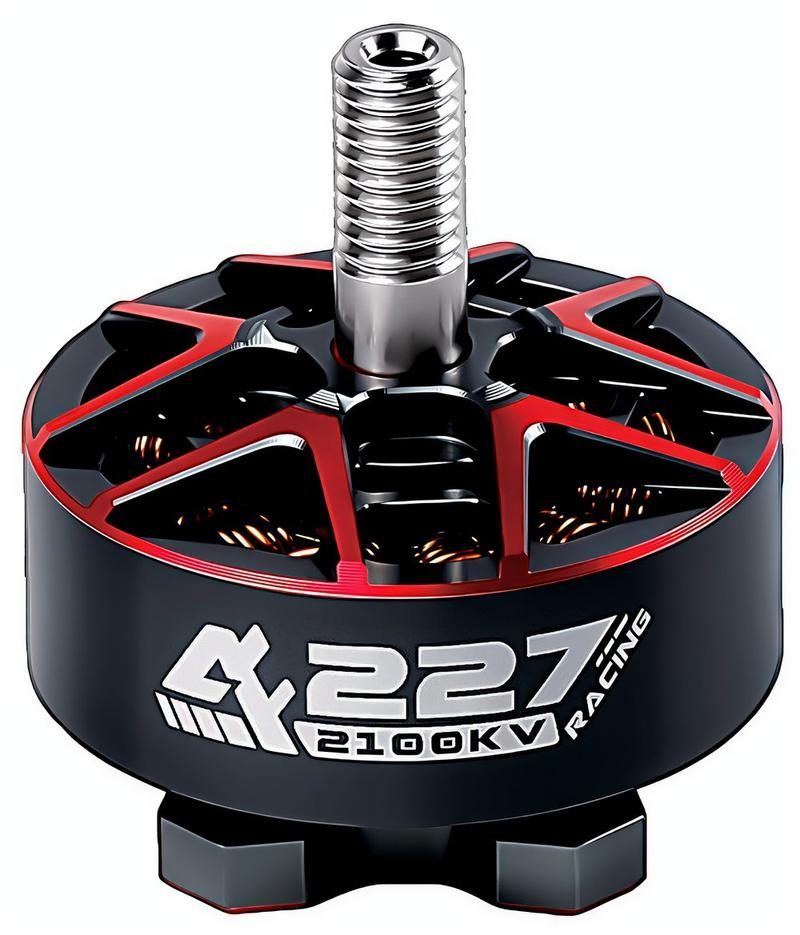

AF 227 Racing

AF 227 Racing

FPV Motors
KV2100
Voltage6S
Config12N14P Rated Voltage: 6S
Max Thrust1753g

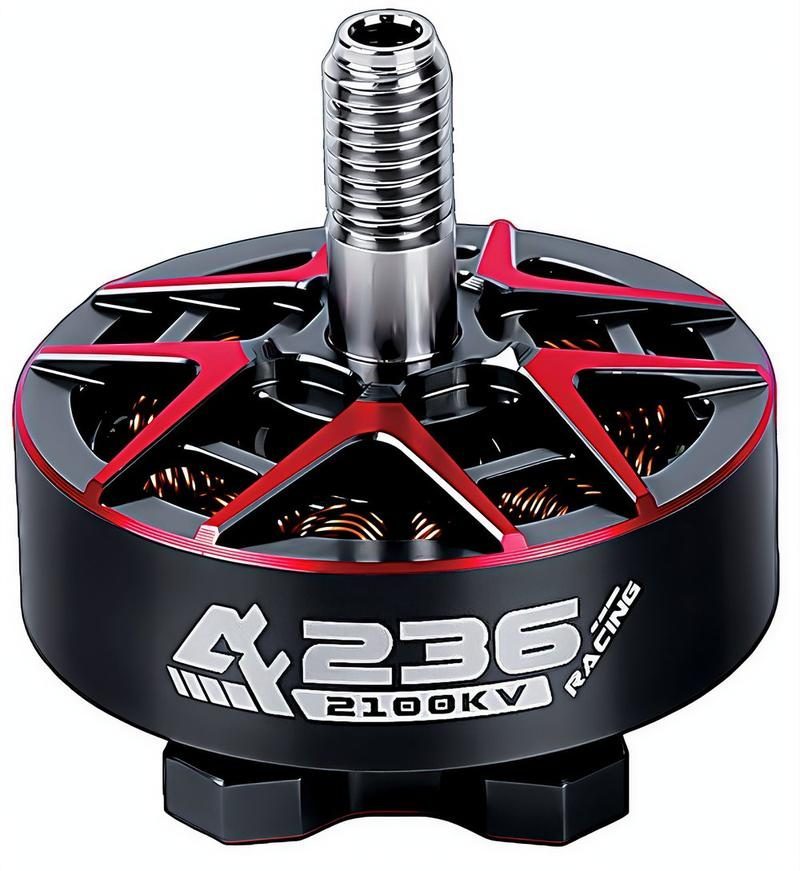

AF 236 Racing

AF 236 Racing

FPV Motors
KV2100
Voltage6S
Config12N14P Rated Voltage: 6S
Max Thrust1685g

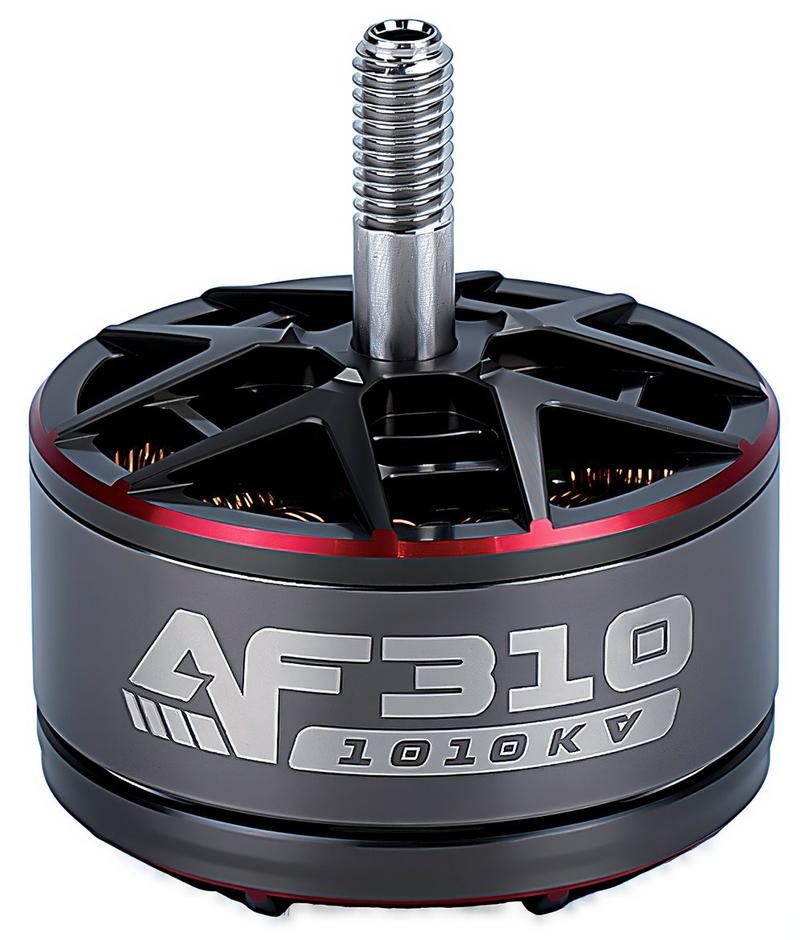

AF 310

AF 310

FPV Motors
KV1010
Voltage4-6S
Config12N14P Rated Voltage: 4-6S
Weight72g
Black Bird V3

Black Bird V3

FPV Motors
KV1975
Voltage4-6S/4S
Config12N14P Rated Voltage: 4-6S/4S
Weight32.6g

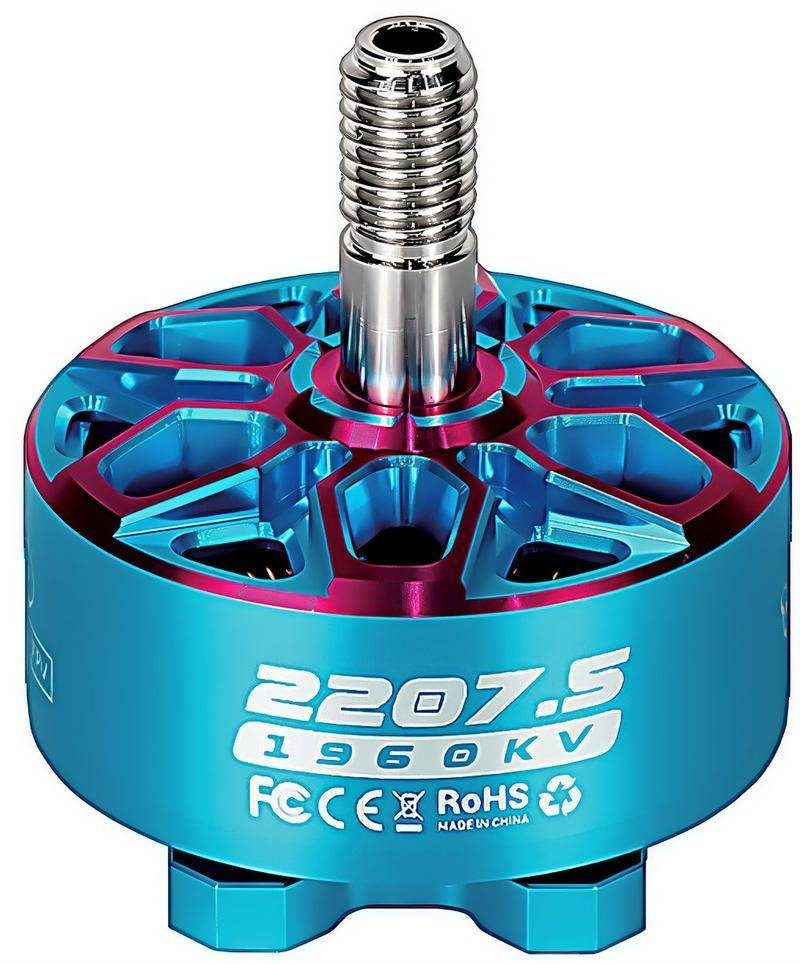

Bando 2207.5

Bando 2207.5

FPV Motors
KV1960
Voltage6S
Config12N14P Rated Voltage: 6S
Max Thrust1819g

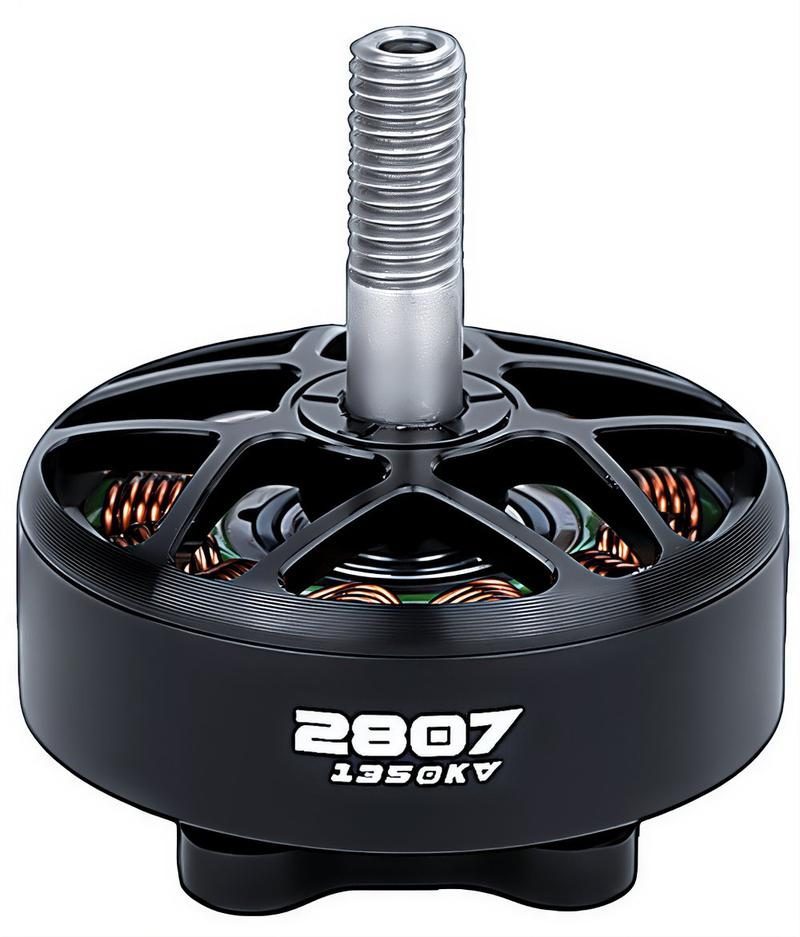

AZ 2807

AZ 2807

FPV Motors
KV1350
Voltage25.2V(6S LiPo)
Config12N14P Rated Voltage: 25.2V(6S LiPo)
Max Thrust2722g
AY 2807

AY 2807

FPV Motors
KV1300
Voltage4-6S
Config12N14P Rated Voltage: 4-6S
Max Thrust2203g
Ai 2807

Ai 2807

FPV Motors
KV1300
Voltage4-6S
Config12N14P Rated Voltage: 4-6S
Max Thrust2203g
AX 2807

AX 2807

FPV Motors
KV1300
Voltage4-6S
Config12N14P Rated Voltage: 4-6S
Max Thrust2203g

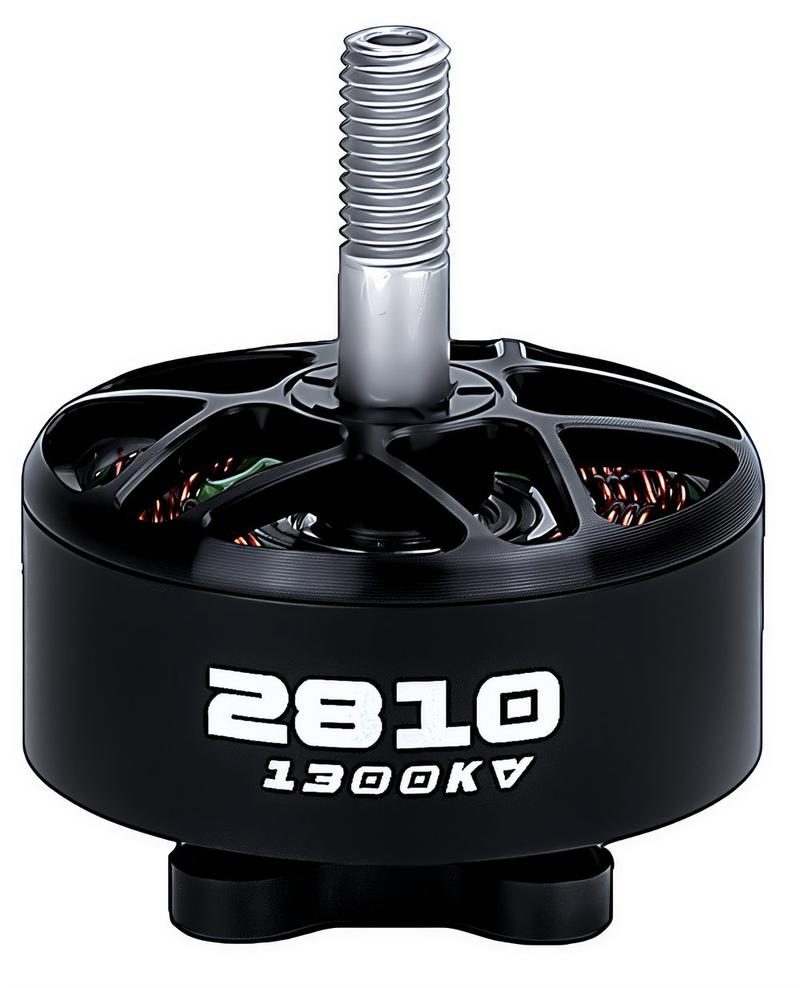

2810

2810

FPV Motors
KV1300
Voltage4-6S
Config12N14P Rated Voltage: 4-6S
Max Thrust2702g

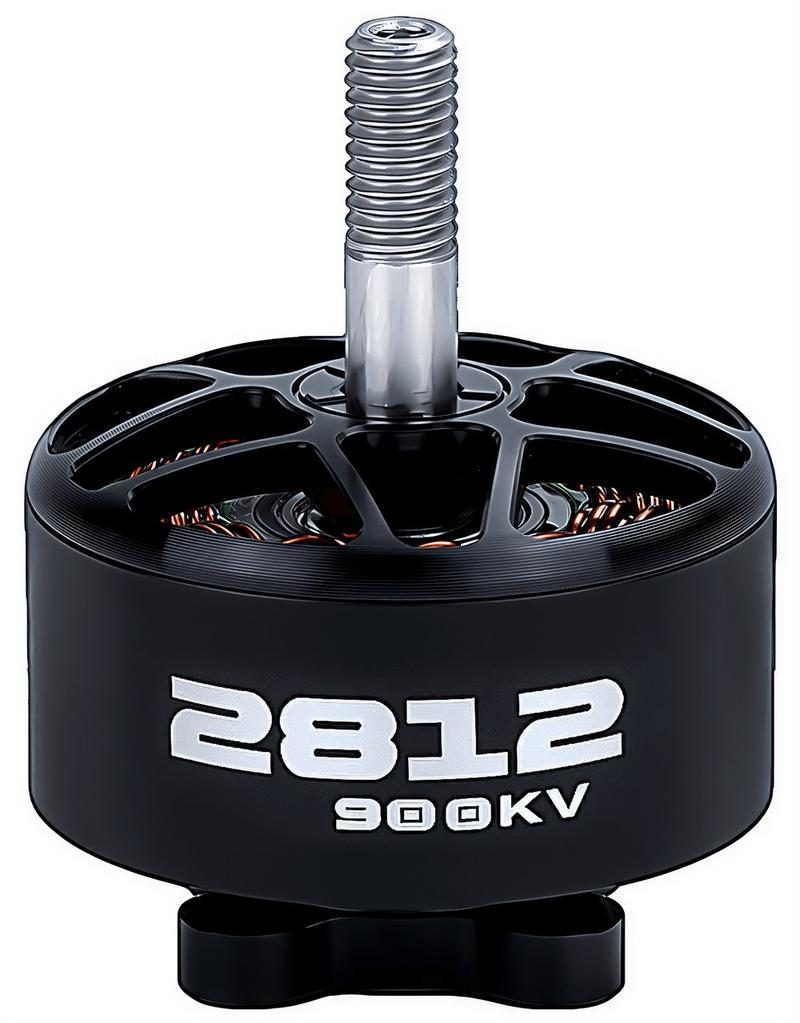

2812

2812

FPV Motors
KV900
Voltage4-6S
Config12N14P Rated Voltage: 4-6S
Max Thrust2710g
AZ 3115

AZ 3115

FPV Motors
KV900
Voltage3-6S
Config12N14P Rated Voltage: 3-6S
Max Thrust4245g
AY 3115

AY 3115

FPV Motors
KV900
Voltage3-6S
Config12N14P Rated Voltage: 3-6S
Max Thrust3753g
Ai 3115

Ai 3115

FPV Motors
KV900
Voltage3-6S
Config12N14P Rated Voltage: 3-6S
Max Thrust3753g
AX 3115

AX 3115

FPV Motors
KV900
Voltage3-6S
Config12N14P Rated Voltage: 3-6S
Max Thrust3753g
AZ 3215

AZ 3215

FPV Motors
KV900
Voltage4-6S
Config12N14P Rated Voltage: 4-6S
Max Thrust4121g
4214

4214

FPV Motors
KV380
Voltage6-12S
Config12N14P Rated Voltage: 6-12S
Max Thrust4582g

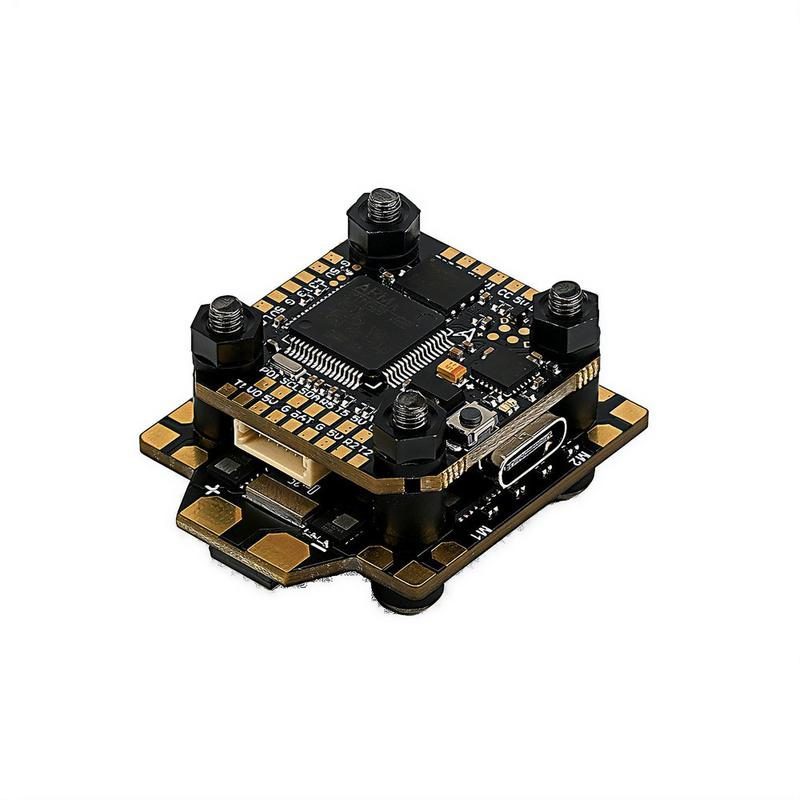

Argus mini 40A Stack

Argus mini 40A Stack

FPV Electronics
Voltage4-6S Lipo（14.8-26.1V）
Current40A
Burst50A
Weight8.2g

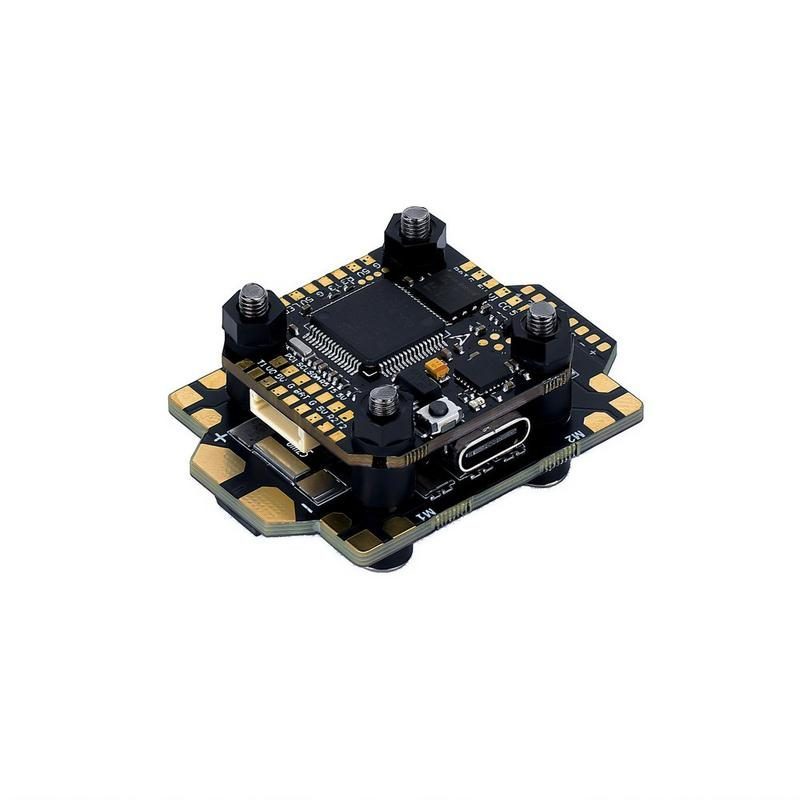

Argus mini 55A Stack

Argus mini 55A Stack

FPV Electronics
Voltage2-6S Lipo
Current55A
Burst65A
Weight11g
Argus Pro 55/65A Stack

Argus Pro 55/65A Stack

FPV Electronics
Voltage3-6s Lipo (12-30V MAX)
Current55/65A
Burst65/75A(<10s)

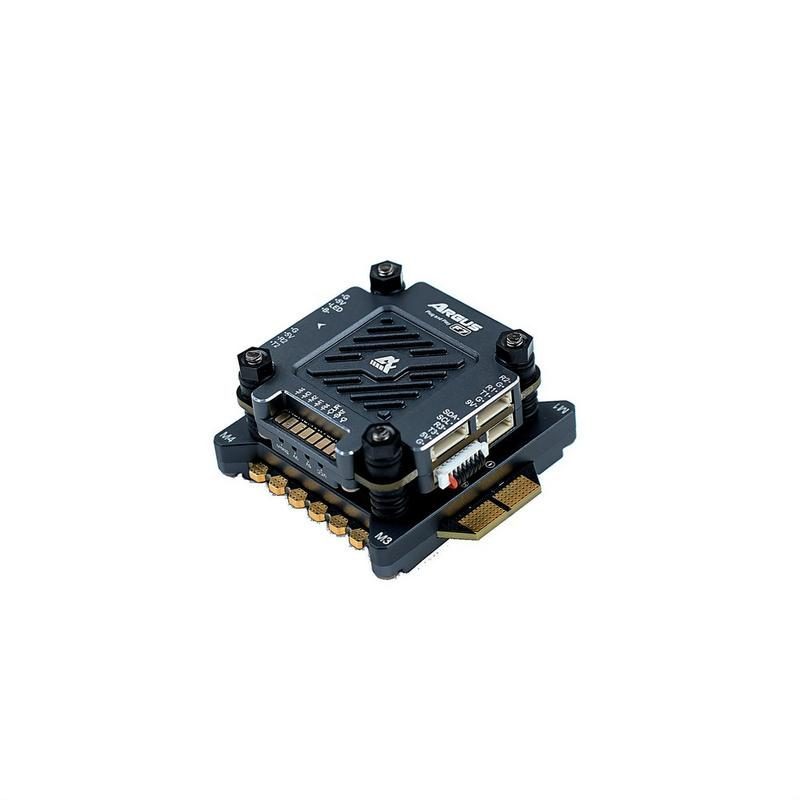

Argus F722 80A Stack

Argus F722 80A Stack

FPV Electronics
Voltage4-6S / 8S Lipo
Current80A
Burst90A
Weight28g
Argus ECO F405 60A Stack

Argus ECO F405 60A Stack

FPV Electronics
Voltage4-6SF405 60A Stack
Current60A
Burst70A
Weight13.5g
Argus ECO F405 80A Stack

Argus ECO F405 80A Stack

FPV Electronics
Voltage4-6S / 8S LipoF405 80A Stack
Current80A
Burst90A
Weight28g
SMURFS VTX

SMURFS VTX

FPV Electronics
Power25 / 100 / 250 / 800 / 1600mW
