Camera Housings & Enclosures

Aluminum alloy, full-metal and plastic-composite housings — click the image to enlarge, ask us for drawings and pricing.

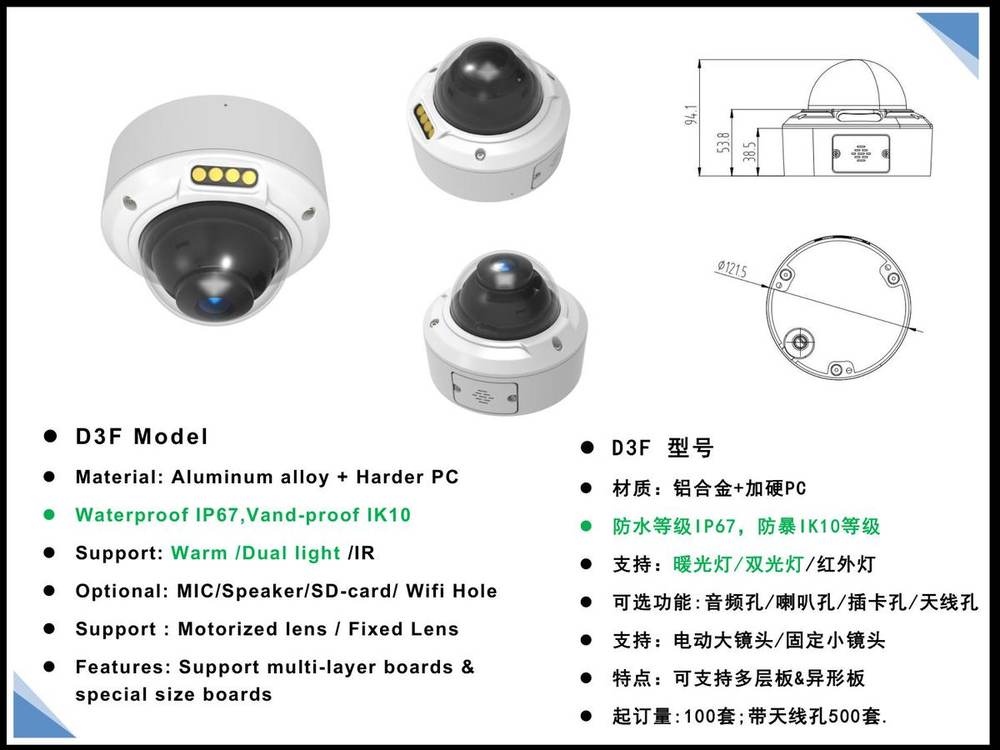

D3F Dome CCTV Housing
D3F Dome HousingDome
  • Material: Aluminum alloy + Harder PC
  • Protection: IP67 / IK10
  • Light: Warm / Dual / IR
  • Lens: Motorized / Fixed
  • Optional: MIC / Speaker / SD-card / WiFi hole
  • Fits: Multi-layer & special-size boards
  • MOQ: 100 sets (500 with antenna hole)

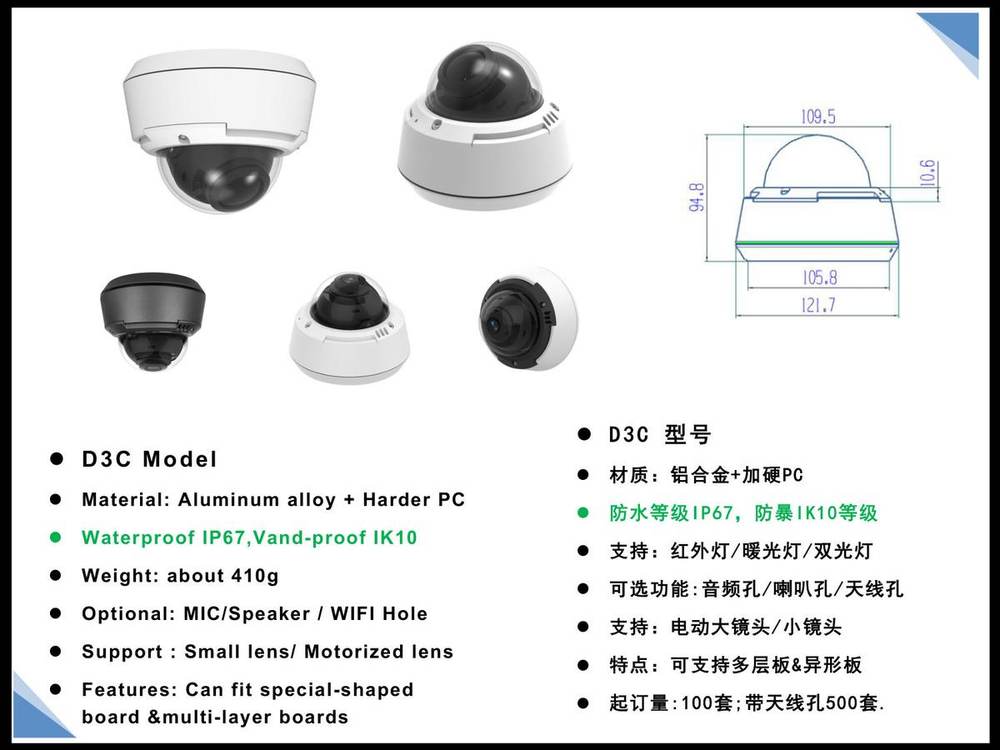

D3C Dome CCTV Housing
D3C Dome HousingDome
  • Material: Aluminum alloy + Harder PC
  • Protection: IP67 / IK10
  • Weight: about 410g
  • Lens: Small / Motorized
  • Optional: MIC / Speaker / WiFi hole
  • Fits: Special-shaped & multi-layer boards
  • MOQ: 100 sets (500 with antenna hole)

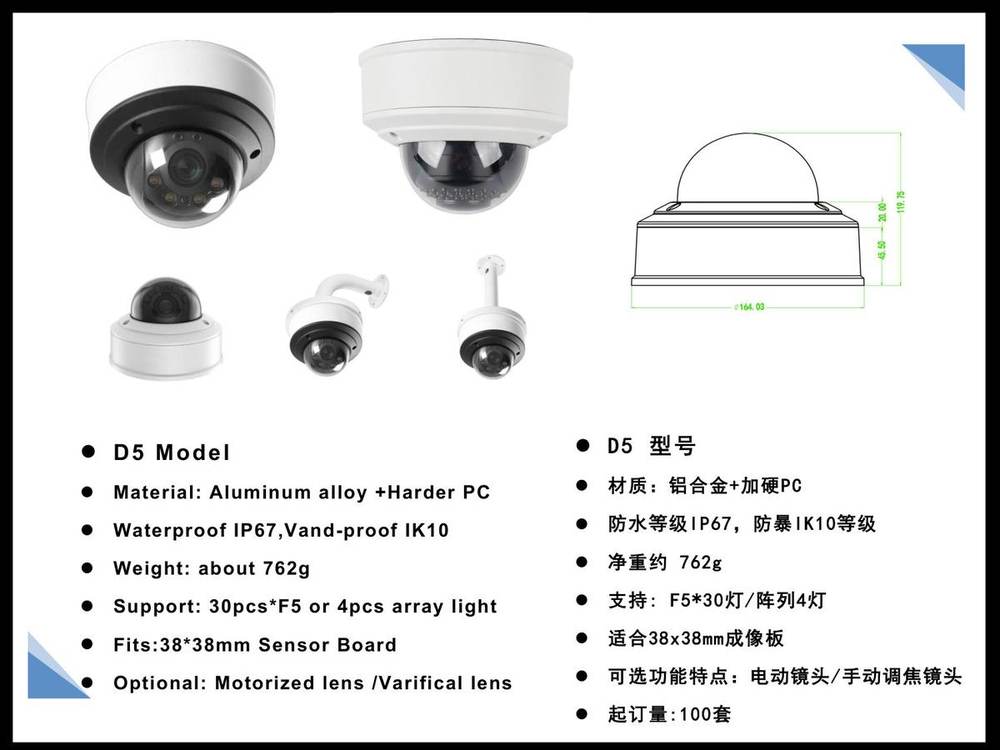

D5 Dome CCTV Housing
D5 Dome HousingDome
  • Material: Aluminum alloy + Harder PC
  • Protection: IP67 / IK10
  • Weight: about 762g
  • Light: 30pcs×F5 / 4pcs array light
  • Lens: Motorized / Varifocal
  • Fits: 38×38mm sensor board
  • MOQ: 100 sets

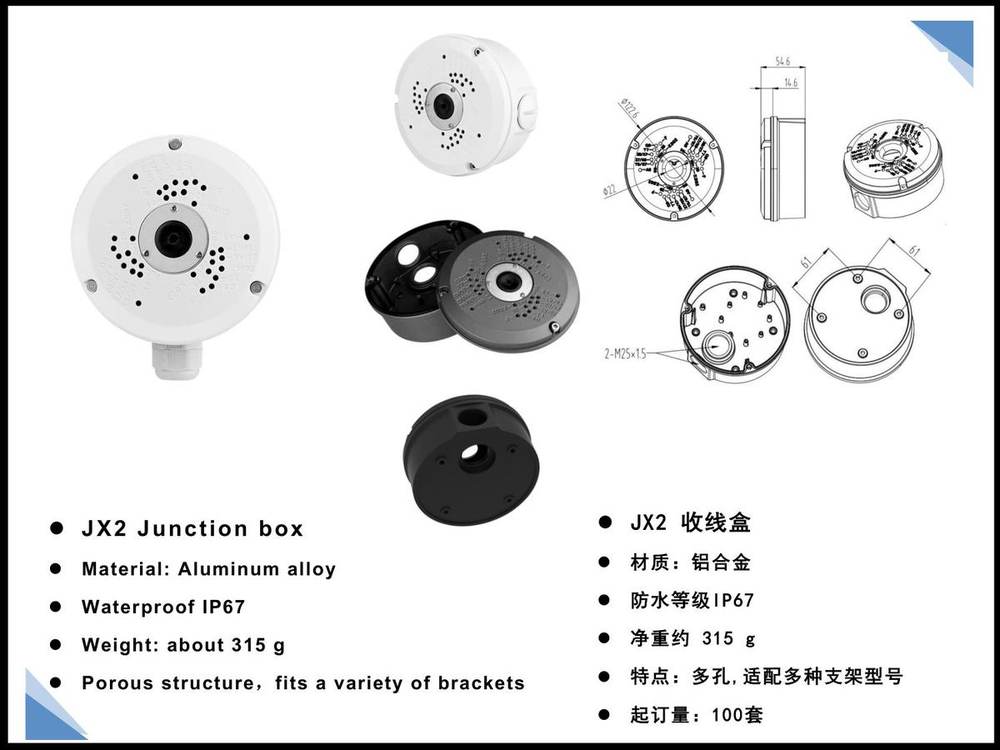

JX2 Junction Box
JX2 Junction BoxAccessory
  • Material: Aluminum alloy
  • Protection: IP67
  • Weight: about 315g
  • Feature: Porous structure, fits a variety of brackets
  • MOQ: 100 sets

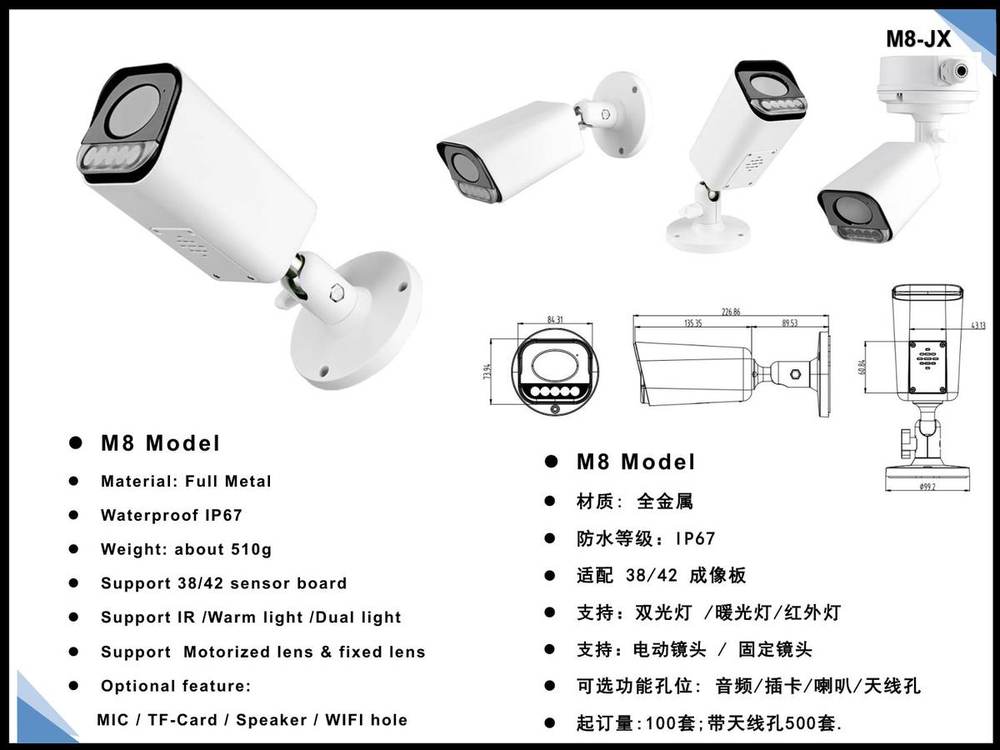

M8-JX Full Metal Bullet Housing
M8-JX Bullet HousingBullet
  • Material: Full metal
  • Protection: IP67
  • Weight: about 510g
  • Light: IR / Warm / Dual
  • Lens: Motorized & fixed
  • Fits: 38 / 42mm sensor board
  • Optional: MIC / TF-Card / Speaker / WiFi hole
  • MOQ: 100 sets (500 with antenna hole)

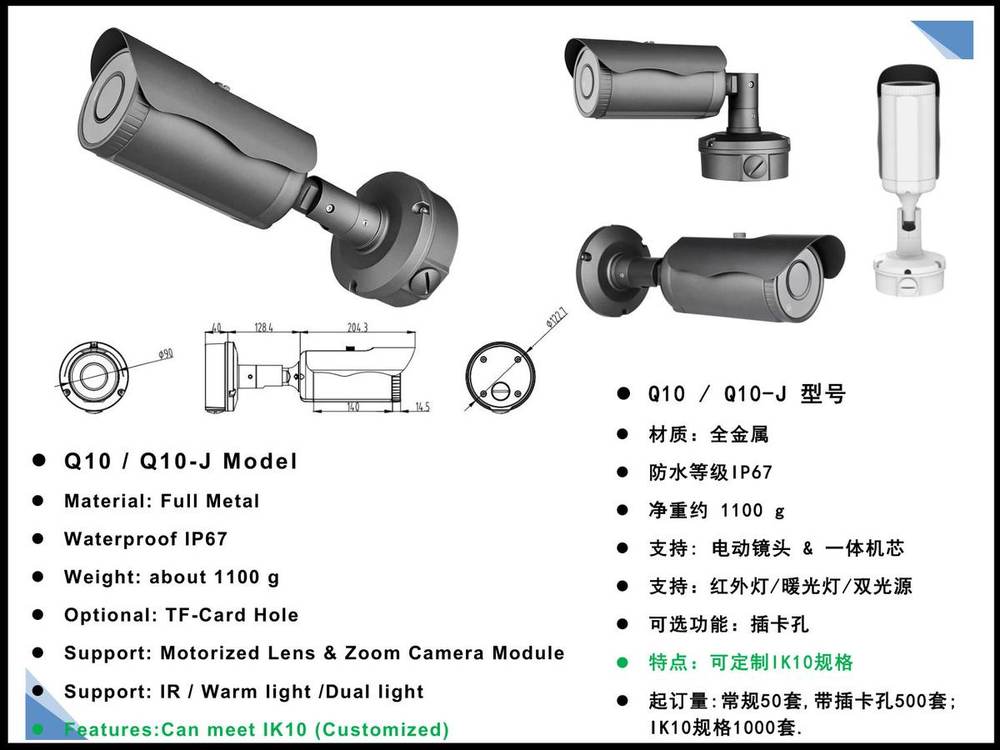

Q10 Q10-J Full Metal Bullet Housing
Q10 / Q10-J Bullet HousingBullet
  • Material: Full metal
  • Protection: IP67
  • Weight: about 1100g
  • Lens: Motorized lens & zoom camera module
  • Light: IR / Warm / Dual
  • Optional: TF-Card hole
  • Feature: IK10 customizable
  • MOQ: 50 sets regular / 500 with card / 1000 IK10

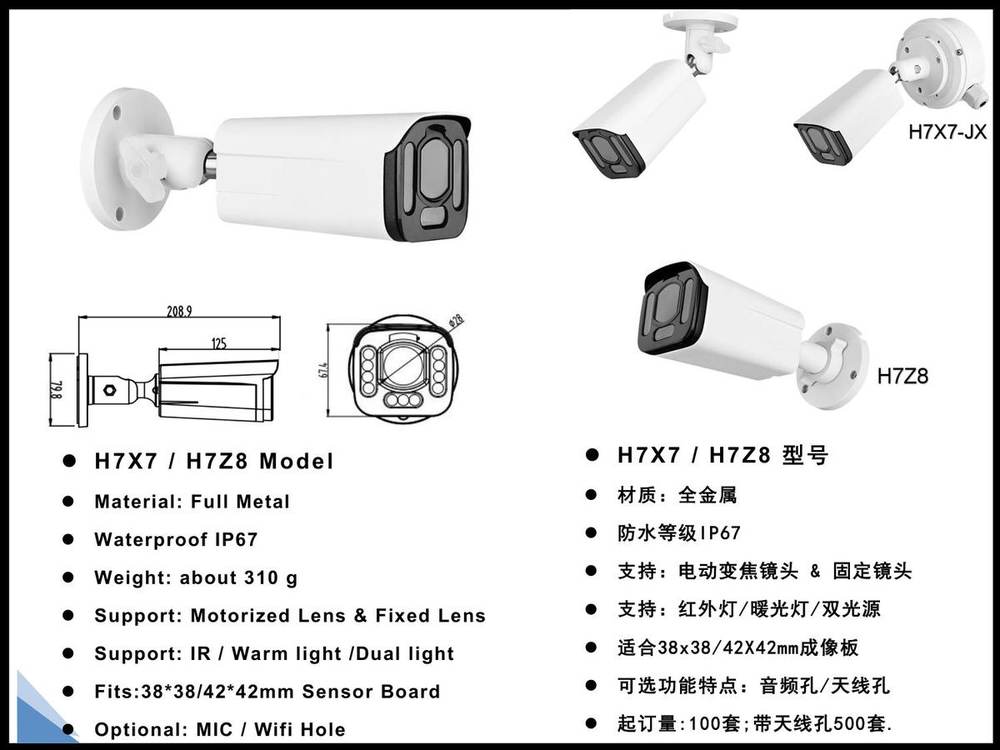

H7X7 H7Z8 Full Metal Bullet Housing
H7X7 / H7Z8 Bullet HousingBullet
  • Material: Full metal
  • Protection: IP67
  • Weight: about 310g
  • Lens: Motorized & fixed
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • Optional: MIC / WiFi hole
  • MOQ: 100 sets (500 with antenna hole)

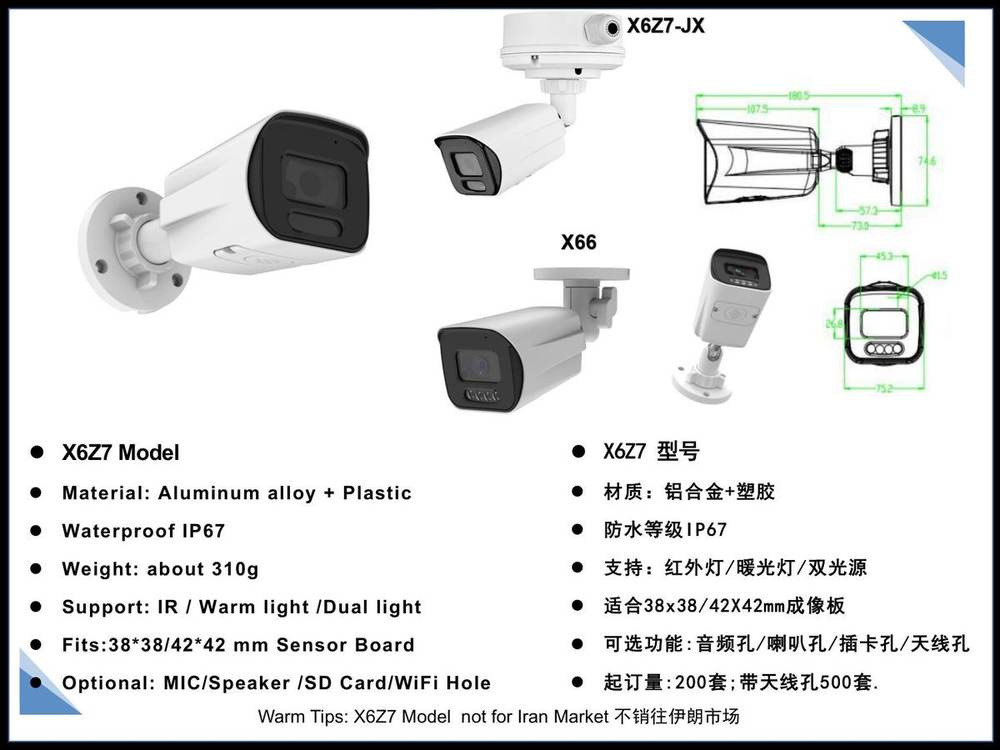

X6Z7-JX X66 Bullet Housing
X6Z7-JX / X66 Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Weight: about 310g
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • Optional: MIC / Speaker / SD card / WiFi hole
  • MOQ: 200 sets (500 with antenna hole)
  • Not for Iran Market

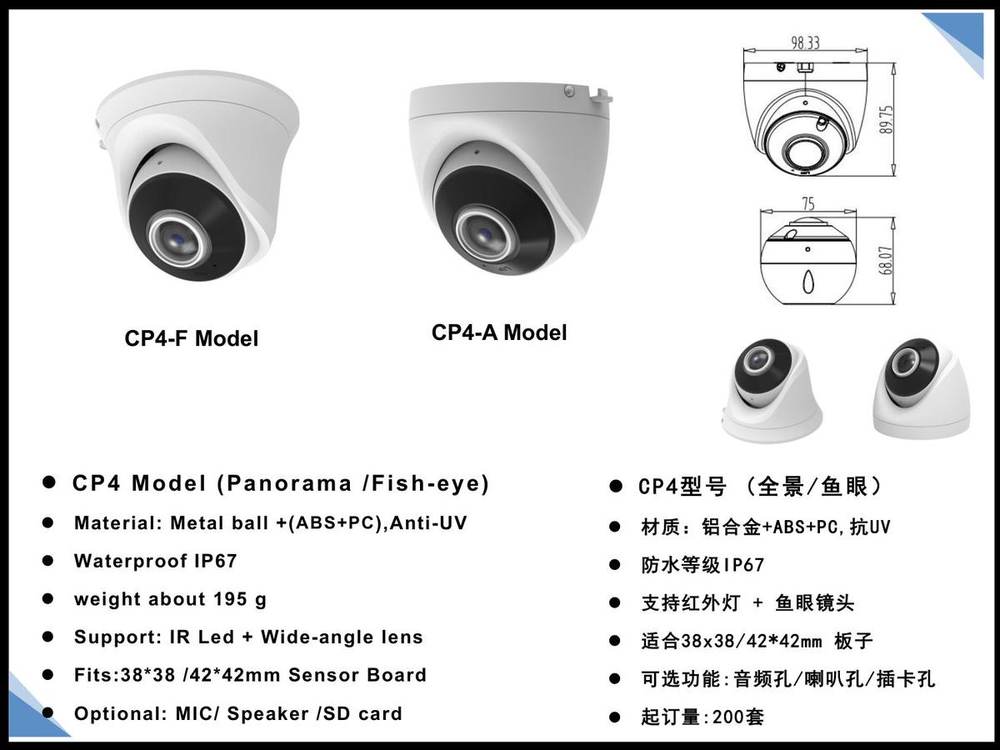

CP4-F CP4-A Panorama Fisheye Housing
CP4-F / CP4-A Fisheye HousingPanorama
  • Material: Metal ball + ABS+PC, anti-UV
  • Protection: IP67
  • Weight: about 195g
  • Light: IR LED + wide-angle lens
  • Fits: 38×38 / 42×42mm board
  • Optional: MIC / Speaker / SD card
  • MOQ: 200 sets

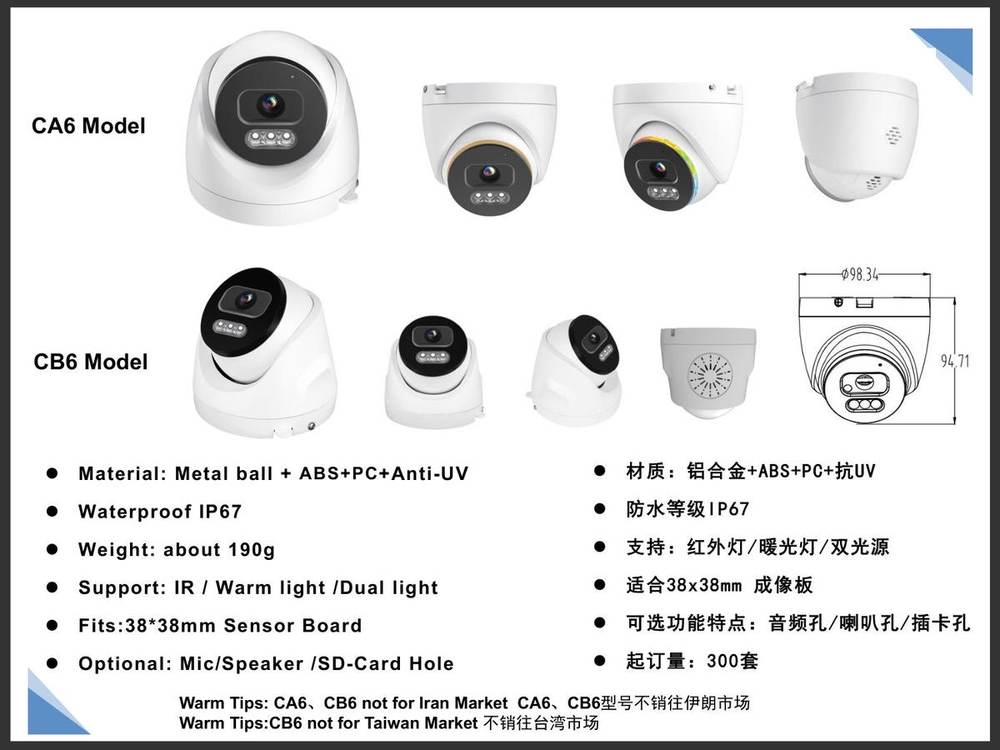

CA6 CB6 Dome Housing
CA6 / CB6 Dome HousingDome
  • Material: Metal ball + ABS+PC, anti-UV
  • Protection: IP67
  • Weight: about 190g
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • Optional: MIC / Speaker / SD-Card hole
  • MOQ: 300 sets
  • CA6 / CB6 not for Iran; CB6 not for Taiwan

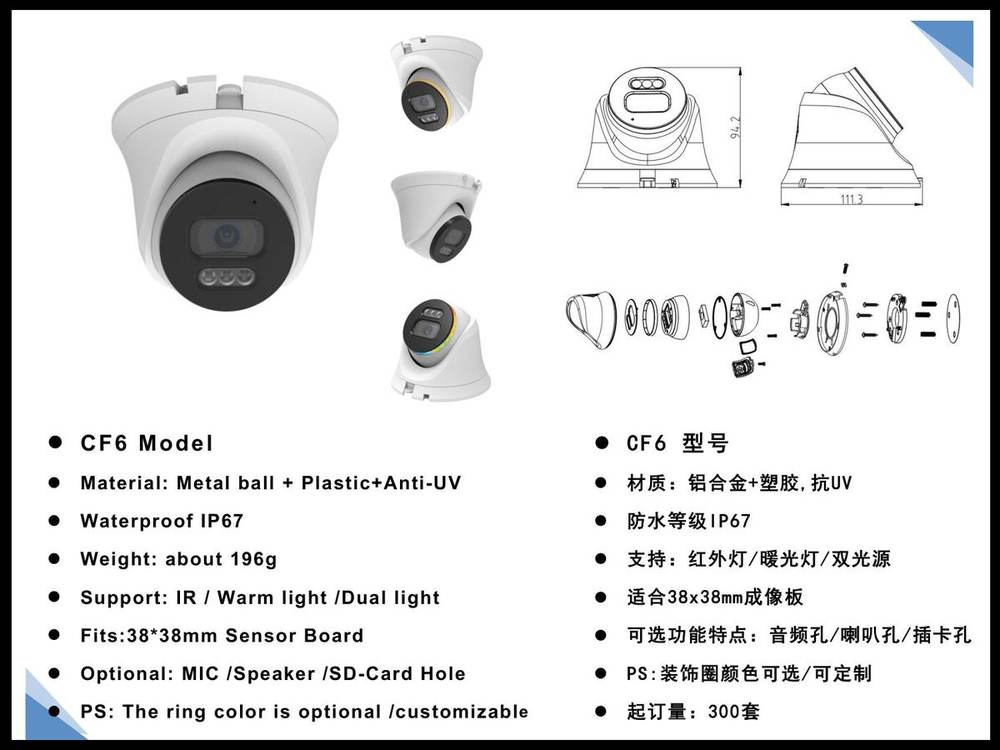

CF6 Dome Housing
CF6 Dome HousingDome
  • Material: Metal ball + Plastic, anti-UV
  • Protection: IP67
  • Weight: about 196g
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • Optional: MIC / Speaker / SD-Card hole
  • Feature: Decorative ring color optional / customizable
  • MOQ: 300 sets

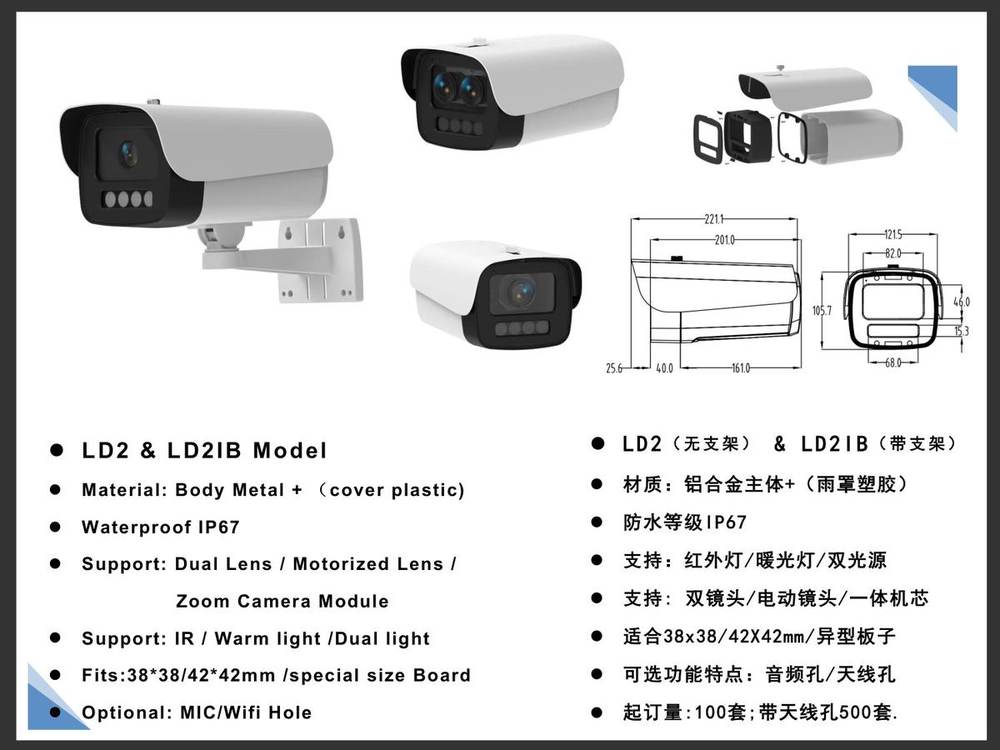

LD2 LD2IB Bullet Housing
LD2 / LD2IB Bullet HousingBullet
  • Material: Metal body + plastic cover
  • Protection: IP67
  • Lens: Dual lens / Motorized / Zoom module
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42 / special-size board
  • Optional: MIC / WiFi hole
  • MOQ: 100 sets (500 with antenna hole)

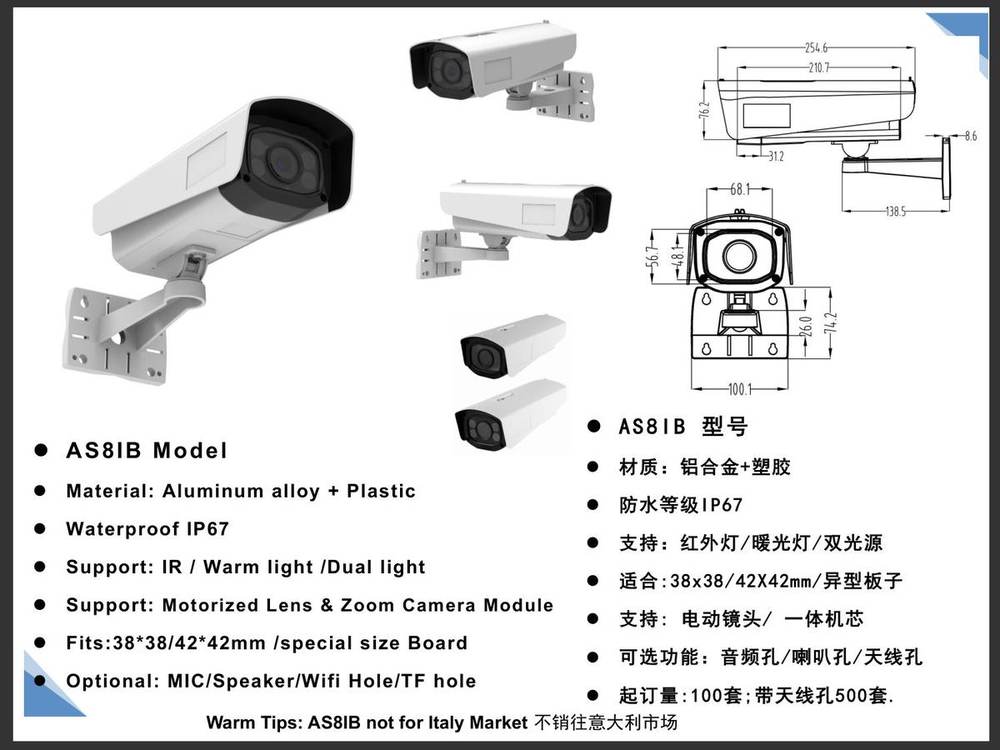

AS8IB Bullet Housing
AS8IB Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Lens: Motorized lens & zoom module
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42 / special-size board
  • Optional: MIC / Speaker / WiFi / TF hole
  • MOQ: 100 sets (500 with antenna hole)
  • Not for Italy Market

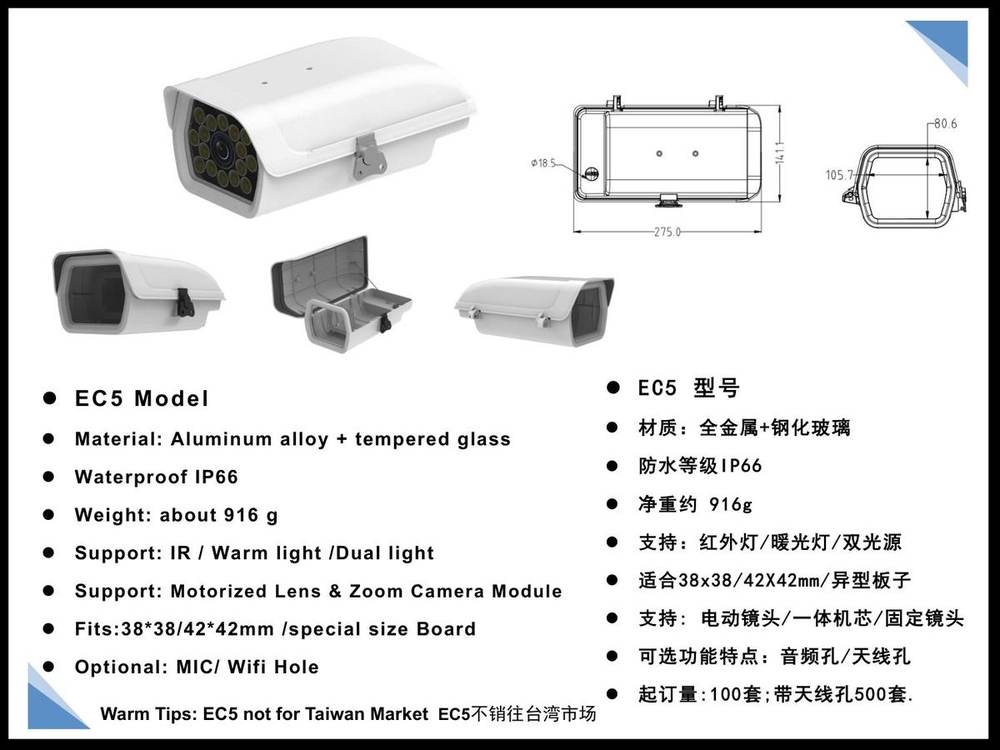

EC5 Camera Enclosure
EC5 Camera EnclosureEnclosure
  • Material: Aluminum alloy + tempered glass
  • Protection: IP66
  • Weight: about 916g
  • Lens: Motorized lens & zoom module
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42 / special-size board
  • Optional: MIC / WiFi hole
  • MOQ: 100 sets (500 with antenna hole)
  • Not for Taiwan Market

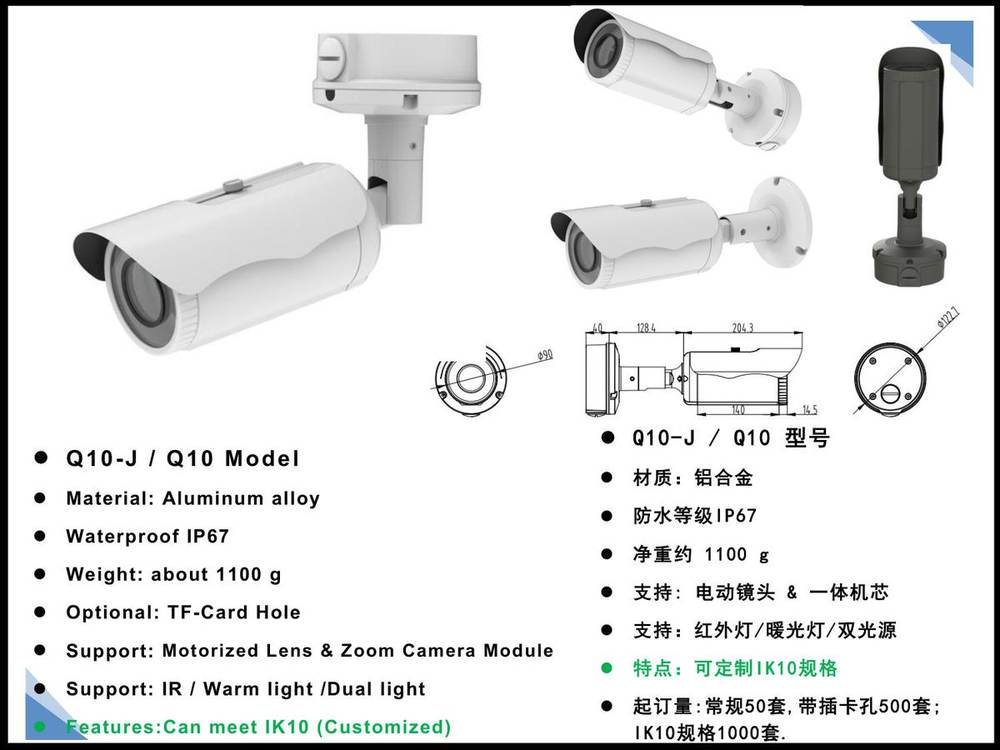

Q10-J Q10 Aluminum Bullet Housing
Q10-J / Q10 Bullet HousingBullet
  • Material: Aluminum alloy
  • Protection: IP67
  • Weight: about 1100g
  • Lens: Motorized lens & zoom camera module
  • Light: IR / Warm / Dual
  • Optional: TF-Card hole
  • Feature: IK10 customizable
  • MOQ: 50 sets regular / 500 with card / 1000 IK10

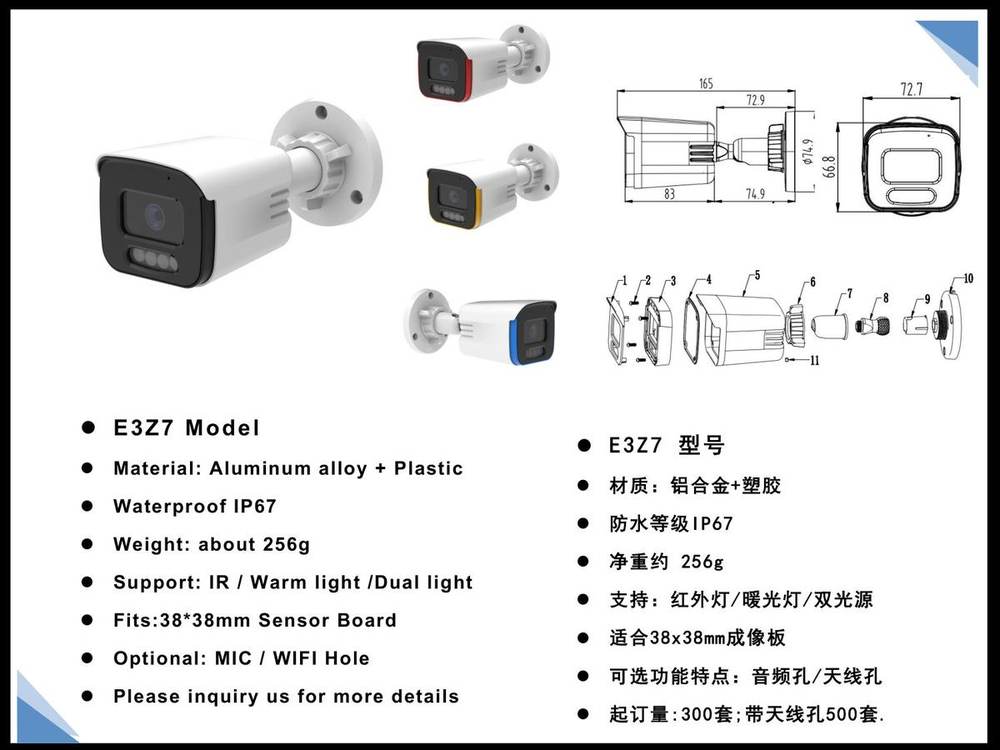

E3Z7 Bullet Housing
E3Z7 Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Weight: about 256g
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • Optional: MIC / WiFi hole
  • MOQ: 300 sets (500 with antenna hole)

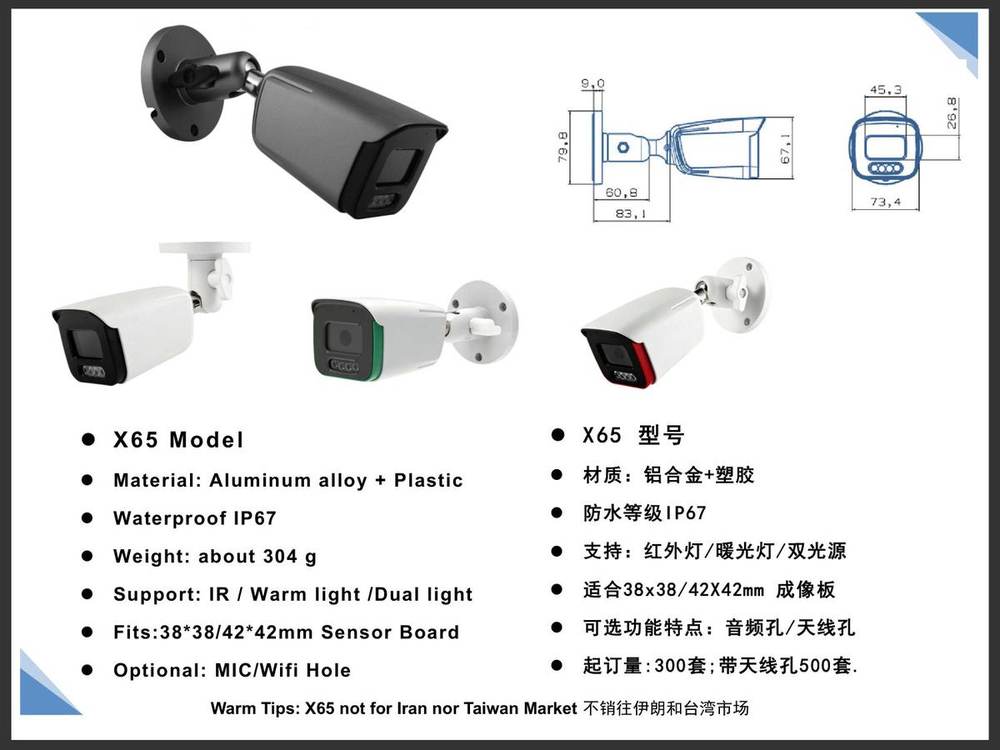

X65 Bullet Housing
X65 Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Weight: about 304g
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • Optional: MIC / WiFi hole
  • MOQ: 300 sets (500 with antenna hole)
  • Not for Iran / Taiwan Market

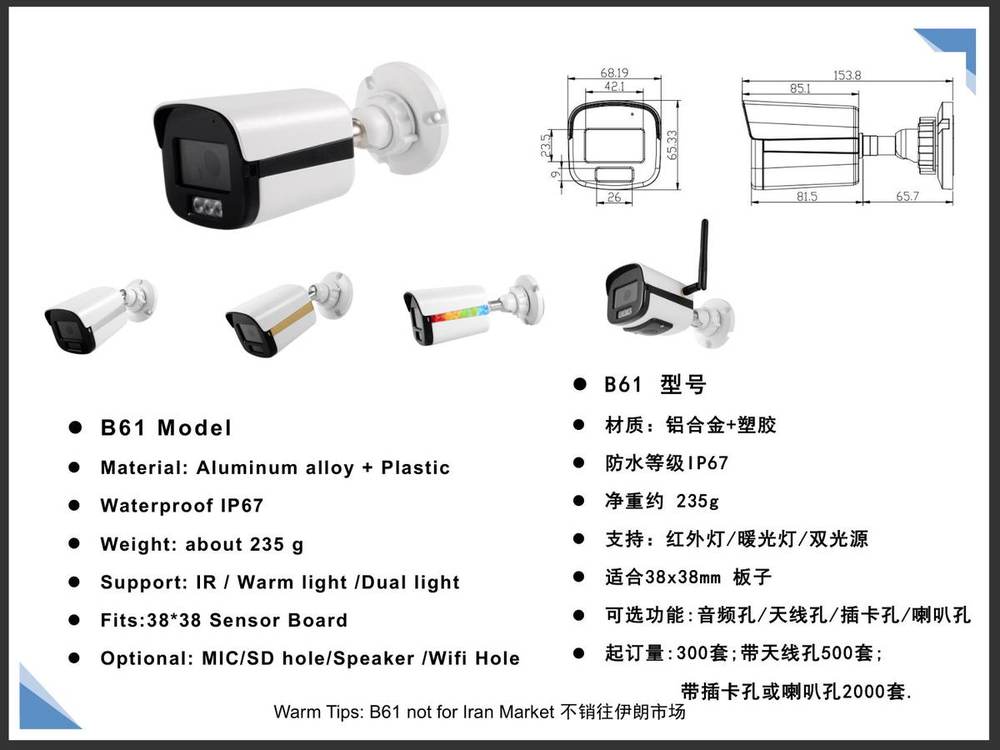

B61 Bullet Housing
B61 Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Weight: about 235g
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • Optional: MIC / SD hole / Speaker / WiFi hole
  • MOQ: 300 sets (500 antenna; 2000 with card/speaker)
  • Not for Iran Market

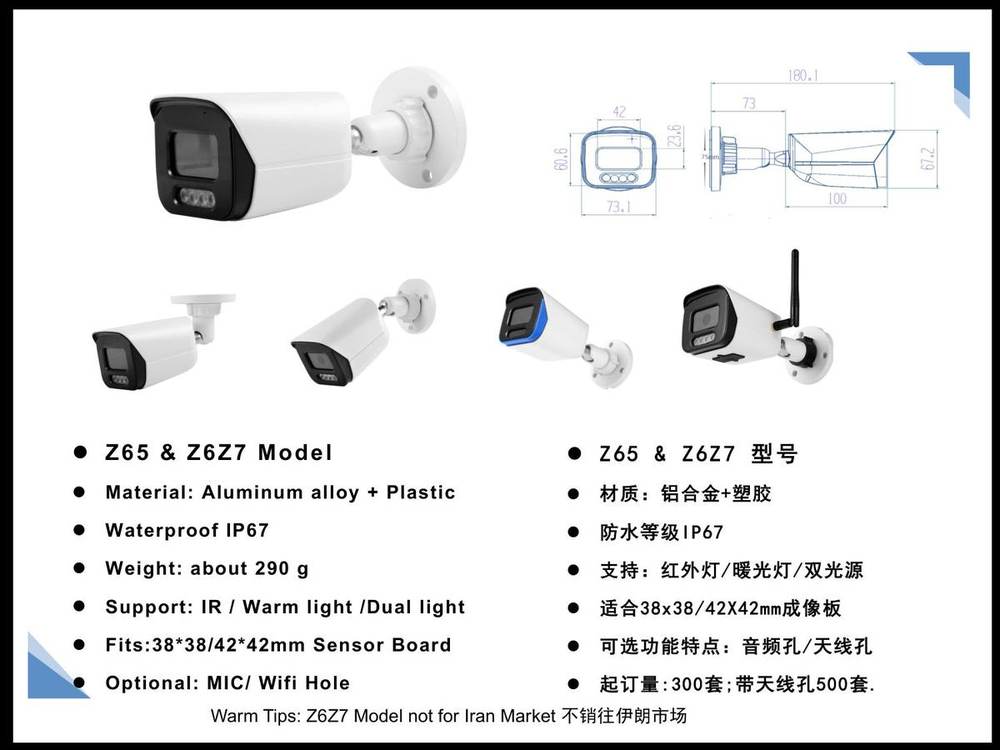

Z65 Z6Z7 Bullet Housing
Z65 / Z6Z7 Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Weight: about 290g
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • Optional: MIC / WiFi hole
  • MOQ: 300 sets (500 with antenna hole)
  • Z6Z7 not for Iran Market

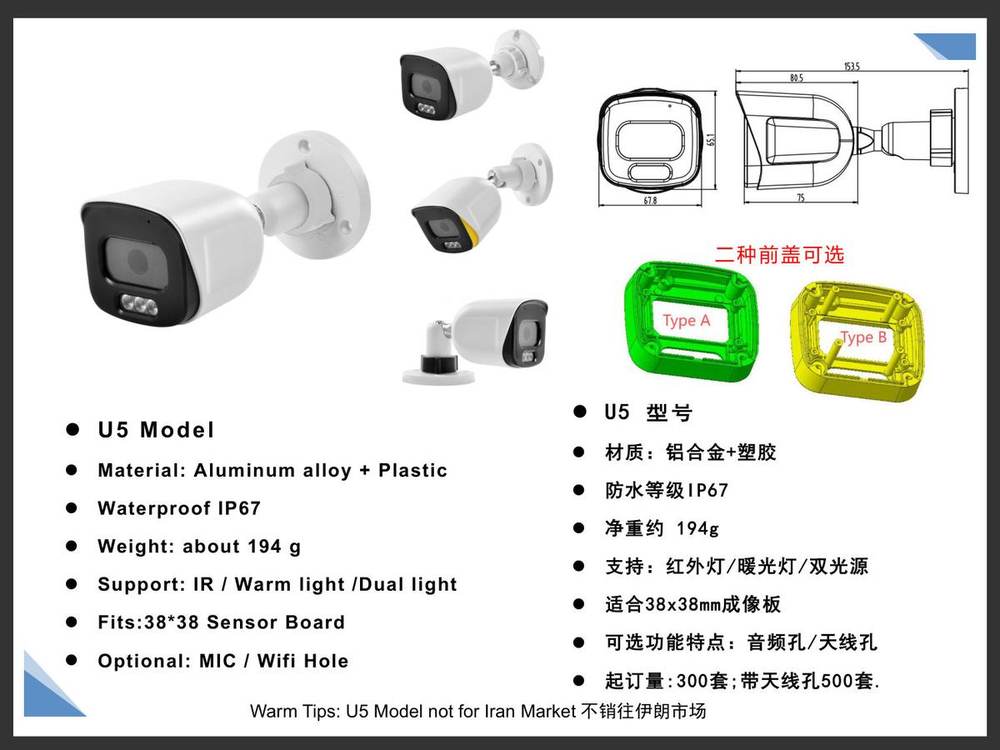

U5 Bullet Housing with Two Front Covers
U5 Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Weight: about 194g
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • Optional: MIC / WiFi hole
  • Feature: Two front covers optional (Type A / B)
  • MOQ: 300 sets (500 with antenna hole)
  • Not for Iran Market

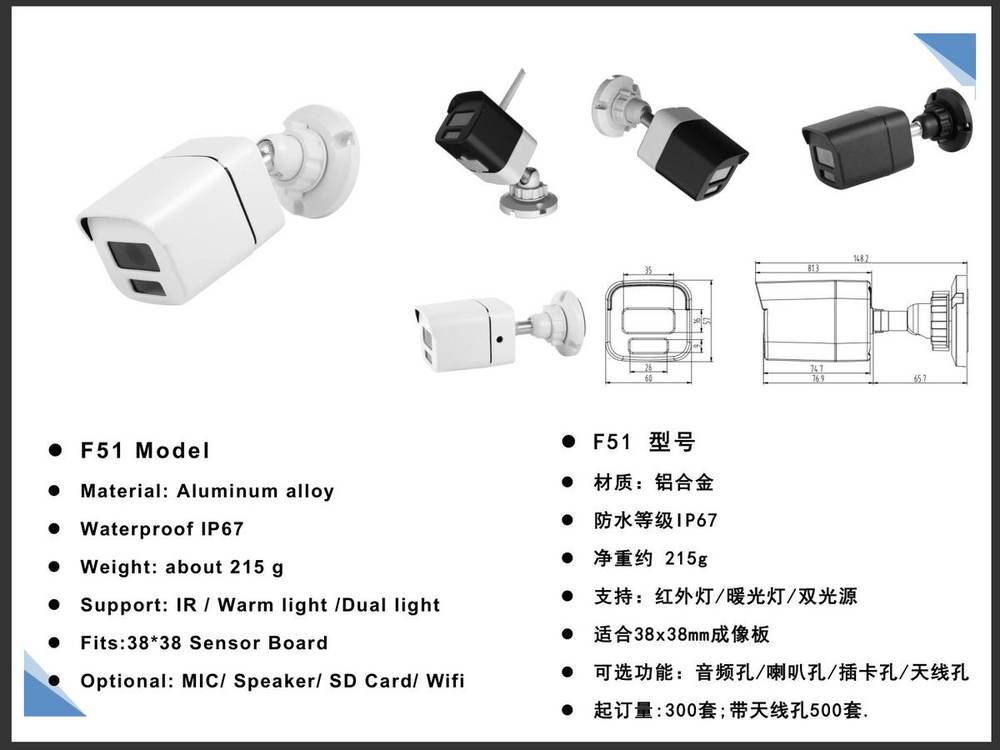

F51 Aluminum Alloy Housing
F51 HousingAluminum
  • Material: Aluminum alloy
  • Protection: IP67
  • Weight: about 215g
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • Optional: MIC / Speaker / SD Card / WiFi
  • MOQ: 300 sets (500 with antenna hole)

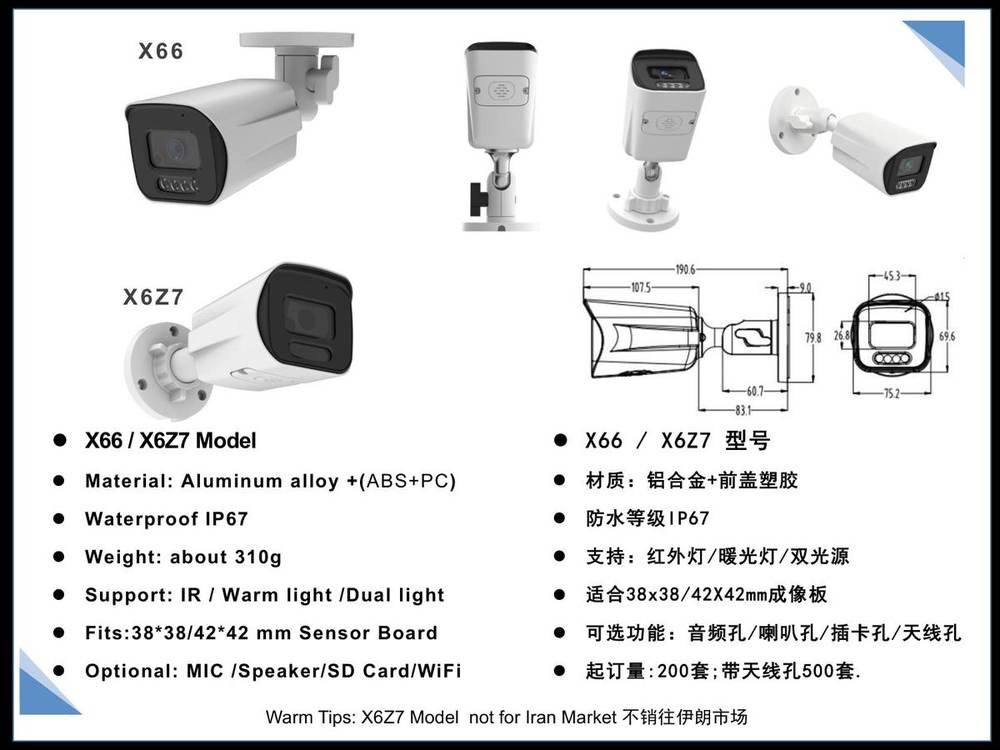

X66 X6Z7 Bullet Housing
X66 / X6Z7 Bullet HousingBullet
  • Material: Aluminum alloy + plastic cover
  • Protection: IP67
  • Weight: about 310g
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • Optional: MIC / Speaker / SD Card / WiFi
  • MOQ: 200 sets (500 with antenna hole)
  • X6Z7 not for Iran Market
F6 F62 Bullet Housing
F6 / F62 Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Weight: about 317g
  • Light: IR / Warm / Dual
  • Lens: Black-light lens / Fixed lens
  • Fits: 38×38 / 42×42mm board
  • Optional: MIC / SD Card / Speaker / WiFi hole
  • MOQ: 3,000 sets

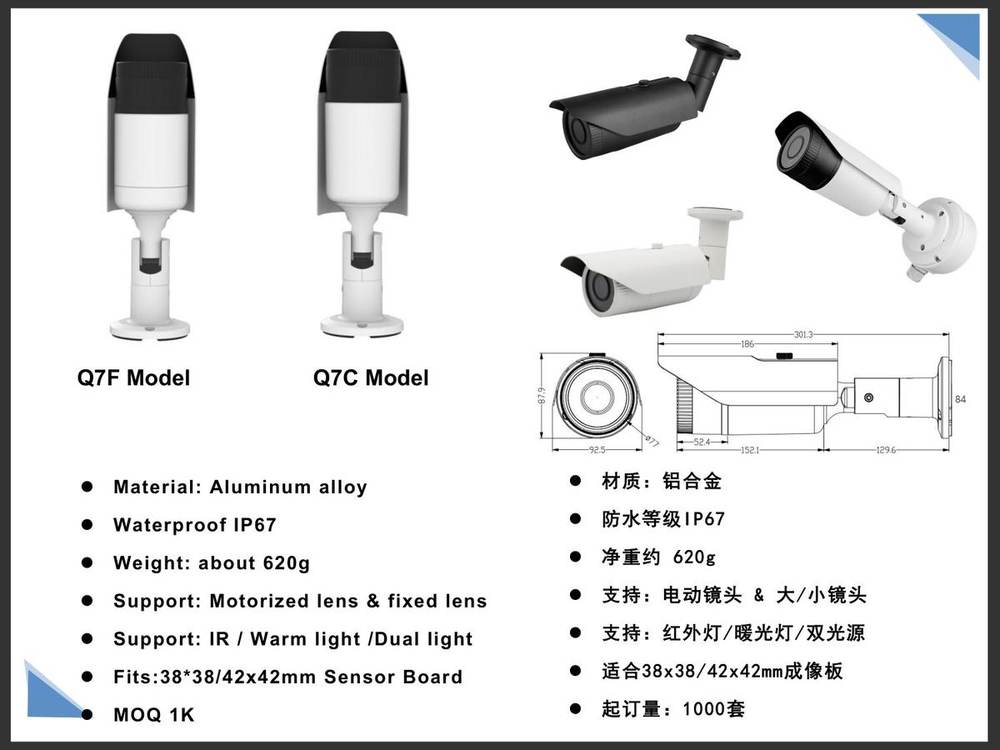

Q7F Q7C Bullet Housing
Q7F / Q7C Bullet HousingBullet
  • Material: Aluminum alloy
  • Protection: IP67
  • Weight: about 620g
  • Lens: Motorized & fixed lens
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • MOQ: 1,000 sets

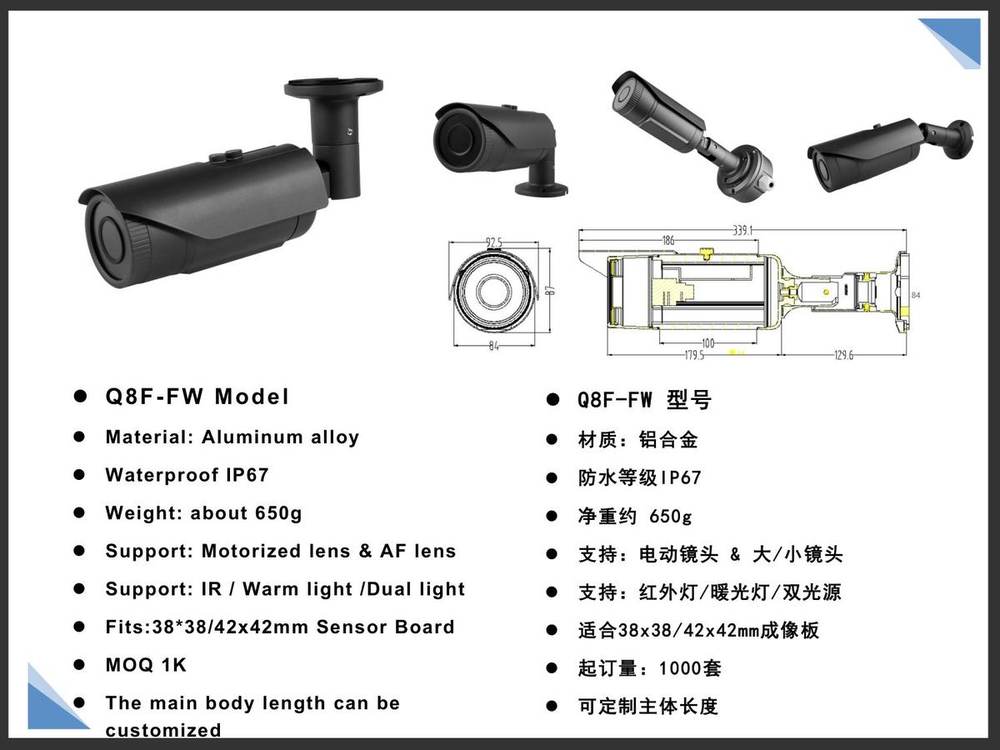

Q8F-FW Bullet Housing
Q8F-FW Bullet HousingBullet
  • Material: Aluminum alloy
  • Protection: IP67
  • Weight: about 650g
  • Lens: Motorized & AF lens
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • Feature: Main body length customizable
  • MOQ: 1,000 sets

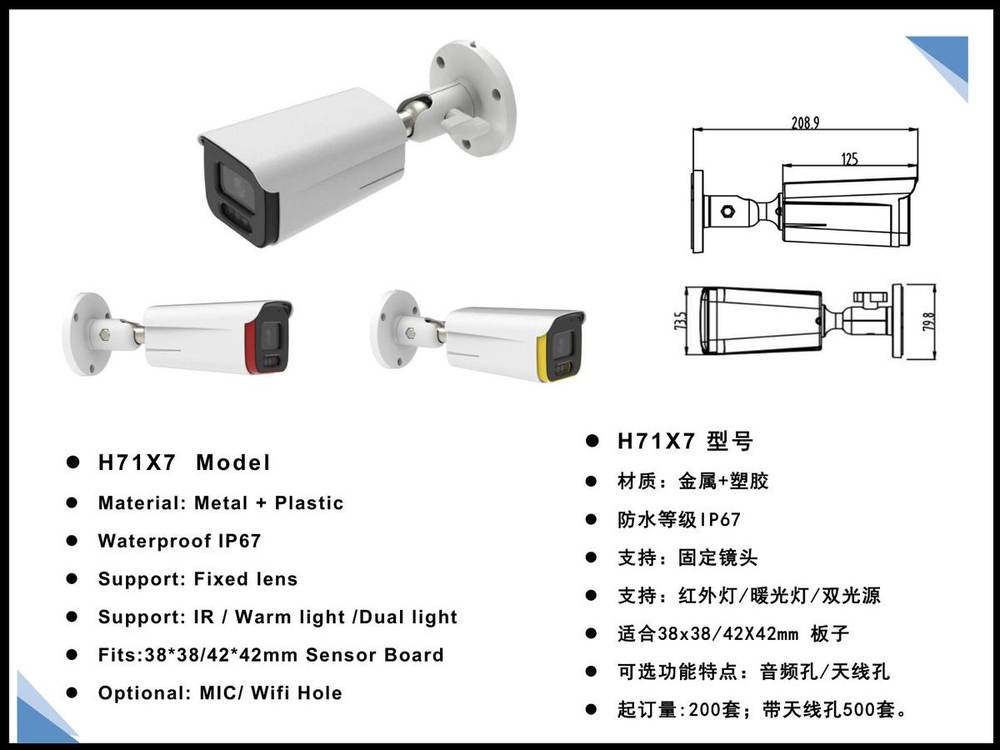

H71X7 Bullet Housing
H71X7 Bullet HousingBullet
  • Material: Metal + Plastic
  • Protection: IP67
  • Lens: Fixed lens
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • Optional: MIC / WiFi hole
  • MOQ: 200 sets (500 with antenna hole)

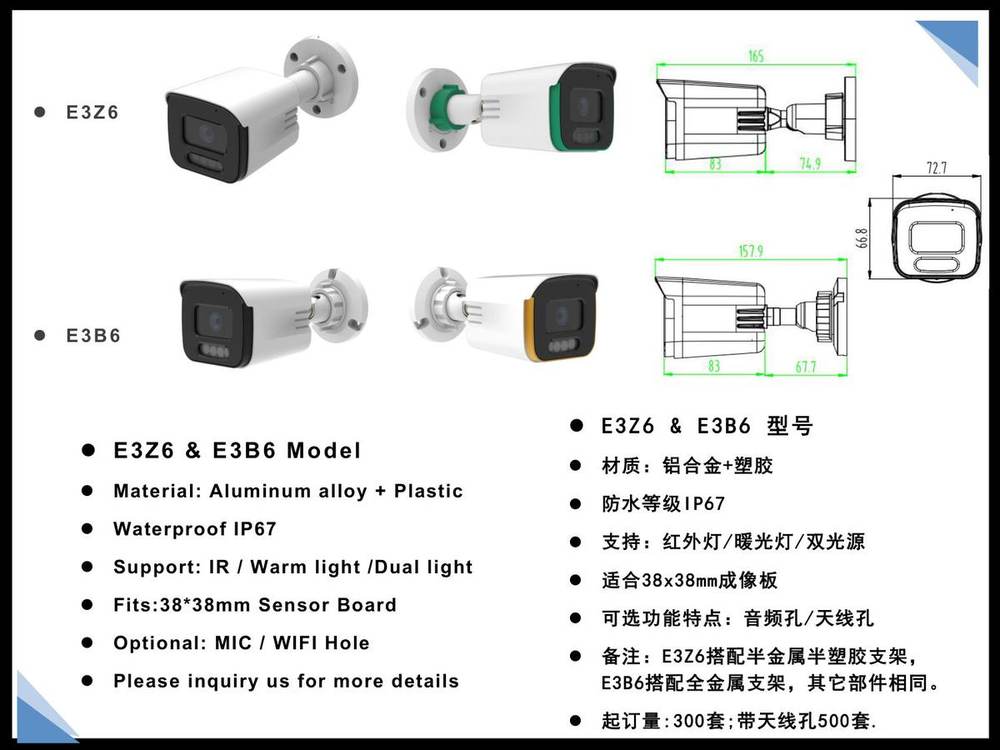

E3Z6 E3B6 Bullet Housing
E3Z6 / E3B6 Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • Optional: MIC / WiFi hole
  • Note: E3Z6 with semi-metal bracket; E3B6 with full-metal bracket
  • MOQ: 300 sets (500 with antenna hole)

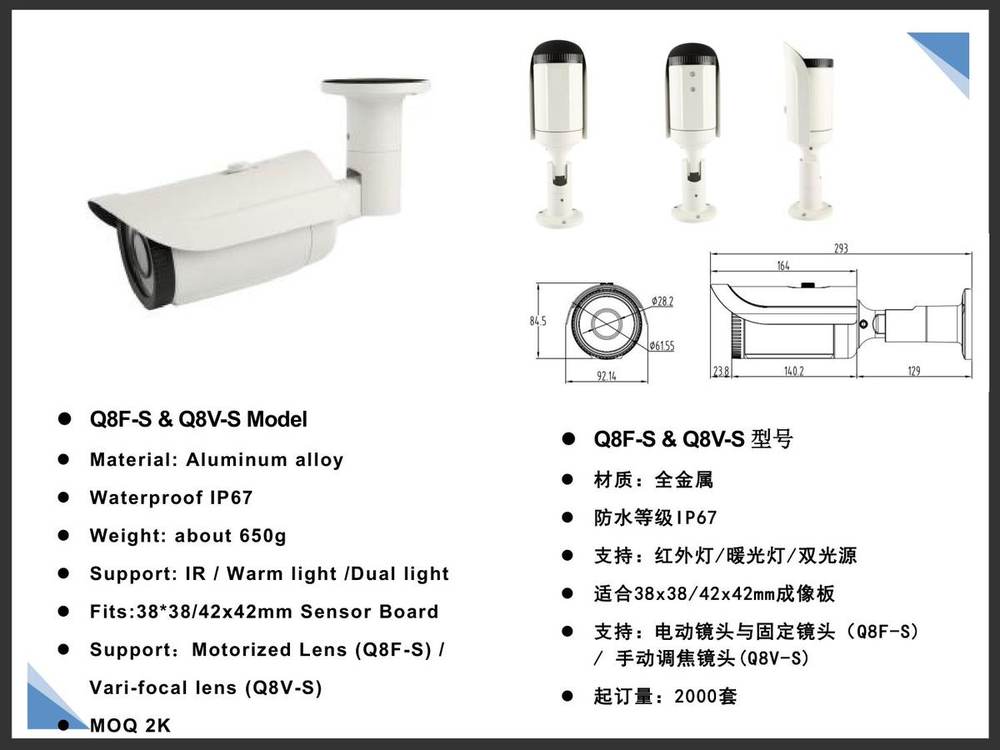

Q8F-S Q8V-S Bullet Housing
Q8F-S / Q8V-S Bullet HousingBullet
  • Material: Full metal
  • Protection: IP67
  • Weight: about 650g
  • Lens: Motorized (Q8F-S) / Vari-focal (Q8V-S)
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • MOQ: 2,000 sets

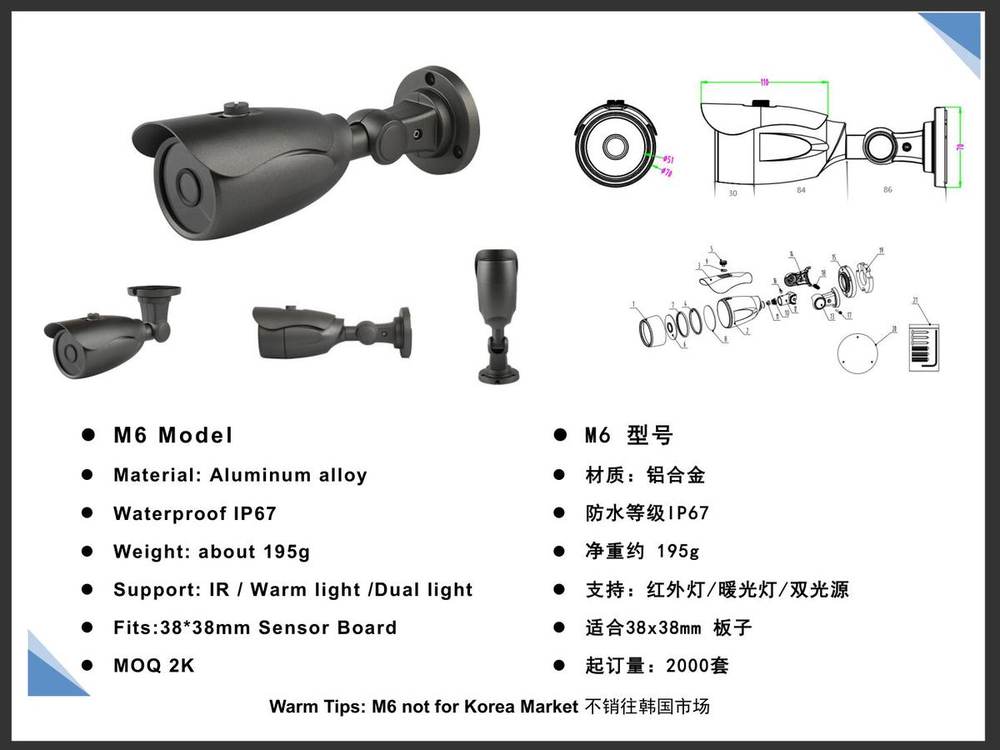

M6 Aluminum Housing
M6 HousingAluminum
  • Material: Aluminum alloy
  • Protection: IP67
  • Weight: about 195g
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • MOQ: 2,000 sets
  • Not for Korea Market

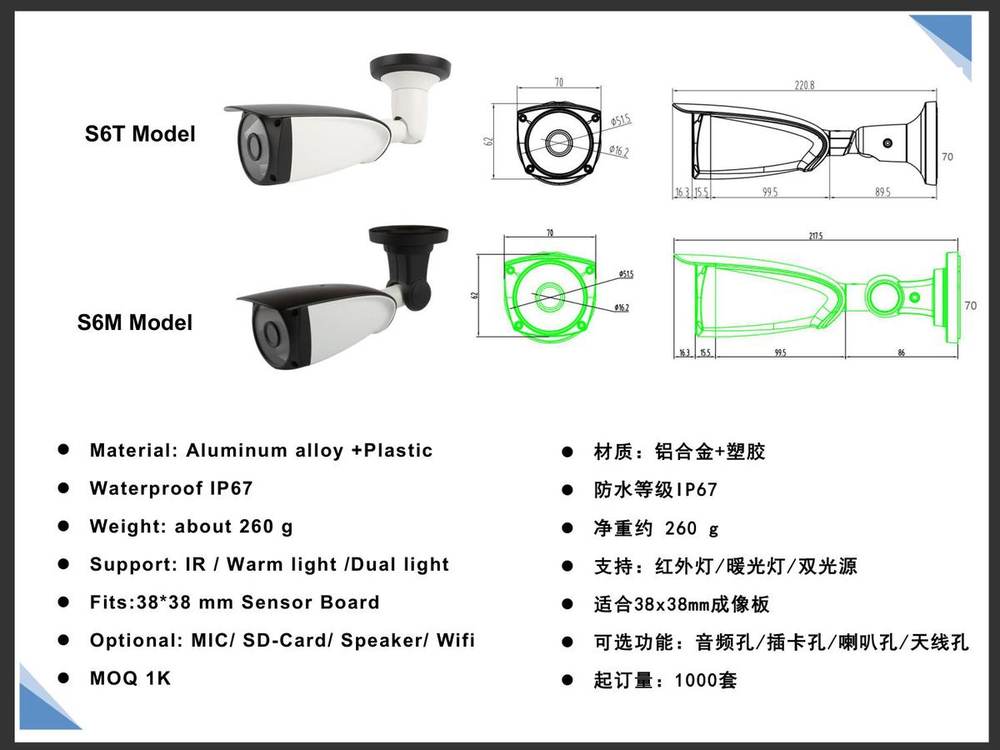

S6T S6M Bullet Housing
S6T / S6M Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Weight: about 260g
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • Optional: MIC / SD-Card / Speaker / WiFi
  • MOQ: 1,000 sets

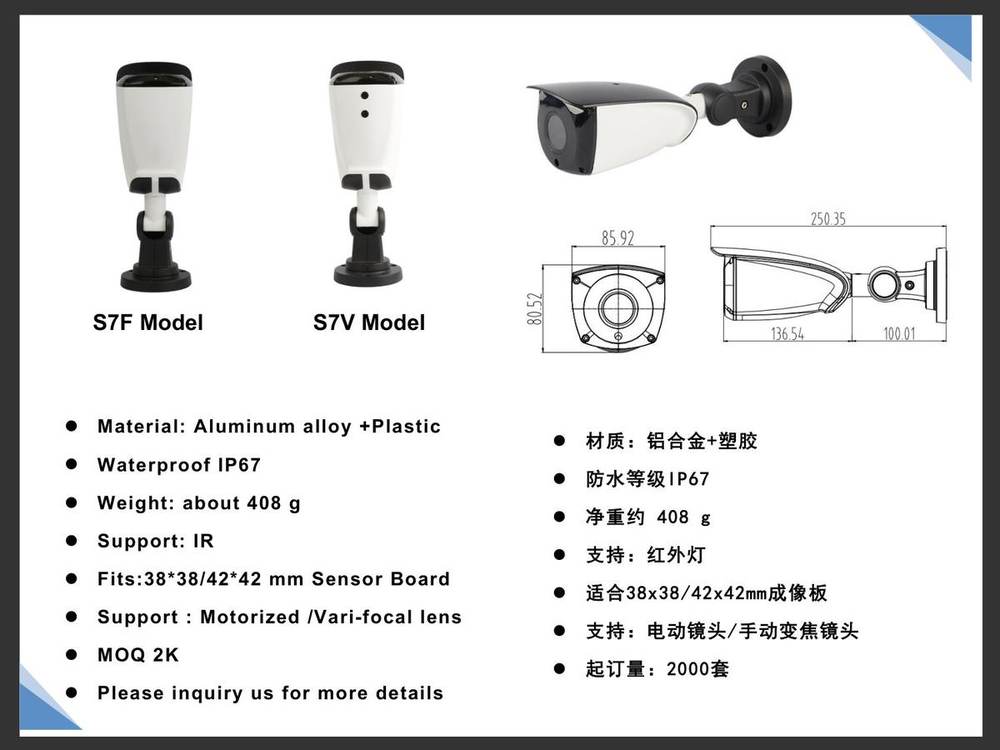

S7F S7V Bullet Housing
S7F / S7V Bullet HousingBullet
  • Material: Aluminum alloy + Plastic
  • Protection: IP67
  • Weight: about 408g
  • Lens: Motorized / Vari-focal
  • Light: IR
  • Fits: 38×38 / 42×42mm board
  • MOQ: 2,000 sets

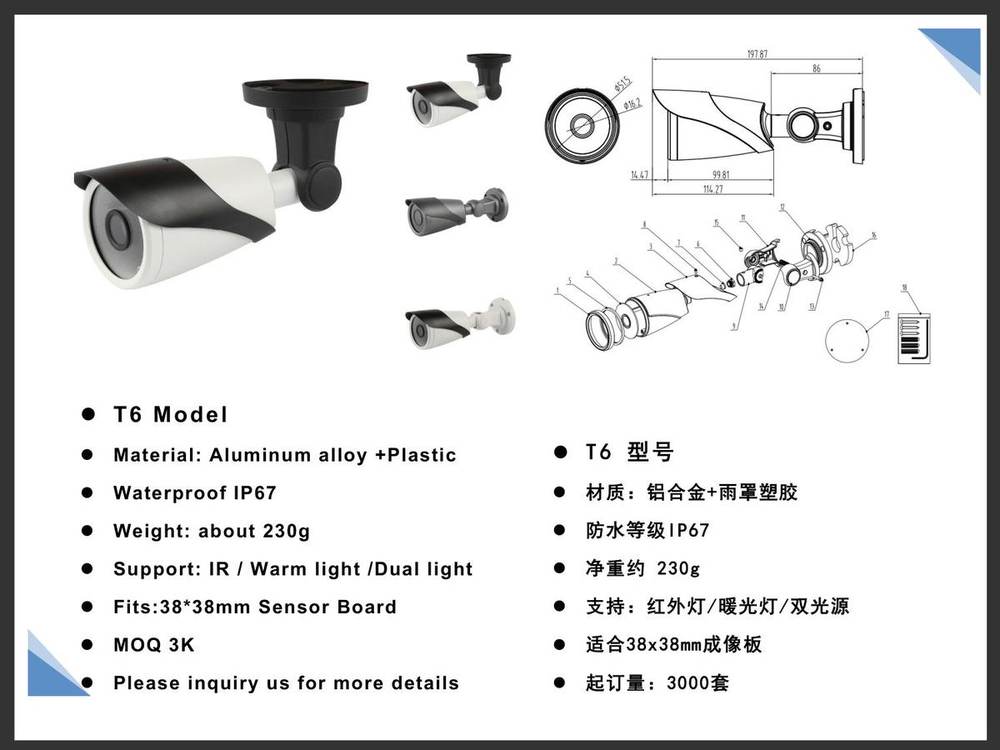

T6 Housing
T6 HousingBullet
  • Material: Aluminum alloy + plastic cover
  • Protection: IP67
  • Weight: about 230g
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • MOQ: 3,000 sets

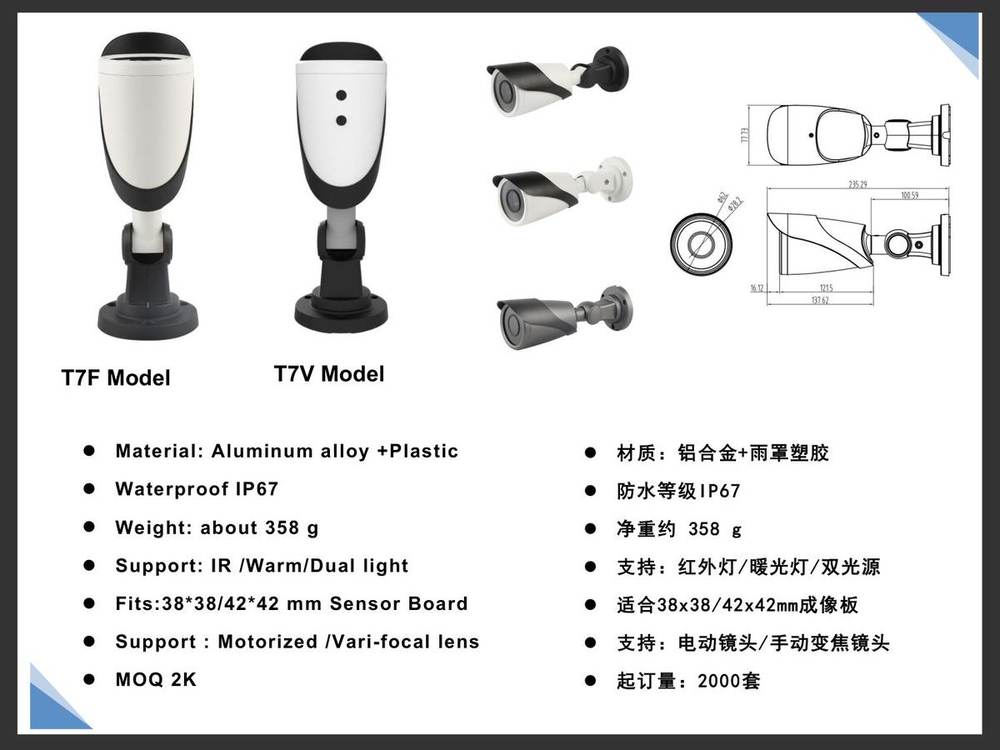

T7F T7V Bullet Housing
T7F / T7V Bullet HousingBullet
  • Material: Aluminum alloy + plastic cover
  • Protection: IP67
  • Weight: about 358g
  • Lens: Motorized / Vari-focal
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • MOQ: 2,000 sets

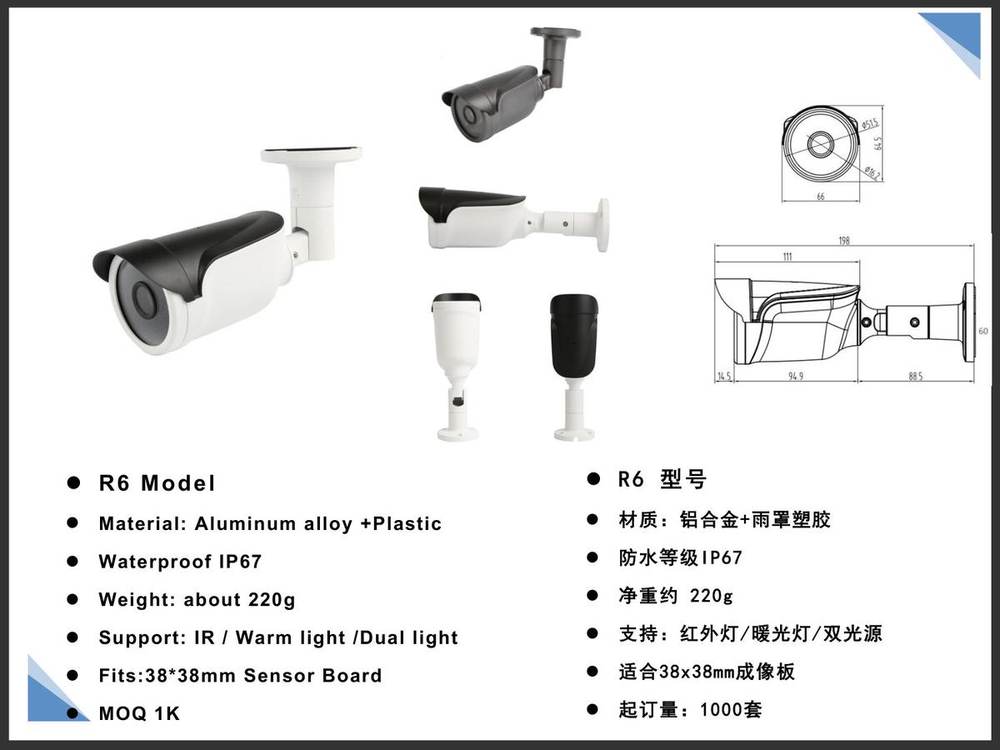

R6 Bullet Housing
R6 Bullet HousingBullet
  • Material: Aluminum alloy + plastic cover
  • Protection: IP67
  • Weight: about 220g
  • Light: IR / Warm / Dual
  • Fits: 38×38mm board
  • MOQ: 1,000 sets

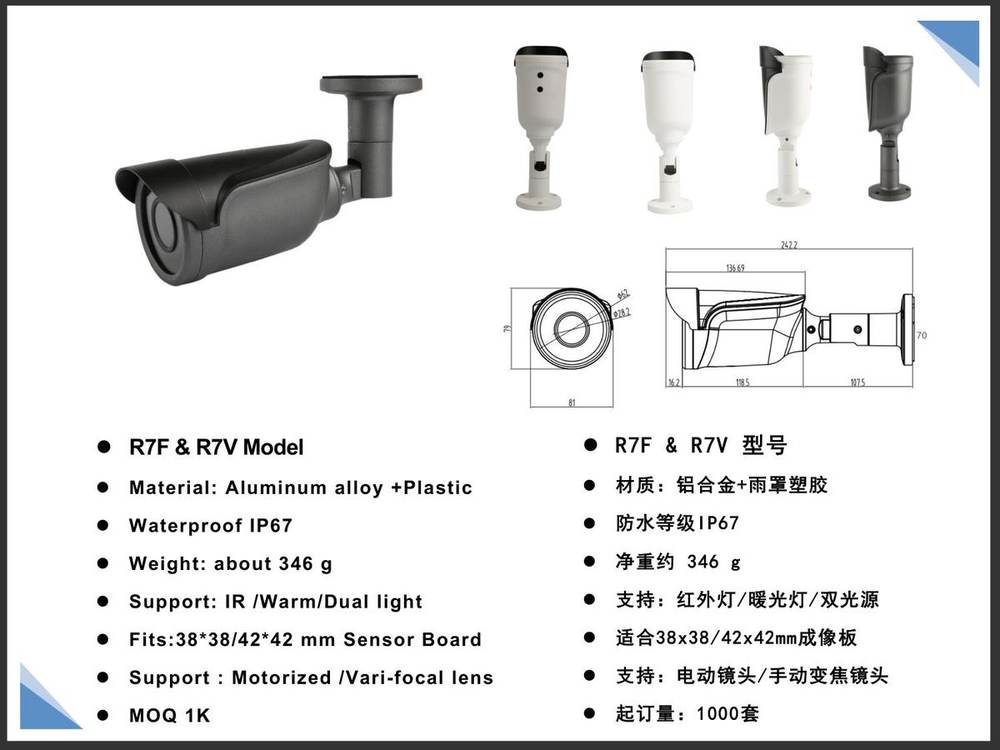

R7F R7V Bullet Housing
R7F / R7V Bullet HousingBullet
  • Material: Aluminum alloy + plastic cover
  • Protection: IP67
  • Weight: about 346g
  • Lens: Motorized / Vari-focal
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • MOQ: 1,000 sets

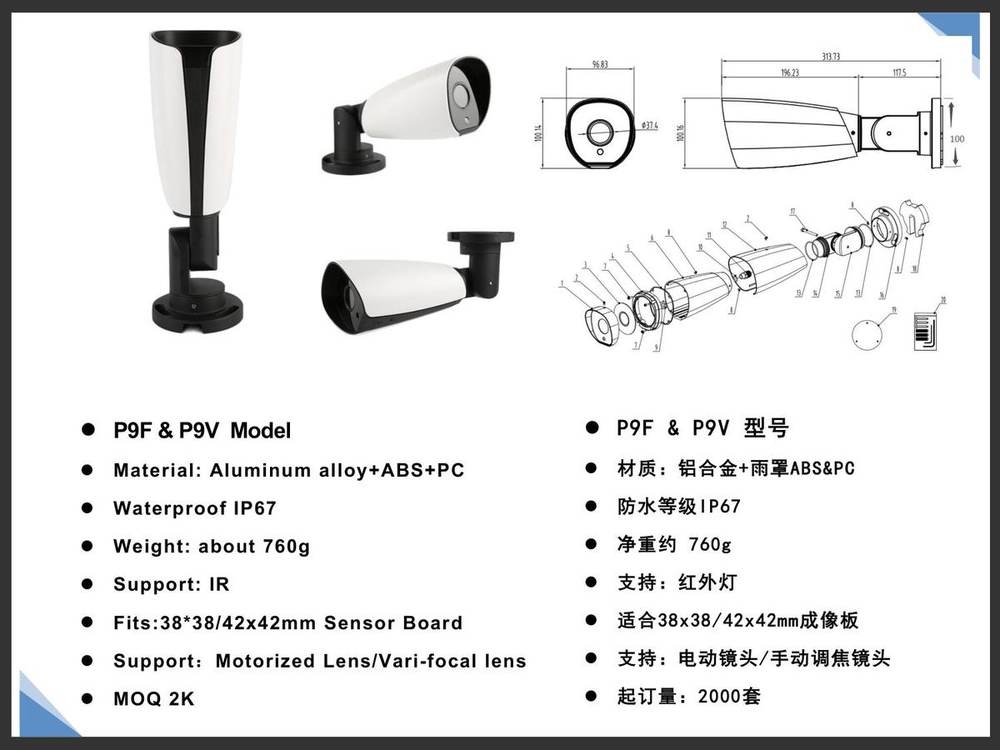

P9F P9V Bullet Housing
P9F / P9V Bullet HousingBullet
  • Material: Aluminum alloy + ABS+PC
  • Protection: IP67
  • Weight: about 760g
  • Lens: Motorized / Vari-focal
  • Light: IR
  • Fits: 38×38 / 42×42mm board
  • MOQ: 2,000 sets

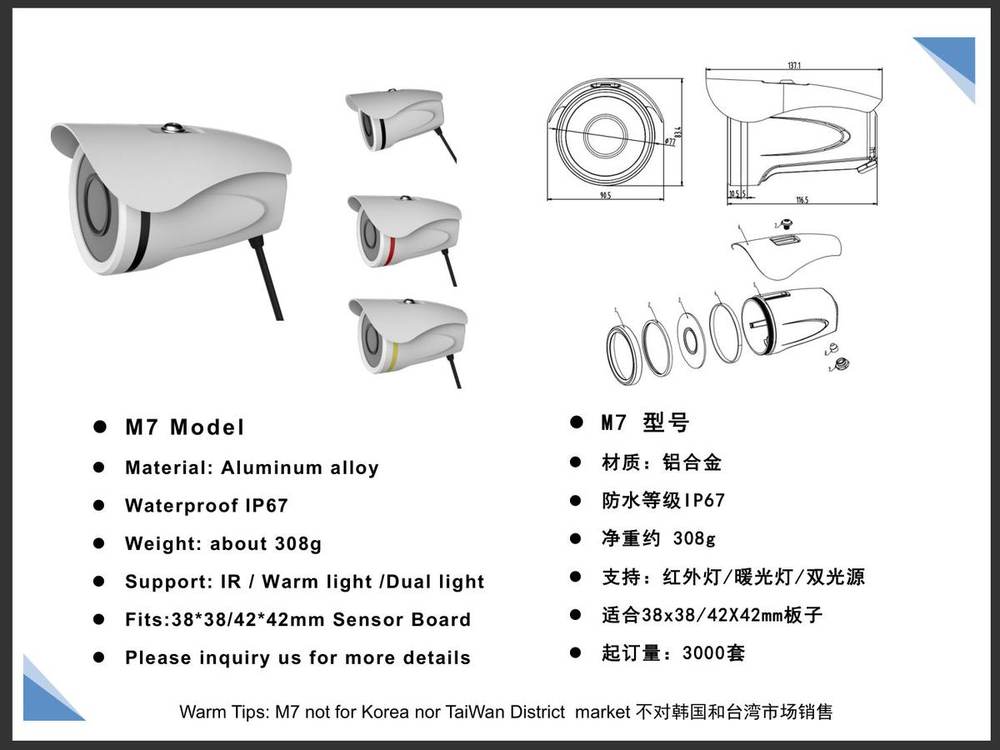

M7 Housing
M7 HousingAluminum
  • Material: Aluminum alloy
  • Protection: IP67
  • Weight: about 308g
  • Light: IR / Warm / Dual
  • Fits: 38×38 / 42×42mm board
  • MOQ: 3,000 sets
  • Not for Korea / Taiwan Market

In-House Mold Capability

Die-casting, injection, extrusion, stamping and silicone molds — designed in-house or from your drawings.

Xzabc Mold Types

Mold Development

  • Die-casting mold
  • Injection mold
  • Aluminum extrusion mold
  • Stamping mold
  • Silicon mold

Our company designs the molds, or clients provide product drawings. Please inquiry us for more details.

Get Your Quote in 24 Hours

Whatever product you need, we've got it covered. Share your idea — we'll make it real. We're here to help.

From a single prototype to million-piece production runs — CNC machining, die casting, stamping, sheet-metal bending, mold making, powder metallurgy and injection molding, all under one roof.
